ATEN CS22HF KVM jungiklis

ATEN 2-Port USB FHD HDMI Cable KVM Switch. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: Full HD, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Plastic, Cable length: 1.2 m. Input voltage: 5 V, Power consumption (typical): 1.518 W. Width: 66.5 mm, Depth: 82.4 mm, Height: 25.2 mm

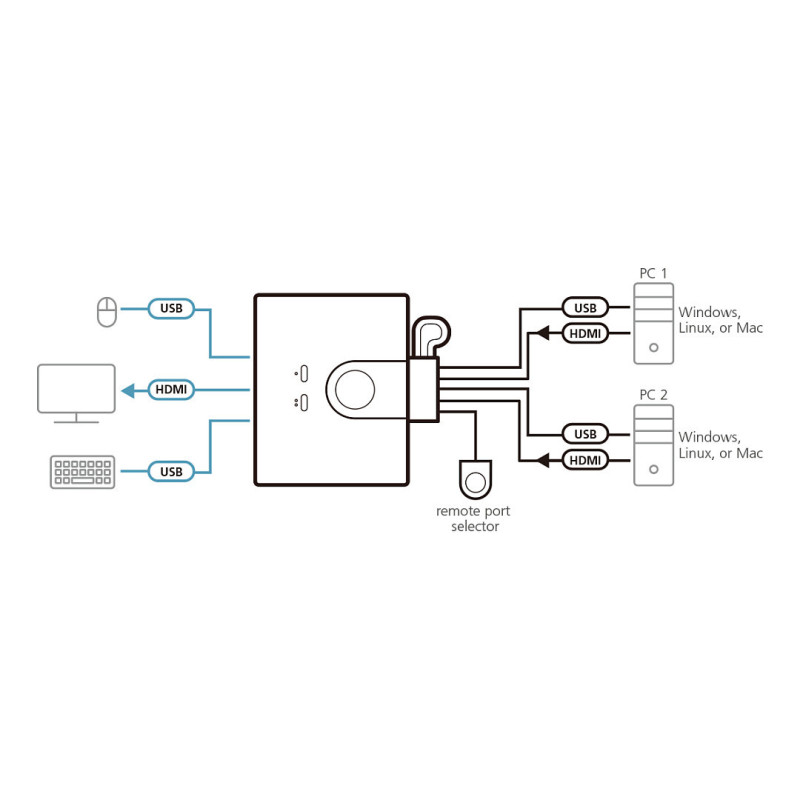

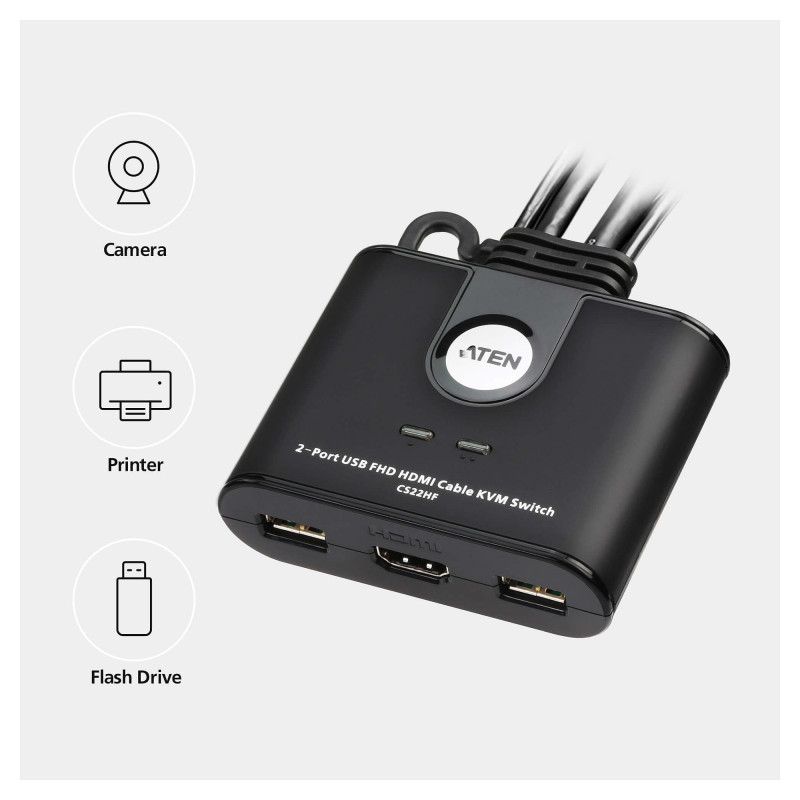

The CS22HF 2-Port USB FHD HDMI Cable KVM Switch is a control unit that allows access to two computers from a single USB and HDMI console while offering video quality up to 1920 x 1080 @ 60 Hz / 1920 x 1200 @ 60 Hz. With the CS22HF, you can quickly and effortlessly switch between two USB HDMI computers via the pushbutton on the remote port selector. The CS22HF supports multiplatform operations which allow you to switch between two different operating system PCs. Moreover, the compact and bus-powered design allows for an efficient and tidy installation, providing an ideal space-saving solution to keep your desk well-organized. This plug and play switch is ideal for people who need quick control to multitask between two computers on a desktop in any environment.

Ports & interfaces

Number of computers controlled: 2
Keyboard port type: USB
Mouse port type: USB
Video port type: HDMI
HDMI ports quantity: 1
Console ports: HDMI, USB A
USB connector type: USB Type-A
Feature: DC-in jack

Performance

HD type: Full HD
Maximum resolution: 1920 x 1200 pixels
Video bandwidth: 60 Hz
Feature: HDCP

Design

Product colour: Black
Housing material: Plastic
Cable length: 1.2 m
Remote switch cable length: 1.8 m
LED indicators: Yes

Power

Input voltage: 5 V
Power consumption (typical): 1.518 W

System requirements

Windows operating systems supported: Yes
Linux operating systems supported: Yes
Mac operating systems supported: Yes

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%
Storage relative humidity (H-H): 0 - 80%

Weight & dimensions

Width: 66.5 mm
Depth: 82.4 mm
Height: 25.2 mm
Weight: 260 g

Packaging data

Package width: 55 mm
Package depth: 155 mm
Package height: 223 mm
Package volume: 1982.18 cm³
Package weight: 360 g
Package type: Box

Packaging content

Packaging content: 1x CS22HF 2-Port USB FHD HDMI Cable KVM Switch1x user instructions

Logistics data

Harmonized System (HS) code: 85176200
Master (outer) case width: 328 mm
Master (outer) case length: 389 mm
Master (outer) case height: 330 mm
Master (outer) case gross weight: 7.9 kg
Master (outer) case volume: 42192.1 cm³
Products per master (outer) case: 20 pc(s)
Country of origin: Taiwan
