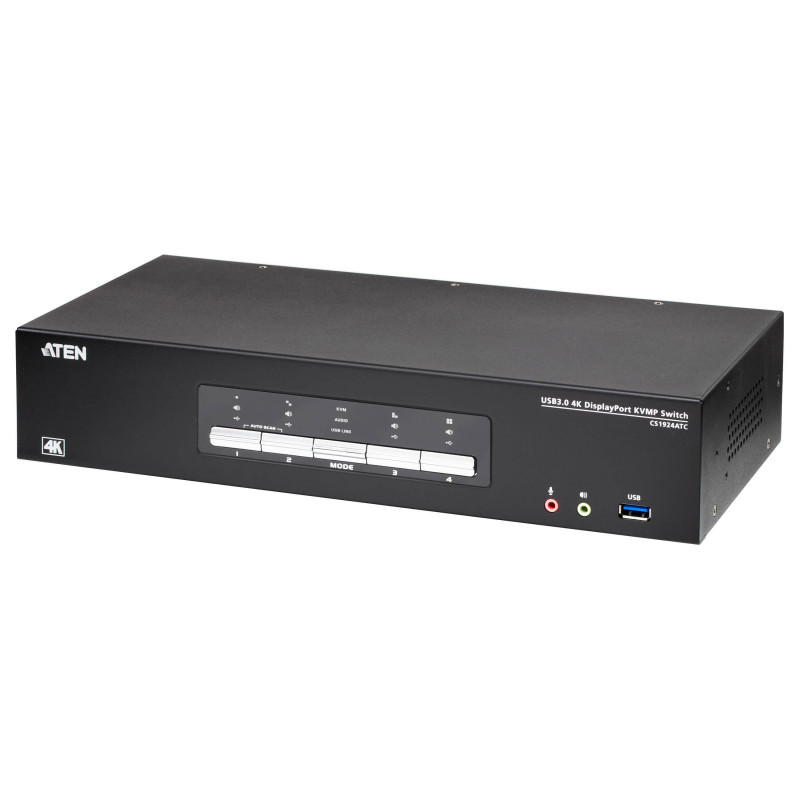

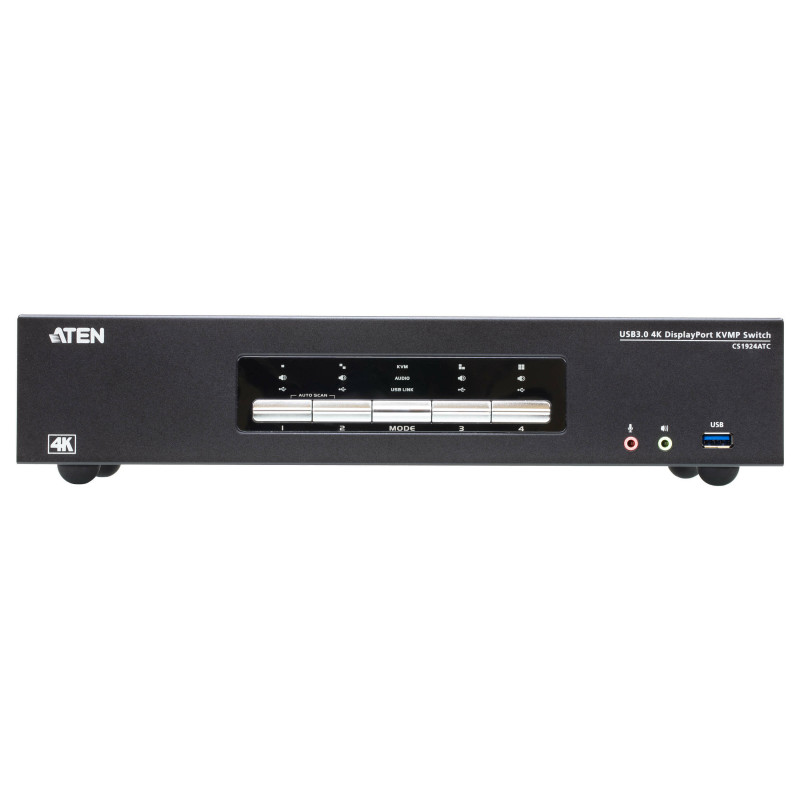

ATEN CS1924ATC KVM komutatorius

ATEN CS1924ATC. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Power source: DC, Input voltage: 12 V, Power consumption (typical): 16.84 W. Width: 161 mm, Depth: 335 mm, Height: 65.5 mm

The ATEN CS1924ATC 4 Port USB 3.0 4K DisplayPort KVMP™ Switch for ATC is tailor-made for Air Traffic Control scenarios. It supports 2Kx2K resolution, making it perfect for radar monitoring, and also enables constant monitoring of flight information and mission-critical processes.

The Zero-Second Switch function ensures nearly real-time switching without any black screens, providing air traffic controllers instant access to four USB / DisplayPort-interfaced ATC computers for crucial operations. Port switching is flexible via pushbuttons, hotkeys, mouse, RS-232 commands, or an optional accessory the remote port selector.

With two lockable DC jacks for power redundancy, the CS1924ATC ensures uninterrupted operation and constant availability for mission-critical applications. It aims to greatly minimize or eliminate the risk of downtime.

Patented ATEN technology - Video DynaSync™, and EDID expert™ , combined with DisplayPort 1.2 and video resolutions up to 4K @ 60 Hz, it delivers optimized display resolution with exceptional detail and clarity in all conditions.

The CS1924ATC creates a safer environment and enhanced operational efficiency for Air Traffic Control Towers, Approach Control Rooms, and Area Control Centers, specifically tailored the air traffic control industry.

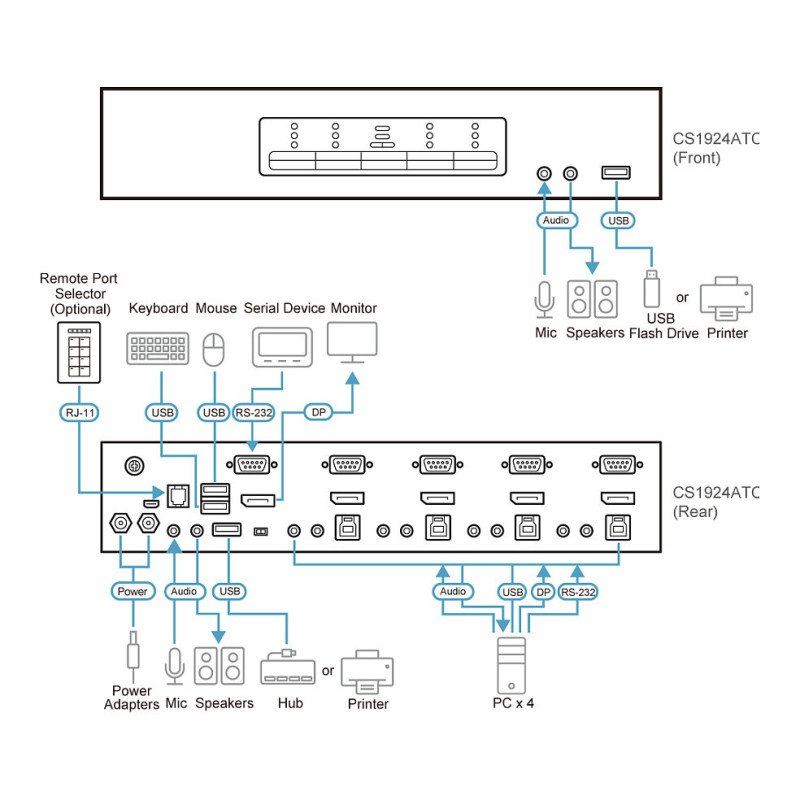

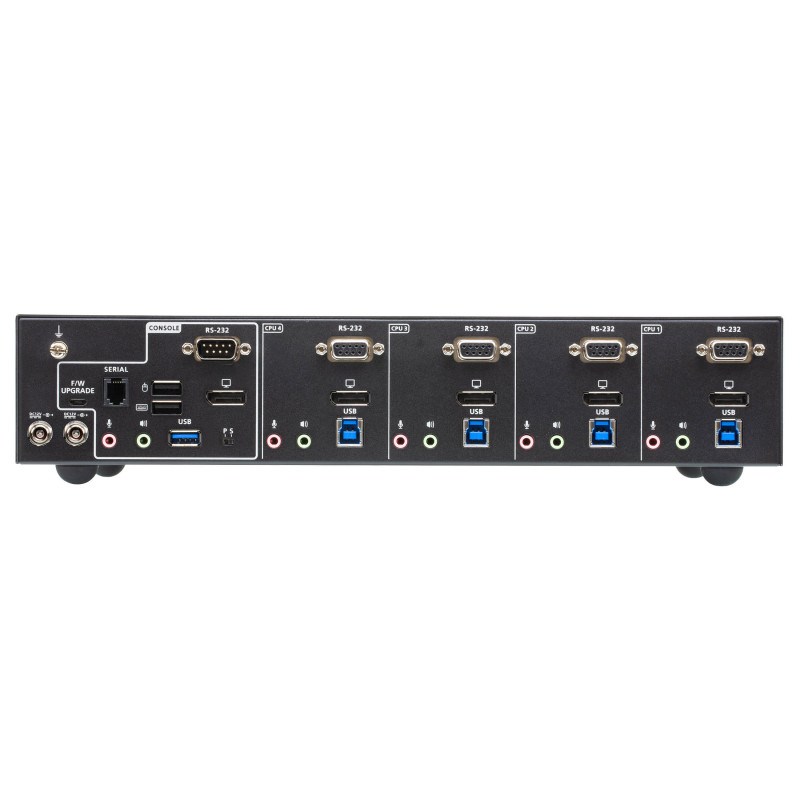

Ports & interfaces

Number of computers controlled: 4
Keyboard port type: USB
Mouse port type: USB
Video port type: DisplayPort
DisplayPorts quantity: 5
Console ports: 3.5mm headphone, 3.5mm mic, DisplayPort, USB A, VGA (D-Sub)
Console USB ports quantity: 2
Console DisplayPorts ports quantity: 1
Feature: USB hub
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 6
USB connector type: Micro-USB, USB Type-A
Feature: Audio connections
Headphone outputs: 6
Number of microphone inputs: 6
RJ-11 ports quantity: 1
Feature: DC-in jack

Performance

HD type: 4K Ultra HD
Maximum resolution: 4096 x 2160 pixels
Video bandwidth: 60 Hz
Feature: Firmware upgradeable

Design

Product colour: Black
Housing material: Metal
LED indicators: Yes
Feature: Push button
Feature: Hot keys

Display

Feature: Built-in display

Power

Power source: DC
Input voltage: 12 V
Power consumption (typical): 16.84 W

Operational conditions

Operating temperature (T-T): 0 - 20 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%

Weight & dimensions

Width: 161 mm
Depth: 335 mm
Height: 65.5 mm
Weight: 1.88 kg

Logistics data

Country of origin: Taiwan
