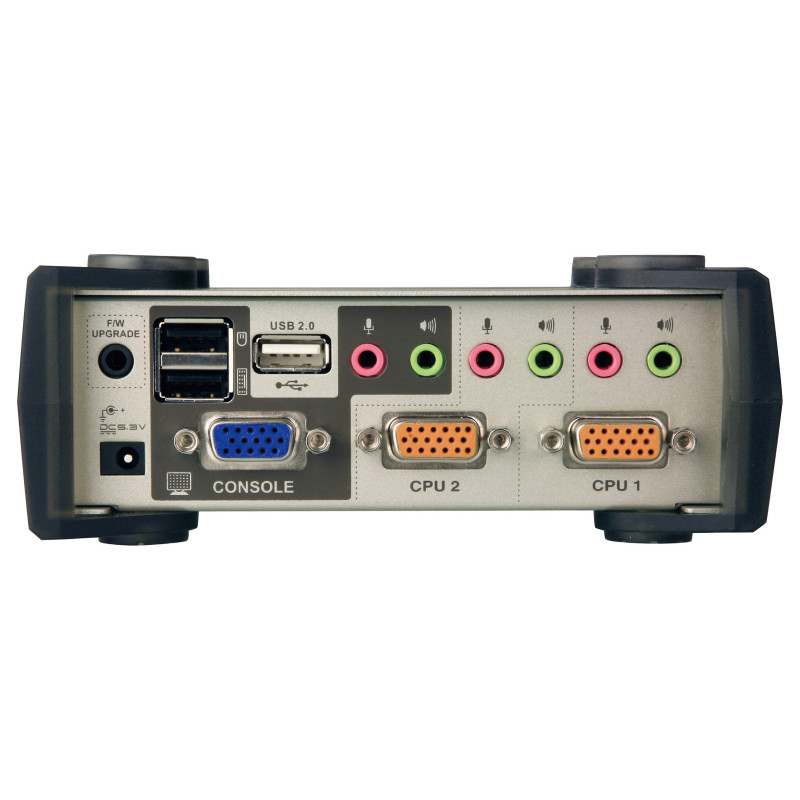

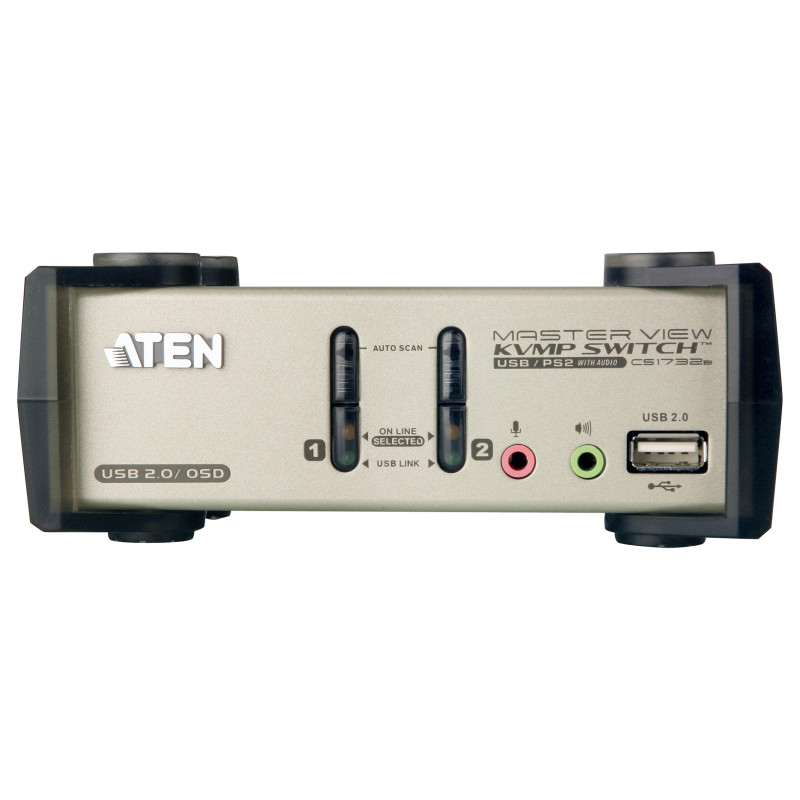

ATEN CS1732B-AT-G KVM komutatorius

ATEN 2-Port USB - PS/2 VGA KVM Switch with Audio & USB 2.0 Hub (KVM Cables included). Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. HD type: QXGA, Maximum resolution: 2048 x 1536 pixels, Video bandwidth: 60 Hz. Product colour: Black, Metallic, Housing material: Metal, Cable length: 1.2 m. Power source: DC, Input voltage: 5.3 V, Power consumption (typical): 2.5 W. Width: 140 mm, Depth: 88 mm, Height: 55.5 mm

The CS1732B is 2-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM switch, it allows users to access two computers from a single keyboard, monitor, and mouse console. There are four methods to obtain instant access to any computer in your installation: Pushbuttons, Hotkeys, OSD, and mouse.
1 x CS1732B 2-Port USB 2.0 KVMP™ Switch
2 x 2L-5301U USB KVM Cables (1.2m)
1 x LIN5-04A2-J13G Firmware Upgrade Cable
1 x 0AD8-1605-24M1 Power Adapter
2 x OSD/Hotkey Stickers
1 x User Instructions

Ports & interfaces

Number of computers controlled: 2
Keyboard port type: USB, PS/2
Mouse port type: USB, PS/2
Video port type: VGA
Console ports: 3.5mm headphone, 3.5mm mic
Feature: USB hub
USB 2.0 Type-A hub ports quantity: 2
Feature: Audio connections
Headphone outputs: 4
Number of microphone inputs: 4
Feature: DC-in jack

Performance

HD type: QXGA
Maximum resolution: 2048 x 1536 pixels
Video bandwidth: 60 Hz
Scan interval: 1,255 s
Feature: DDC2B support
Feature: Firmware upgradeable

Design

Product colour: Black, Metallic
Housing material: Metal
Cable length: 1.2 m
LED indicators: Yes
Feature: Push button
Feature: Hot keys

Display

Feature: On Screen Display (OSD)

Power

Power source: DC
Input voltage: 5.3 V
Power consumption (typical): 2.5 W

System requirements

Windows operating systems supported: Yes
Mac operating systems supported: Yes

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%

Weight & dimensions

Width: 140 mm
Depth: 88 mm
Height: 55.5 mm
Weight: 1.15 kg

Packaging data

Package width: 62 mm
Package depth: 283 mm
Package height: 173 mm
Package weight: 1.34 kg

Packaging content

Cables included: KVM
Feature: Quick installation guide
Feature: Manual

Logistics data

Master (outer) case net weight: 11.5 kg
Harmonized System (HS) code: 85176200
Master (outer) case width: 335 mm
Master (outer) case length: 582 mm
Master (outer) case height: 195 mm
Master (outer) case gross weight: 14.2 kg
Products per master (outer) case: 10 pc(s)
