ATEN CE775 AV ilgintuvas

ATEN CE775. Type: AV transmitter & receiver, Maximum resolution: 1920 x 1200 pixels, Cable types supported: Cat5e. Audio input: 3.5mm, Audio output: 3.5mm. Operating voltage: 5.3 V. Dimensions (WxDxH): 75.8 x 200 x 42 mm, Weight: 690 g

ATEN CE775 Dual View KVM Extenders with Deskew function allows access to a computer system from a remote Dual View console up to 300 m away. The dual view function provides support for two displays, allowing the video output to seamlessly display on two monitors. Its advanced PC Wake - Up feature that allows you simply uses a pushbutton from the remote dual view console to wake a PC at the local site via RS-232, no need to go to the local site to wake up the PC. It eliminates the need for traveling back and forth between the local computer and remote console, effi cient and flexible.

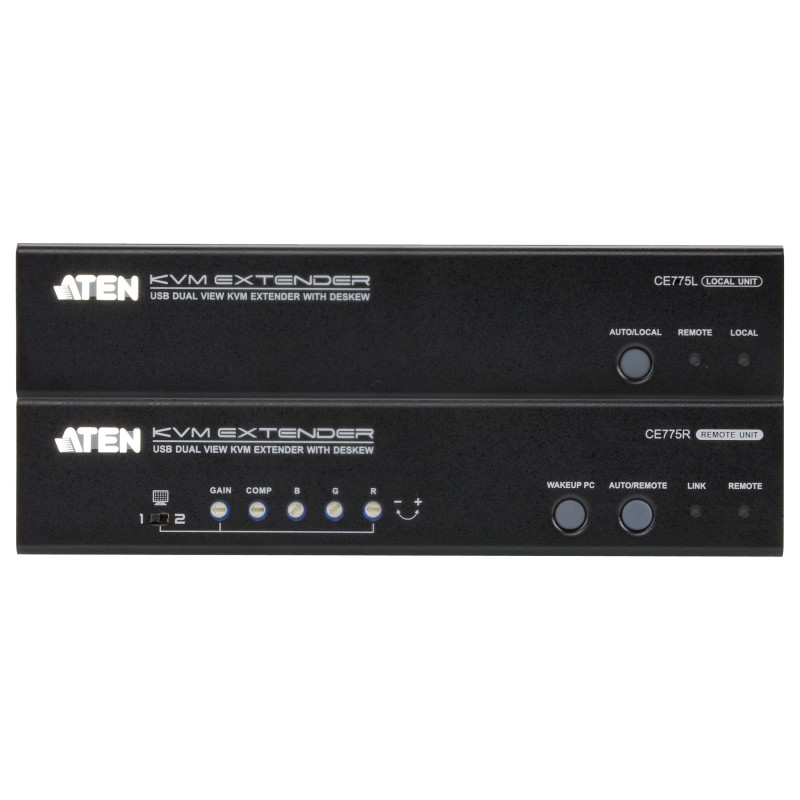

Use the improved built-in front panel tuners to easily adjust the picture quality. In addition, you can automatically synchronize the time delay of RGB signals in order to compensate for distance, easy and fast than ever.

Features

Type: AV transmitter & receiver
Maximum resolution: 1920 x 1200 pixels
Cable types supported: Cat5e
Maximum transfer distance: 300 m
Audio system: Multichannel
LED indicators: Yes
Product colour: Black

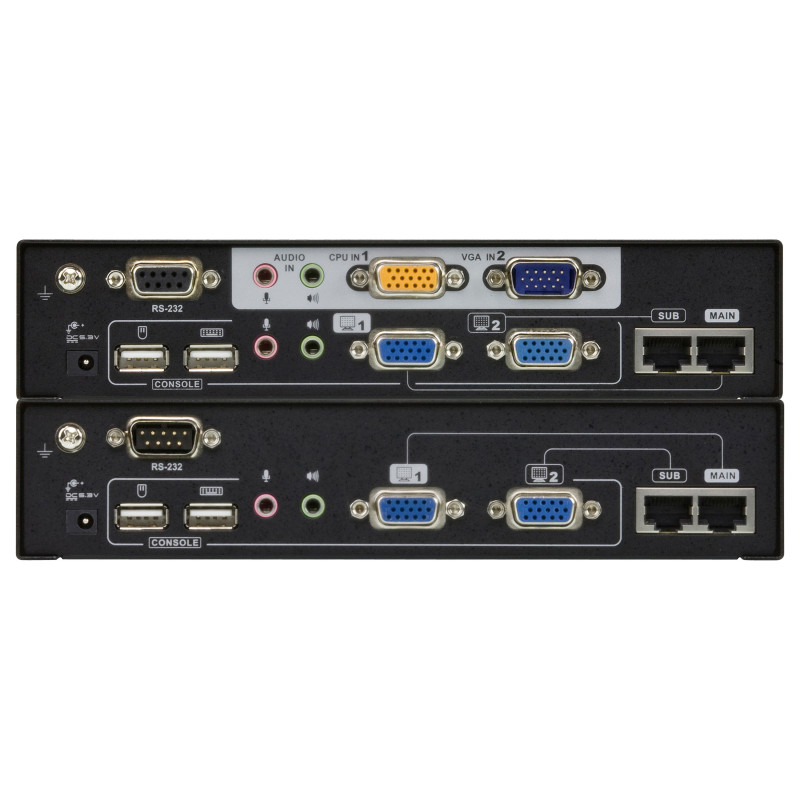

Ports & interfaces

RJ-45 input ports: 2
RJ-45 output ports: 2
VGA (D-Sub) input ports: 4
Audio input: 3.5mm
Audio output: 3.5mm
Feature: DC-in jack

Power

Operating voltage: 5.3 V
Feature: External power adapter

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%

Weight & dimensions

Dimensions (WxDxH): 75.8 x 200 x 42 mm
Weight: 690 g

Technical details

Connector type: USB, SPHD-17, RS-232
