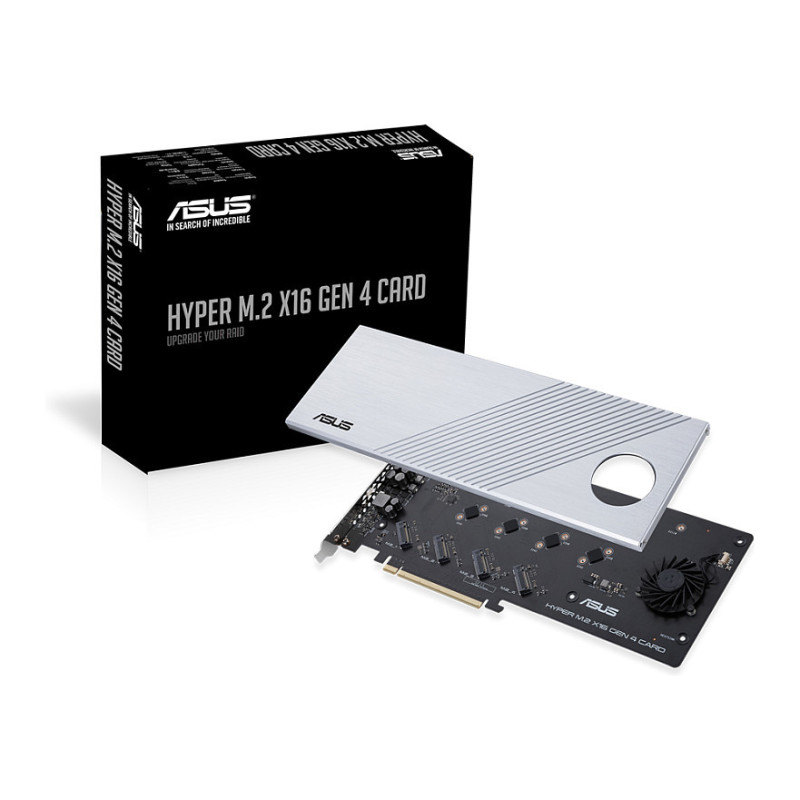

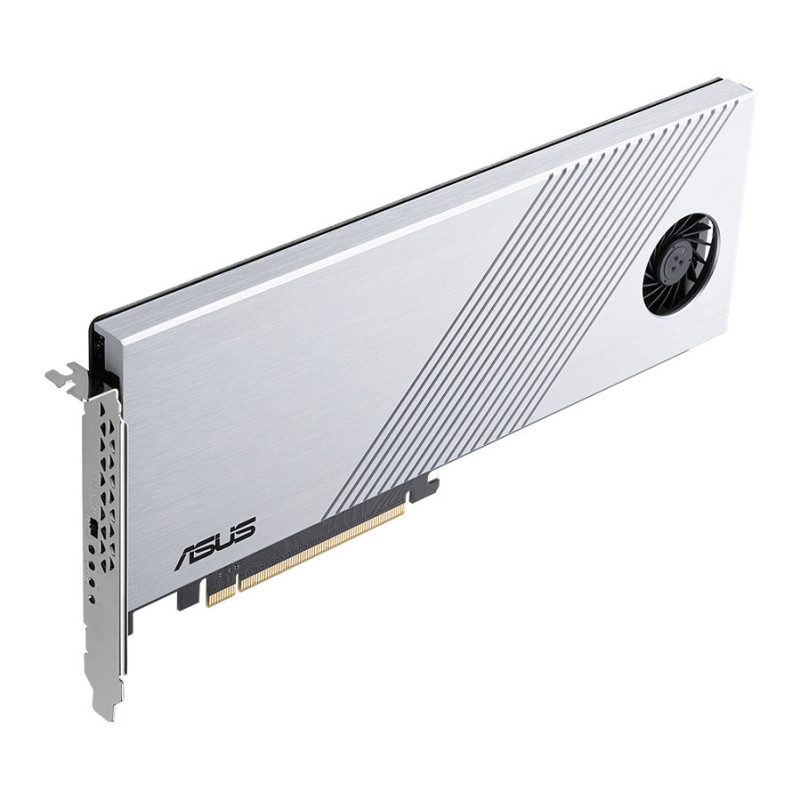

ASUS Hyper M.2 x16 Gen 4 sąsajos plokštės / adapteris

ASUS Hyper M.2 x16 Gen 4. Host interface: PCIe, Output interface: M.2, Expansion card standard: PCIe 4.0. Product colour: Silver, Purpose: PC, Cooling type: Active. Data transfer rate (max): 256 Gbit/s. Width: 270 mm, Depth: 122 mm, Height: 15 mm. Package type: Box

ASUS Hyper M.2 x16 Gen 4 Card (PCIe 4.0/3.0) supports four NVMe M.2 (2242/2260/2280/22110) devices up to 256 Gbps for AMD TRX40/X570 PCIe 4.0 NVMe RAID and Intel platform RAID-on-CPU functions

RAID on CPU

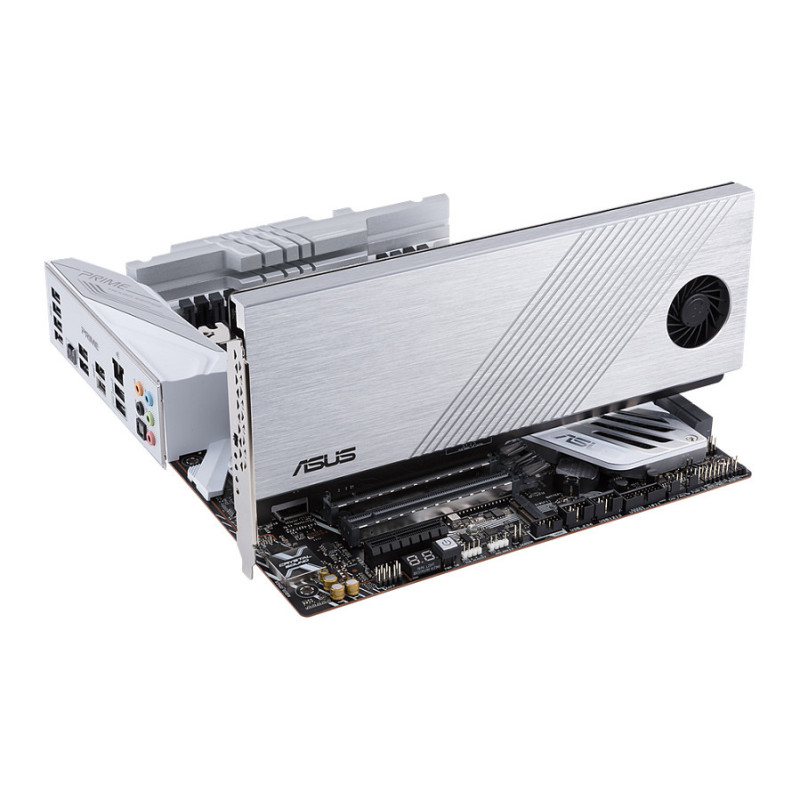

The ASUS Hyper M.2 x16 Gen 4 Card is compatible with the Intel X299, Z390, Z370 and future platforms' RAID-on-CPU function, and supports PCIe 4.0 NVMe RAID on the AMD TRX40 and X570 platforms. Unused CPU PCle lanes can be assigned to storage, allowing you to create a bootable RAID array with up to four M.2 SSDs.

One card, 8X the bandwidth
The ASUS Hyper M.2 x16 Gen 4 Card uses PCIe 4.0, which doubles the bandwidth per lane compared to PCIe 3.0. With four M.2 slots, it offers up to 256 Gbps of bandwidth per card, 8X the bandwidth of a single PCIe 3.0 drive.

Design for unthrottled transfer speed

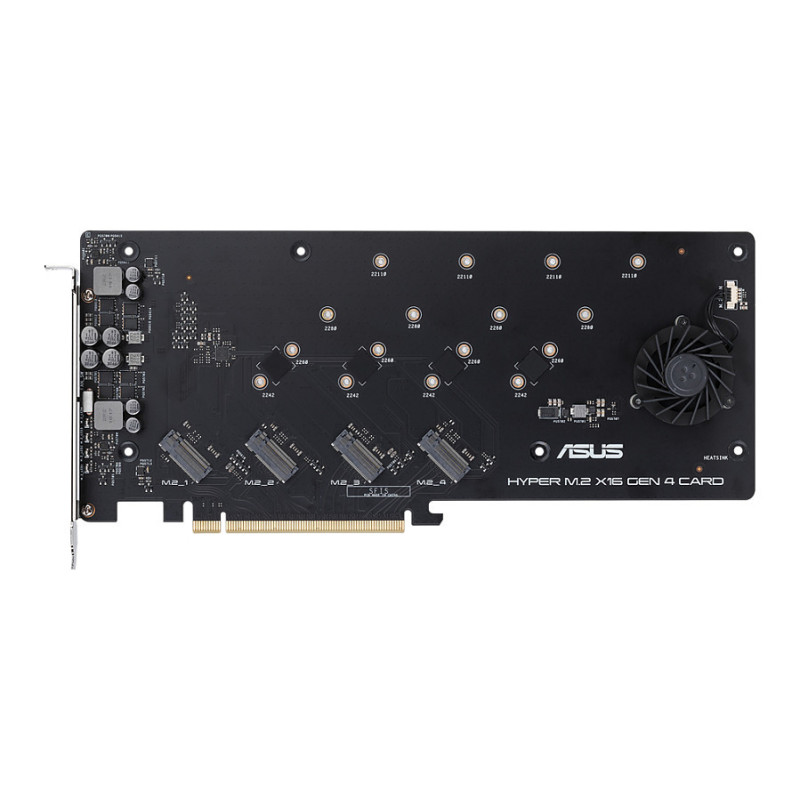

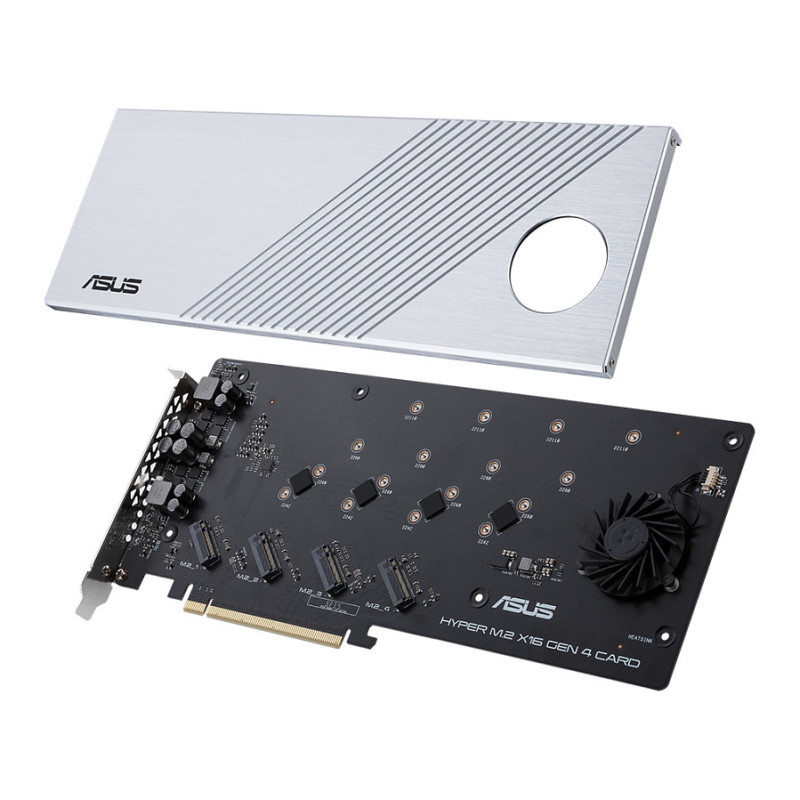

The ASUS Hyper M.2 x16 Gen 4 Card has four M.2 slots — supporting both PCIe 3.0 and 4.0 — that allow you to expand your system with high-performance SSD storage. Designed for the latest generation of NVMe drives, the card features an upgraded power supply that provides up to 14W of power per drive, as well as a large heatsink and active fan to ensure that drives stay cool for optimum performance.

Ports & interfaces

Host interface: PCIe
Output interface: M.2
Expansion card standard: PCIe 4.0

Design

Feature: Internal
Product colour: Silver
Purpose: PC
Cooling type: Active
Number of fans: 1 fan(s)
Number of expansion slots: 4
LED indicators: Access
Feature: Easy to install

Features

Data transfer rate (max): 256 Gbit/s

Weight & dimensions

Width: 270 mm
Depth: 122 mm
Height: 15 mm

Packaging data

Quantity: 1
Package type: Box

Logistics data

Harmonized System (HS) code: 84733020
