„Alcasa DisplayPort“ jungikliai

Alcasa DisplayPort Switches. Video port type: DisplayPort. Material: Metal, Product colour: Black, Supported graphics resolutions: 7680 x 4320. AC input voltage: 5 V. Width: 83 mm, Depth: 63 mm, Height: 18 mm. Packaging content: Switch; USB to DC cable 1m; operating instructions

DisplayPort 1.4 switch, 2-way, bi-directional, 8K @30Hz, Good Connections®
With the compact and bidirectional DisplayPort 1.4 switch from Good Connections® you always have the right solution for connecting devices and screens at hand. The switch is bidirectional and therefore suitable for two different application scenarios:

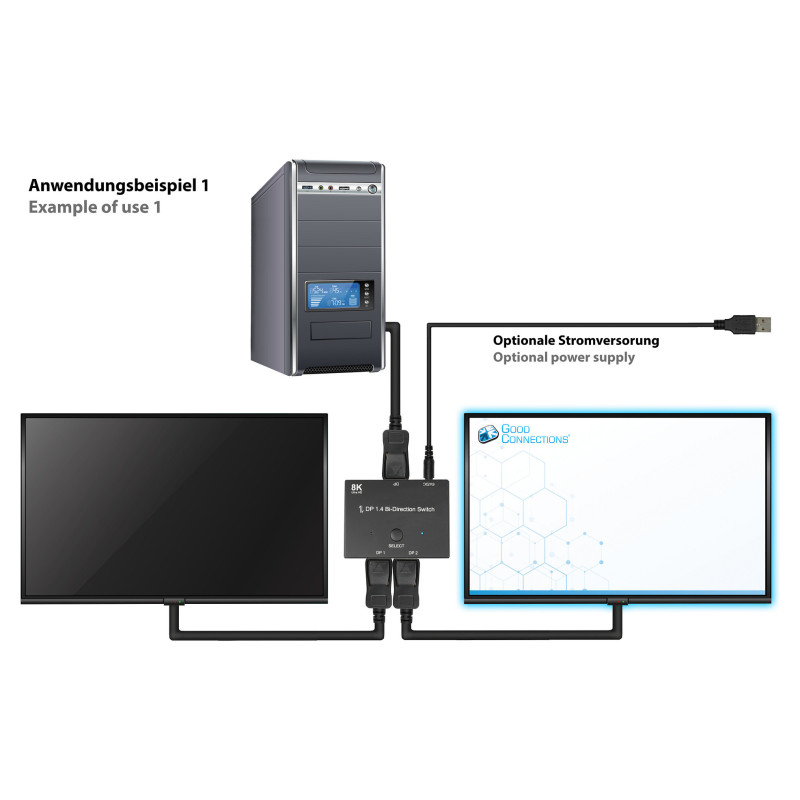

Application scenario - 1 in / 2 out
A device can be connected to two different screens. The screen on which the input signal is to be displayed can be selected by pressing the "Select" button. The selected output is represented by a blue LED. Please note that simultaneous output on both connected screens is not possible.

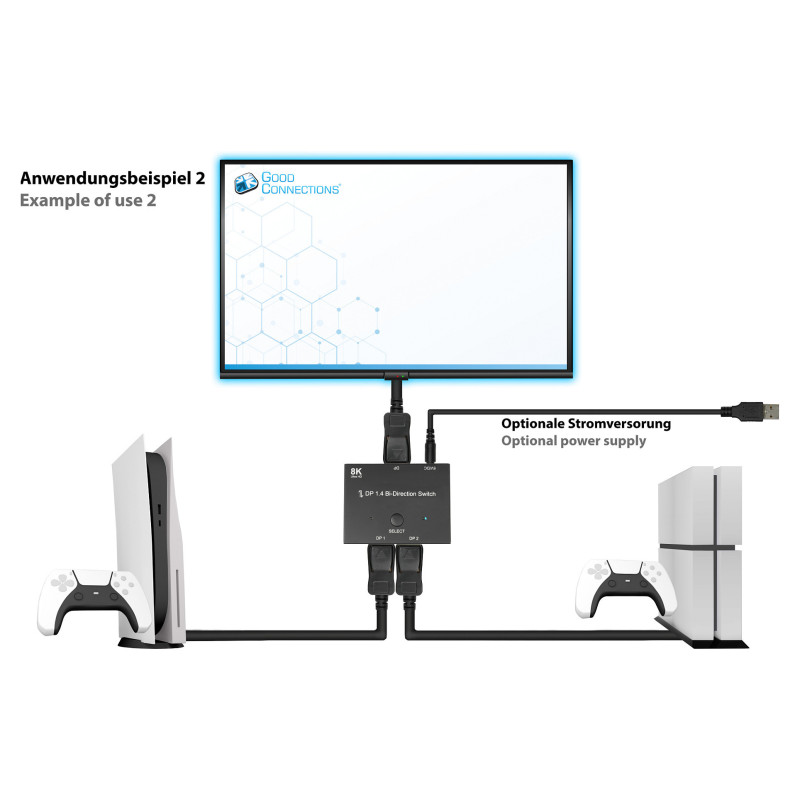

Application scenario - 2 in / 1 out
Two devices can be connected to one screen. The desired input signal can be selected by pressing the "Select" button. The selected input is represented by a blue LED.

Plug & Play
Connect and get started! Connect the DisplayPort cables of the signal source(s) and signal sink(s) to the DisplayPort connectors of the switch. Drivers are not required. Normally, no external power supply is necessary. If your existing DisplayPort devices do not provide enough power to operate the switch, the power supply can be ensured using the included USB to DC cable.

Ports & interfaces

Video port type: DisplayPort
DisplayPorts quantity: 3
Feature: DC-in jack

Features

Material: Metal
Product colour: Black
Feature: Plug and Play
Feature: HDCP
Supported graphics resolutions: 7680 x 4320
LED indicators: Data
Connector contacts plating: Gold
HD type: 8K Ultra HD
HDCP version: 1.4/2.2

Power

AC input voltage: 5 V

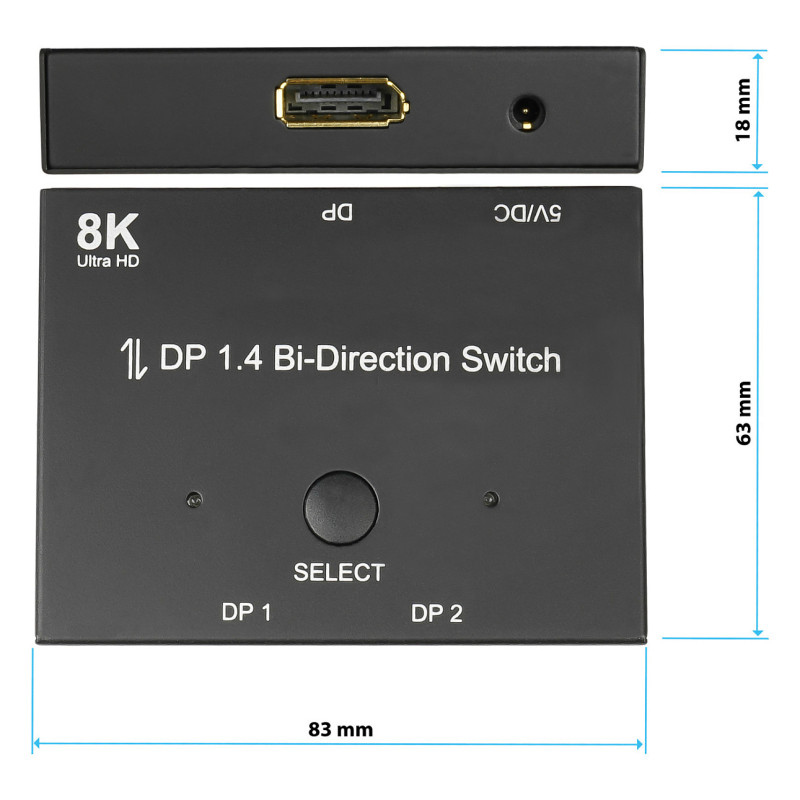

Weight & dimensions

Width: 83 mm
Depth: 63 mm
Height: 18 mm
Weight: 110 g

Packaging content

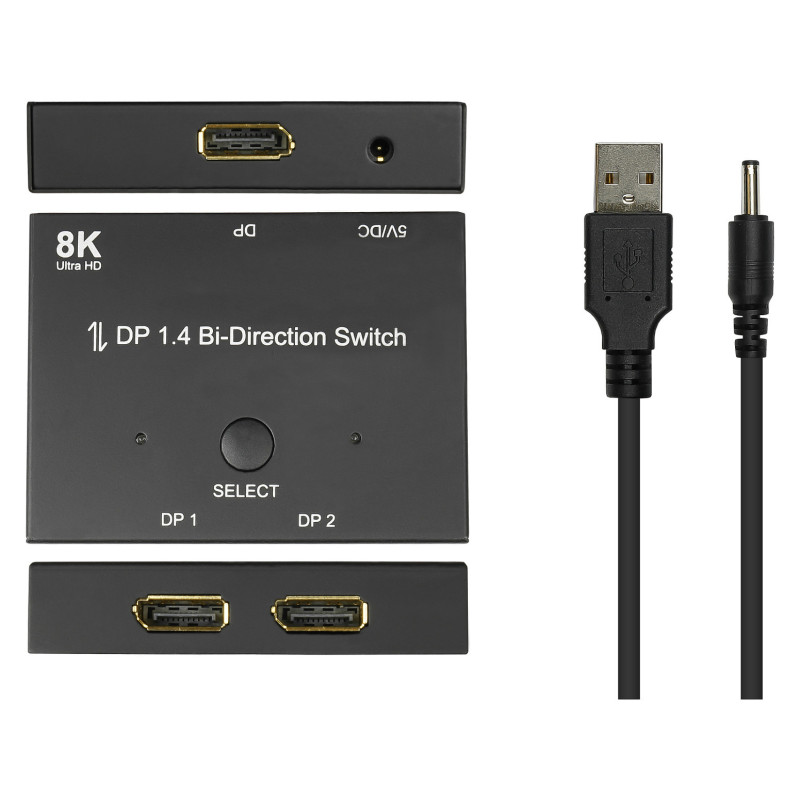

Packaging content: Switch; USB to DC cable 1m; operating instructions

Technical details

Technical features: Signal direction: Bidirectional
