ICY BOX IB-M2HS-701

ICY BOX IB-M2HS-701. Type: Heatsink/Radiator. Width: 21 mm, Depth: 70 mm, Height: 5 mm. Product colour: Black

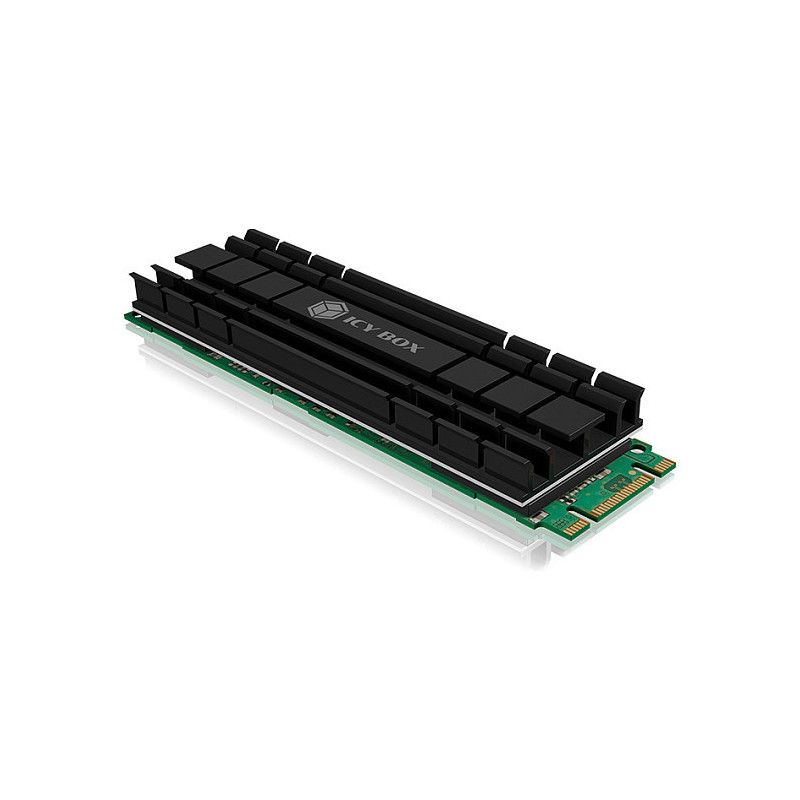

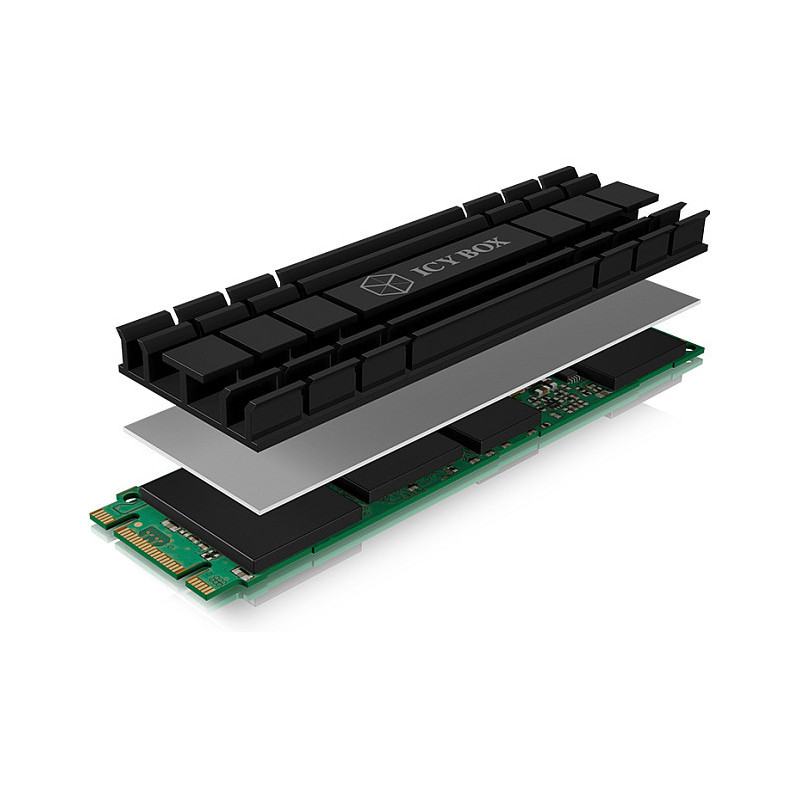

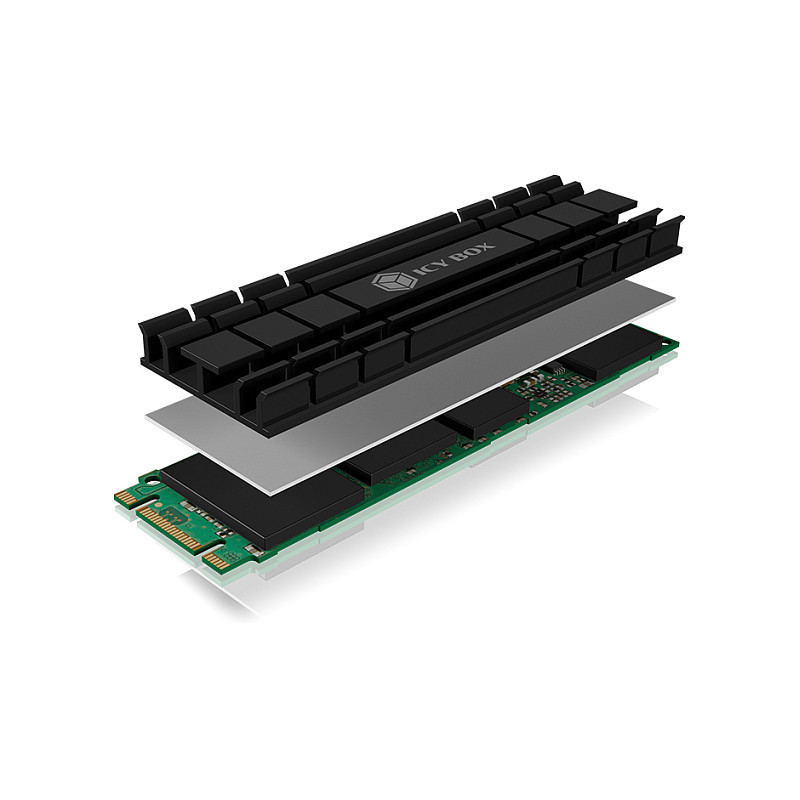

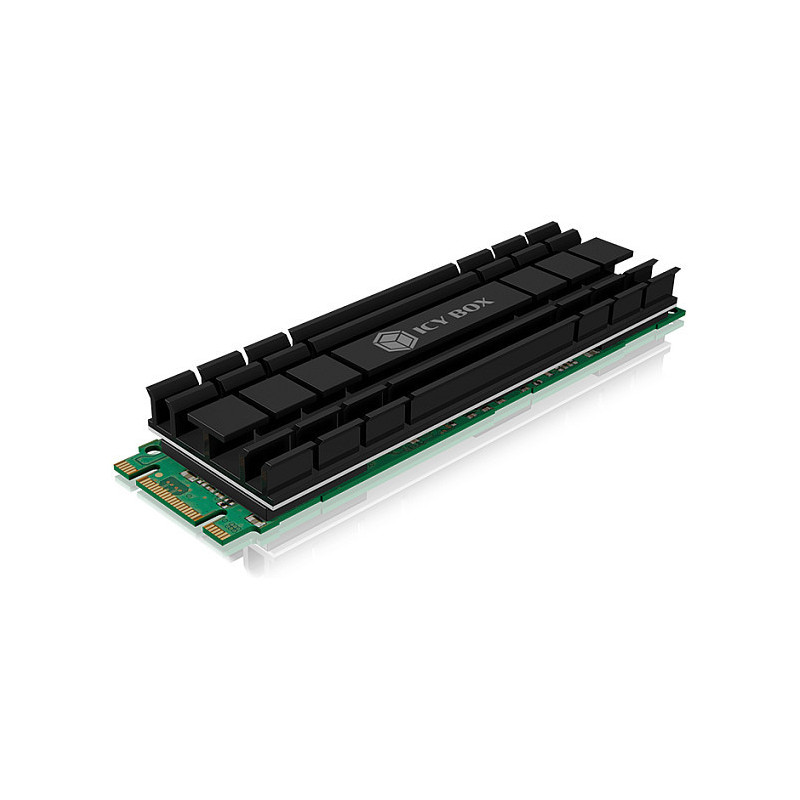

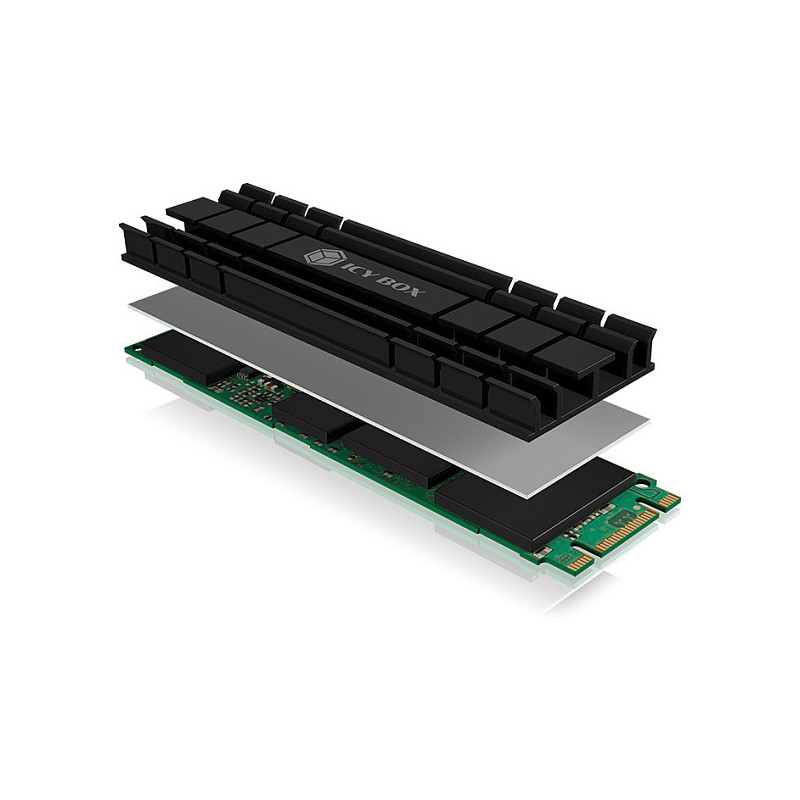

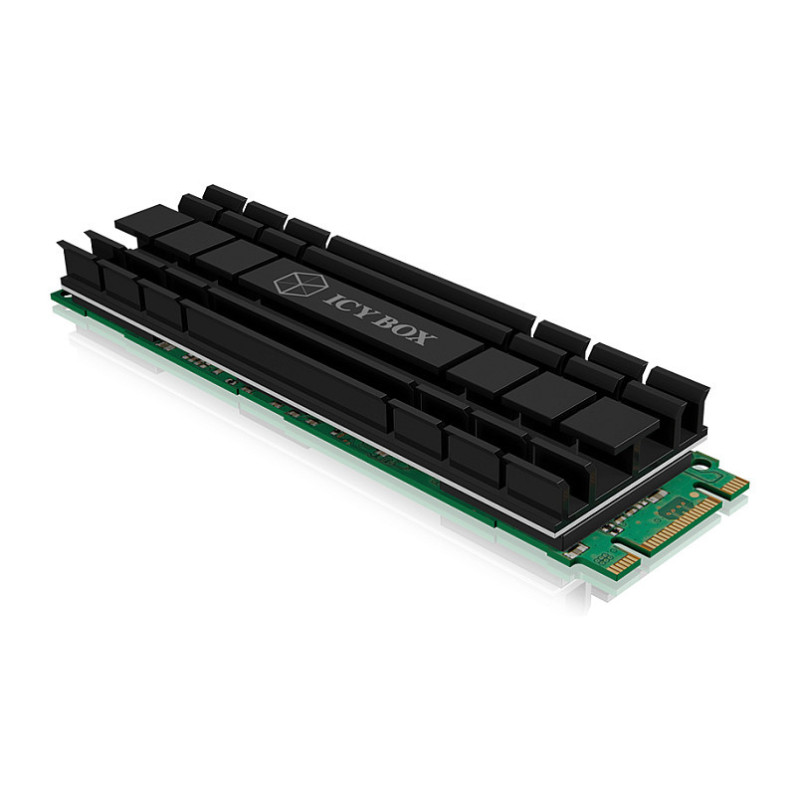

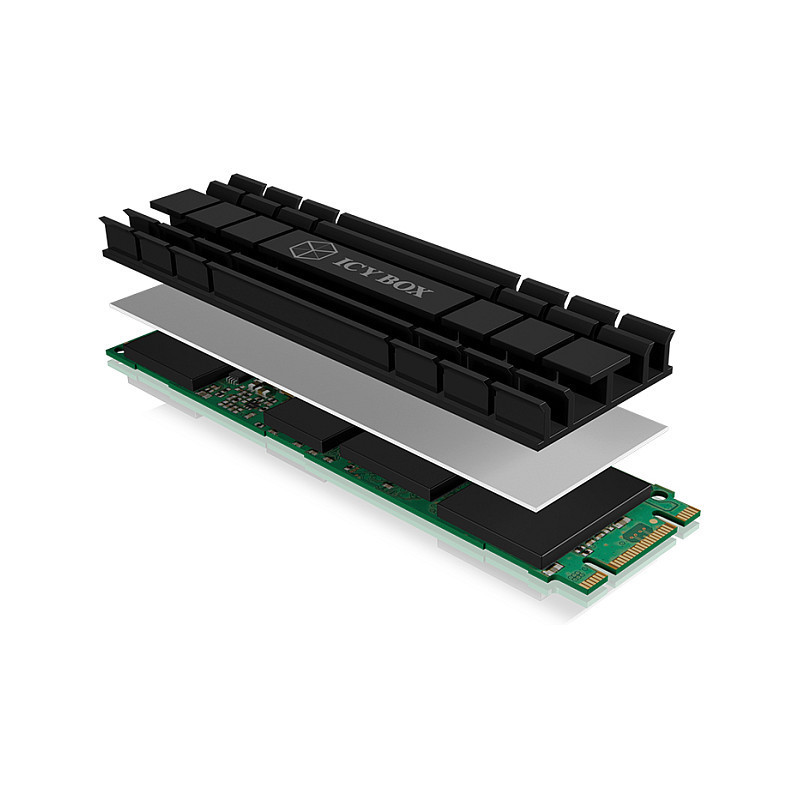

The principle is passive cooling for M.2 SSDs with a length of up to 80 mm and only 5 mm height, which results in more power. For an easy installation everything is included in the package: thermal pads and the cooling plate (IB-M2HS-701). First, the heat conducting pad is placed on the M.2 and the cooling plate is then placed on top of this. Due to the low height of the cooling plate, it does not interfere with the installation and thus dissipates the heat very quickly.

Do not disturb!
The compact design makes it fit perfectly on motherboards so that it does not interfere with other components, like a big graphics card.

Thermal pads
Thermal plates are just as heat-conduction paste a medium to optimate the derivation of the heat loss of electronic components.

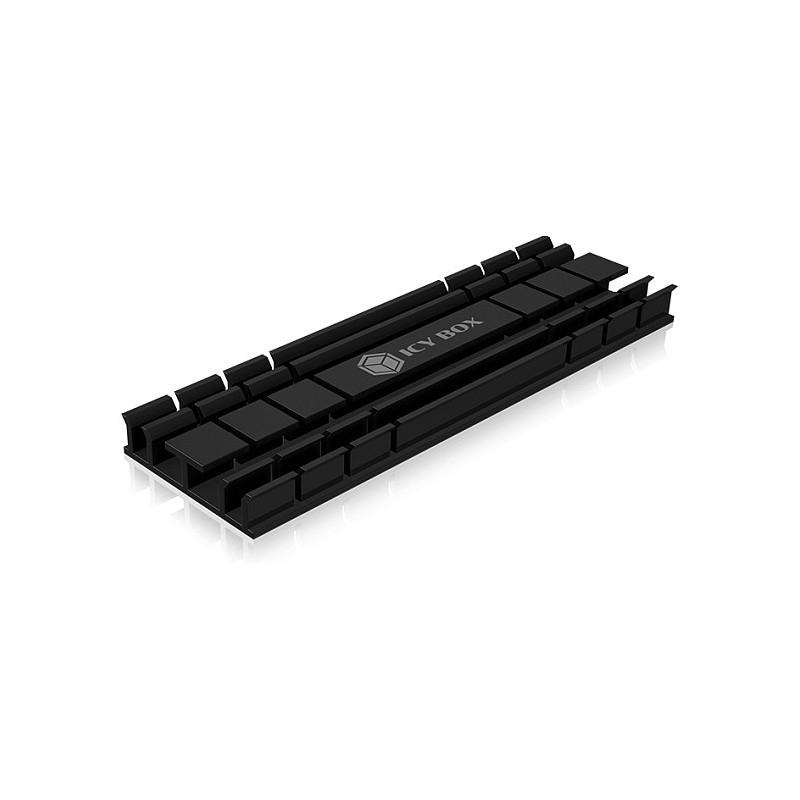

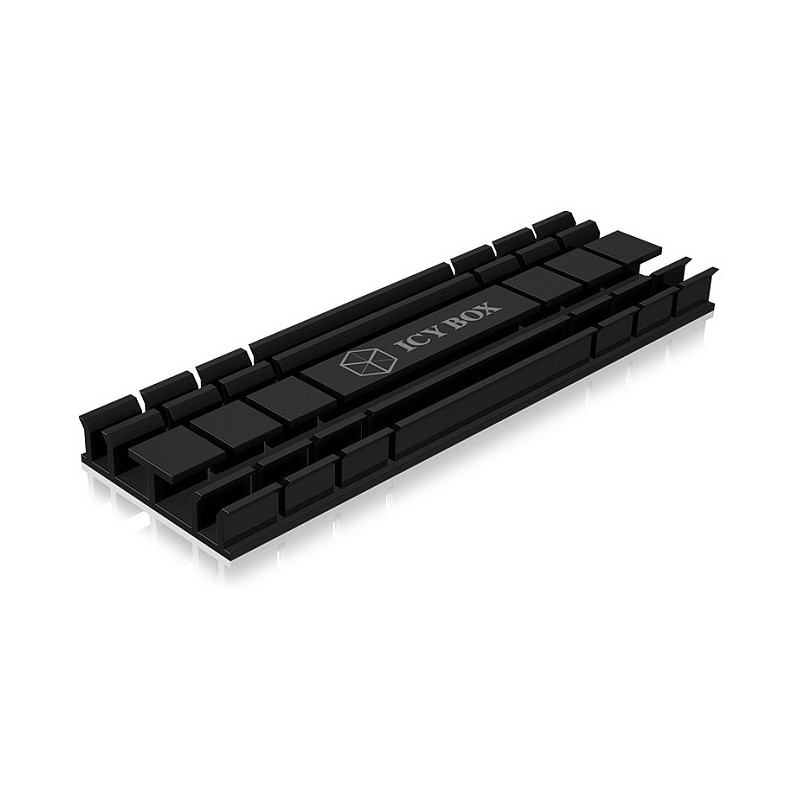

Cooling plates
The thermal aluminium fins extend the surface to make sure that more heat can be given off to the surrounding area to optimate the performance once again.

Performance

Suitable location: M.2 NVMe SSD
Type: Heatsink/Radiator
Fan diameter: N
Quantity per pack: 1 pc(s)
Thermal conductivity: 1.5 W/m·K
Operating temperature (T-T): -20 - 180 °C

Design

Product colour: Black
Material: Aluminium, Silicone

Weight & dimensions

Width: 21 mm
Depth: 70 mm
Height: 5 mm
Weight: 8 g
Package width: 25 mm
Package depth: 100 mm
Package height: 85 mm
Package weight: 65 g

Technical details

Compliance certificates: CE

Packaging content

Feature: Thermal pad included

Other features

Country of origin: China

Logistics data

Harmonized System (HS) code: 84733080
Master (outer) case width: 300 mm
Master (outer) case length: 530 mm
Master (outer) case height: 260 mm
Master (outer) case gross weight: 6.5 kg
Products per master (outer) case: 100 pc(s)
