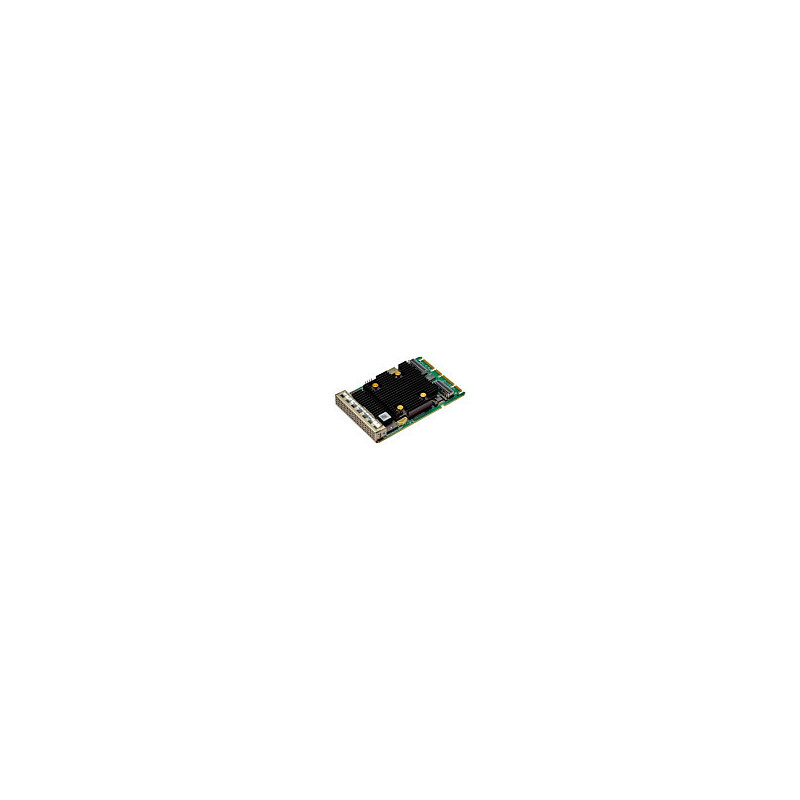

„Broadcom MegaRAID 9562-16i“ sąsajos plokštės / adapteris

Broadcom MegaRAID 9562-16i. Host interface: PCI Express x8, Output interface: SFF-8654. Cooling type: Passive, Mean time between failures (MTBF): 3000000 h. Data transfer rate (max): 12 Gbit/s, RAID levels: 0, 1, 5, 6, 10, 50, 60. Power consumption (typical): 13 W. Width: 76 mm, Depth: 115 mm

The 16-port OCP 3.0 SFF Tri-Mode 9562-16i NVMe/SAS/SATA RAID adapter enables more flexibility when integrating storage into the server.

The OCP RAID adapter enables the operation of NVMe, SAS or SATA devices in a single drive bay. By using an OCP slot for storage, users can free up a standard PCIe adapter slot for other uses.

Ports & interfaces

Host interface: PCI Express x8
Output interface: SFF-8654

Design

Feature: Internal
Cooling type: Passive
Mean time between failures (MTBF): 3000000 h

Features

Data transfer rate (max): 12 Gbit/s
RAID levels: 0, 1, 5, 6, 10, 50, 60

Power

Power consumption (typical): 13 W

Operational conditions

Operating temperature (T-T): 0 - 55 °C

System requirements

Windows operating systems supported: Yes
Linux operating systems supported: Yes

Weight & dimensions

Width: 76 mm
Depth: 115 mm

Other features

Data transfer rate: 12 Gbit/s
Ports quantity: 16
Internal memory: 8000 MB
