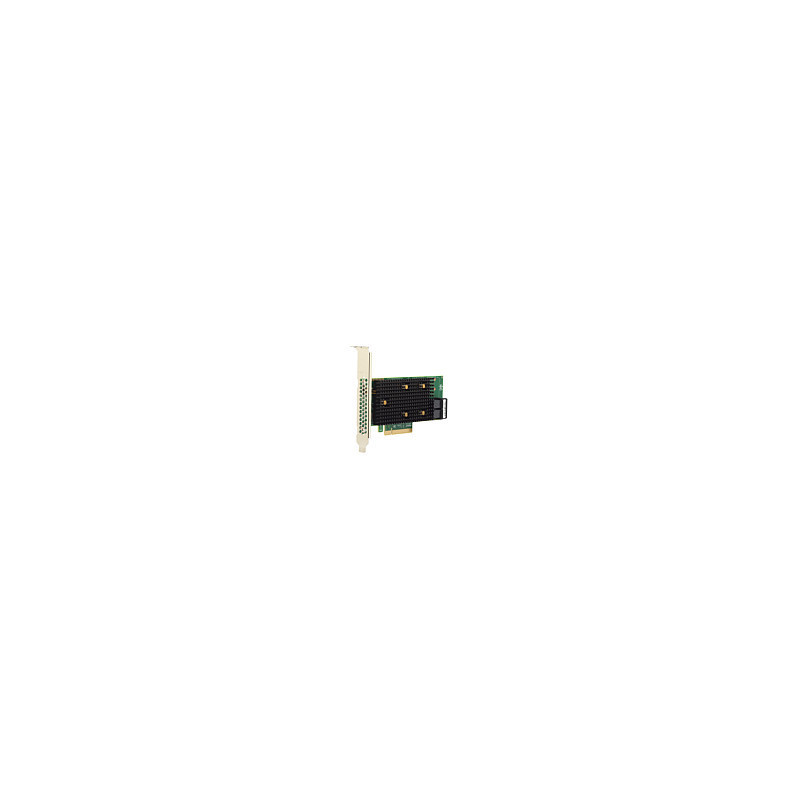

„Broadcom MegaRAID 9440-8i“ RAID valdiklis

Broadcom MegaRAID 9440-8i. Supported storage drive interfaces: SAS, Serial ATA, Host interface: PCI Express x8. RAID levels: 0, 1, 5, 10, 50, Data transfer rate: 12 Gbit/s, Form factor: Low Profile MD2 Card. Voltage: 3.3, 12 V. Width: 155.7 mm, Depth: 68.9 mm. Connector(s): 2 x Mini-SAS HD x4 SFF-8643

Small and medium businesses (SMBs) deploying entry-level server platforms and workstations need affordable, reliable storage solutions. The MegaRAID 9440-8i Tri-Mode Storage Adapter is a 12Gb/s SAS/SATA/PCIe (NVMe) controller card that addresses these needs by delivering proven performance and RAID data protection for a range of non-business crticial applications.

Broadcom's Tri-Mode SerDes Technology enables the operation of NVMe, SAS or SATA devices in a single drive bay, allowing for endless design flexibility.

Ports & interfaces

Supported storage drive interfaces: SAS, Serial ATA
Host interface: PCI Express x8
PCI Express slots version: 3.1
Internal mini-SAS ports: 2

Performance

RAID levels: 0, 1, 5, 10, 50
Feature: RAID Level Migration
Data transfer rate: 12 Gbit/s
Form factor: Low Profile MD2 Card
Feature: SSD support
Feature: S.M.A.R.T. support
Number of devices supported: 63
Feature: Online Capacity Expansion
Mean time between failures (MTBF): 3000000 h

Power

Voltage: 3.3, 12 V

System requirements

Windows operating systems supported: Yes

Operational conditions

Operating temperature (T-T): 10 - 55 °C
Storage temperature (T-T): -45 - 105 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 155.7 mm
Depth: 68.9 mm

Logistics data

Harmonized System (HS) code: 84733080

Other features

Connector(s): 2 x Mini-SAS HD x4 SFF-8643
Ports quantity: 8
