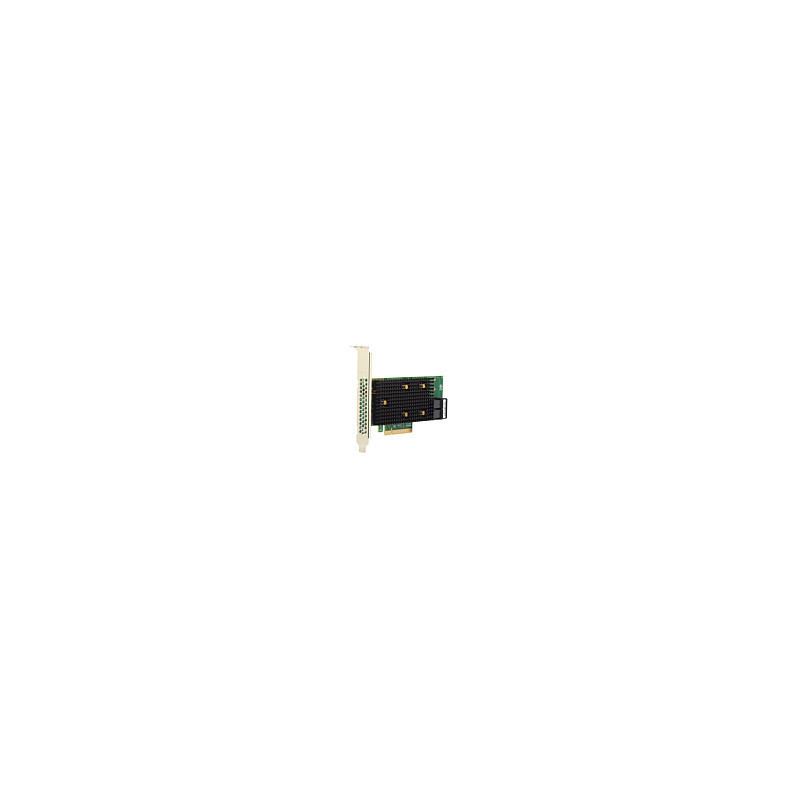

„Broadcom HBA 9500-8i“ sąsajos plokštės / adapteris

Broadcom HBA 9500-8i. Host interface: PCIe, Output interface: SAS, Expansion card form factor: Full-height / Low-profile. Product colour: Black, Grey, Mean time between failures (MTBF): 5000000 h, Certification: Australia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022/EN55024),.... Power consumption (typical): 5.96 W. Width: 155.6 mm, Depth: 68.9 mm. Quantity per box: 1 pc(s)

The 9500-8i Tri-Mode, PCIe Gen 4.0 HBA with eight internal ports is ideal for increased connectivity and maximum performance for enterprise data center flexibility.

With increased bandwidth and IOPS performance compared to previous generations, the 9500-8i adapter delivers the performance and scalability needed by critical applications.

Ports & interfaces

Host interface: PCIe
Output interface: SAS
Expansion card form factor: Full-height / Low-profile
Feature: NVMe
Internal mini-SAS ports: 1

Design

Feature: Internal
Product colour: Black, Grey
Mean time between failures (MTBF): 5000000 h

Features

Feature: Full duplex
Feature: Plug and Play

Power

Power consumption (typical): 5.96 W

Operational conditions

Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -45 - 105 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 5 - 95%

System requirements

Windows operating systems supported: Yes
Linux operating systems supported: Yes

Weight & dimensions

Width: 155.6 mm
Depth: 68.9 mm

Packaging data

Quantity: 1
Feature: Manual
Feature: User guide

Logistics data

Harmonized System (HS) code: 84733020

Other features

Quantity per box: 1 pc(s)
