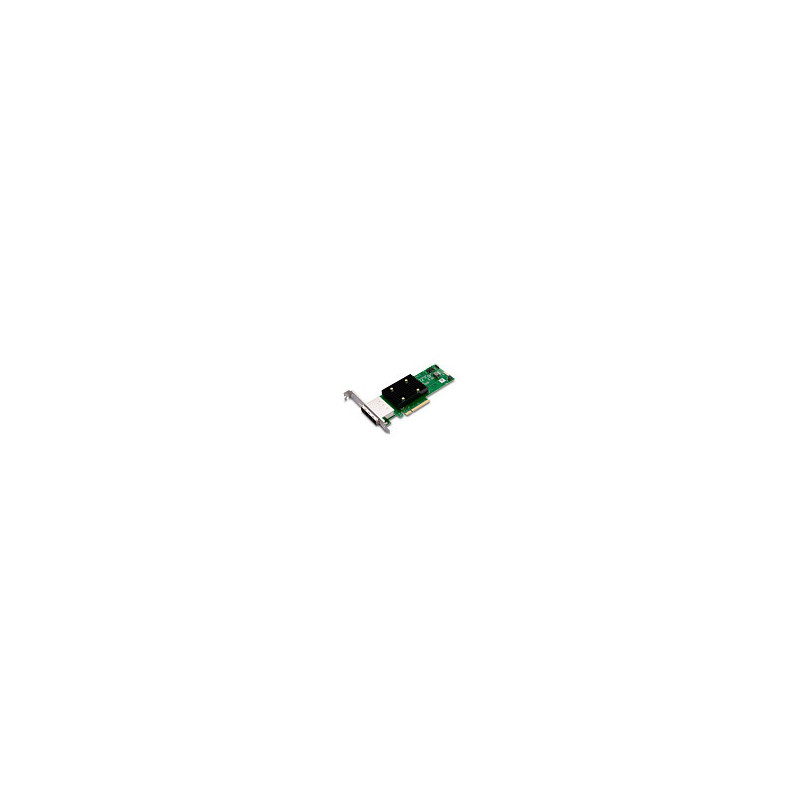

„Broadcom HBA 9500-16e“ sąsajos plokštės / adapteris

Broadcom HBA 9500-16e. Host interface: PCIe, Output interface: SAS, Expansion card form factor: Full-height / Low-profile. Product colour: Black, Green, Metallic, Mean time between failures (MTBF): 5000000 h, Certification: Australia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022/EN55024),.... Power consumption (typical): 8.74 W. Width: 167.6 mm, Depth: 68.9 mm

The 9500-16e Tri-Mode, PCIe Gen 4.0 HBA with 16 external ports is ideal for increased connectivity and maximum performance for enterprise data center flexibility.

With increased bandwidth and IOPS performance over previous generations, the 9500-16e adapter delivers the performance and scalability needed by critical applications.

Ports & interfaces

Host interface: PCIe
Output interface: SAS
Expansion card form factor: Full-height / Low-profile
Feature: NVMe
External mini-SAS HD ports: 4

Design

Product colour: Black, Green, Metallic
Mean time between failures (MTBF): 5000000 h

Features

Feature: Plug and Play

Power

Power consumption (typical): 8.74 W

Operational conditions

Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -45 - 105 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 5 - 95%

System requirements

Windows operating systems supported: Yes
Linux operating systems supported: Yes

Technical details

Compliance certificates: RoHS

Weight & dimensions

Width: 167.6 mm
Depth: 68.9 mm

Packaging data

Quantity: 1
Feature: Manual
Feature: User guide

Logistics data

Harmonized System (HS) code: 84733020
