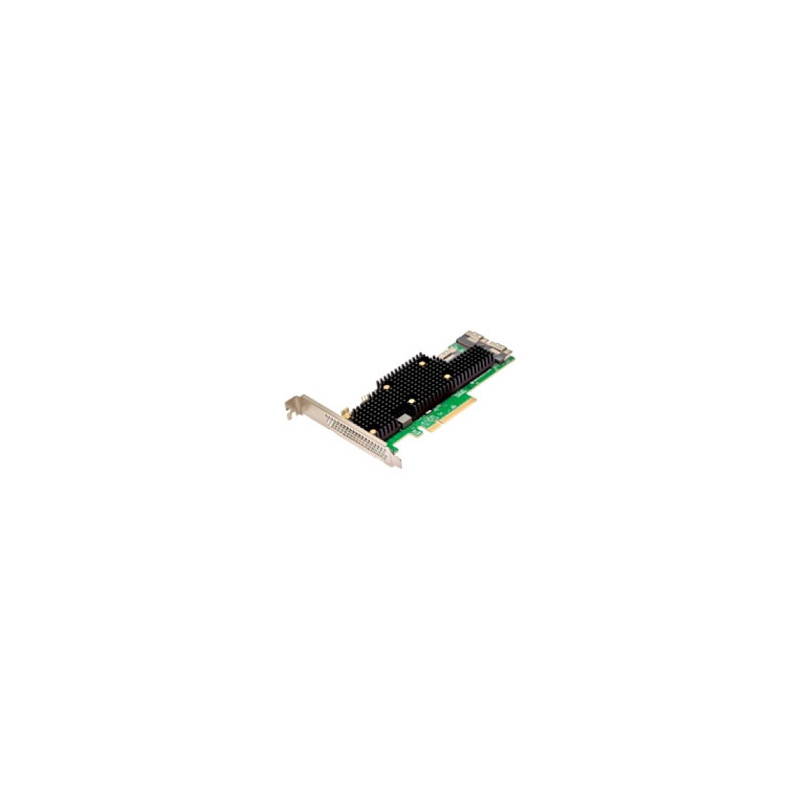

„Broadcom eHBA 9600-24i“ sąsajos plokštės / adapteris

Broadcom eHBA 9600-24i. Host interface: PCIe, Output interface: SAS, SATA, Expansion card form factor: Full-height / Low-profile. Product colour: Green, Silver, Mean time between failures (MTBF): 5000000 h, Certification: Australia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class.... Data transfer rate (max): 12 Gbit/s. Power consumption (typical): 17 W. Server operating systems supported: SUSE Linux Enterprise Server

The 9600-24i Tri-Mode, PCIe Gen 4.0 enhanced HBA (eHBA) is ideal for increased connectivity and maximum performance for enterprise data center flexibility.

With increased bandwidth and IOPS performance compared to previous generations, the 9600-24i eHBA delivers the performance and scalability needed by critical applications.

Ports & interfaces

Host interface: PCIe
Output interface: SAS, SATA
Expansion card form factor: Full-height / Low-profile
Expansion card standard: PCIe 4.0
Feature: NVMe

Design

Feature: Internal
Product colour: Green, Silver
Mean time between failures (MTBF): 5000000 h

Features

Data transfer rate (max): 12 Gbit/s
Feature: S.M.A.R.T. support
Feature: Plug and Play

Power

Power consumption (typical): 17 W

Operational conditions

Operating temperature (T-T): 0 - 55 °C
Operating relative humidity (H-H): 5 - 90%

System requirements

Windows operating systems supported: Yes
Linux operating systems supported: Yes
Server operating systems supported: SUSE Linux Enterprise Server
Other operating systems supported: Yes

Technical details

Compliance certificates: RoHS, WEEE

Weight & dimensions

Width: 155.6 mm
Depth: 68.9 mm

Packaging data

Quantity per pack: 1 pc(s)

Other features

Channels quantity: 24 channels
