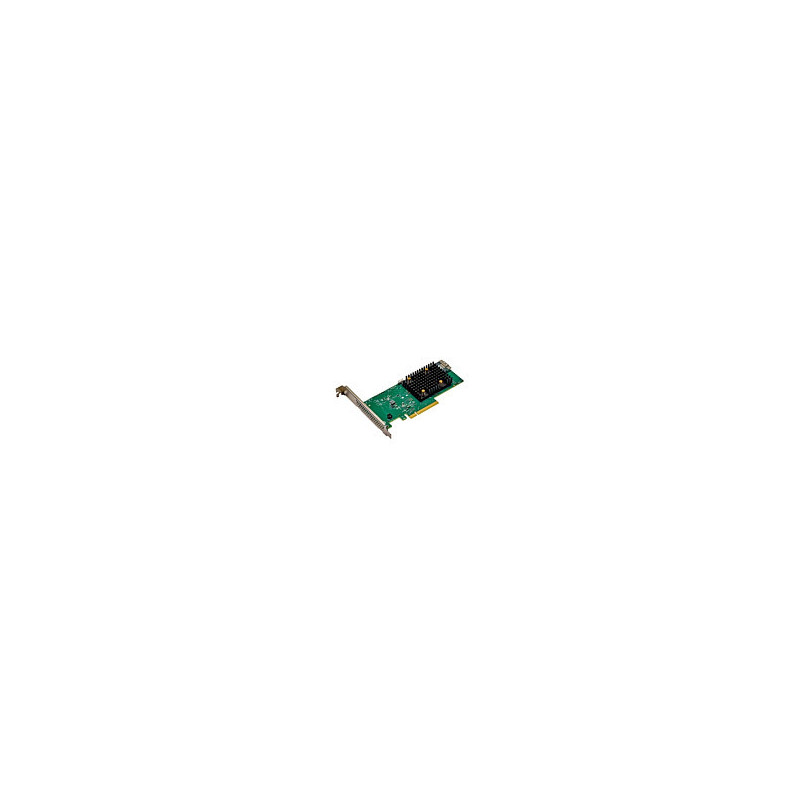

„Broadcom 9540-8i“ RAID valdiklis

Broadcom 9540-8i. Supported storage drive interfaces: PCI Express 4.0, Host interface: PCI Express x8. RAID levels: 0, 1, 10, Data transfer rate: 12 Gbit/s, Chipset: SAS3808. Depth: 155.7 mm, Height: 68.9 mm

The MegaRAID 9500 series is the industry's first PCIe Gen 4.0 RAID adapter family, offering PCIe Gen 4.0 host and storage interfaces. The MegaRAID 9540-8i adapter, based on the SAS3808 PCIe 4.0 x8 IO Controller (IOC) device, delivers twice the performance of previous generations.

Small and medium businesses (SMBs) deploying entry-level server platforms and workstations need affordable, reliable storage solutions. The MegaRAID 9540-8i Tri-Mode Storage Adapter is a PCIe Gen 4.0 12Gb/s SAS/SATA/PCIe (NVMe) controller card that addresses these needs by delivering proven performance and RAID data protection for a range of critical applications.

The adapters Tri-Mode SerDes technology negotiates between speeds and protocols to seamlessly to enablethe operation of NVMe, SAS or SATA devices in a single drive bay getting the most performance and flexibility out of any drive protocol.

Ports & interfaces

Supported storage drive interfaces: PCI Express 4.0
Host interface: PCI Express x8
PCI Express slots version: 4.0
Internal SAS ports: 8

Performance

RAID levels: 0, 1, 10
Data transfer rate: 12 Gbit/s
Chipset: SAS3808
Feature: S.M.A.R.T. support
Number of devices supported: 32
Mean time between failures (MTBF): 3000000 h

Operational conditions

Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -45 - 105 °C
Operating relative humidity (H-H): 5 - 90%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Depth: 155.7 mm
Height: 68.9 mm
