StarTech.com HSB3SATSASBA disko masyvas

StarTech.com 3 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD. Total installed storage capacity: 0 TB, Storage drive interface: Serial ATA, Serial ATA II, Serial ATA III, Storage drive size: 3.5", Number of storage drives supported: 3, Supported storage drive types: HDD. Width: 145 mm, Depth: 194.1 mm, Height: 110 mm, Weight: 1.2 kg. Product colour: Black

Easily connect and hot swap up to three 3.5" SATA/SAS hard drives from two 5.25" bays

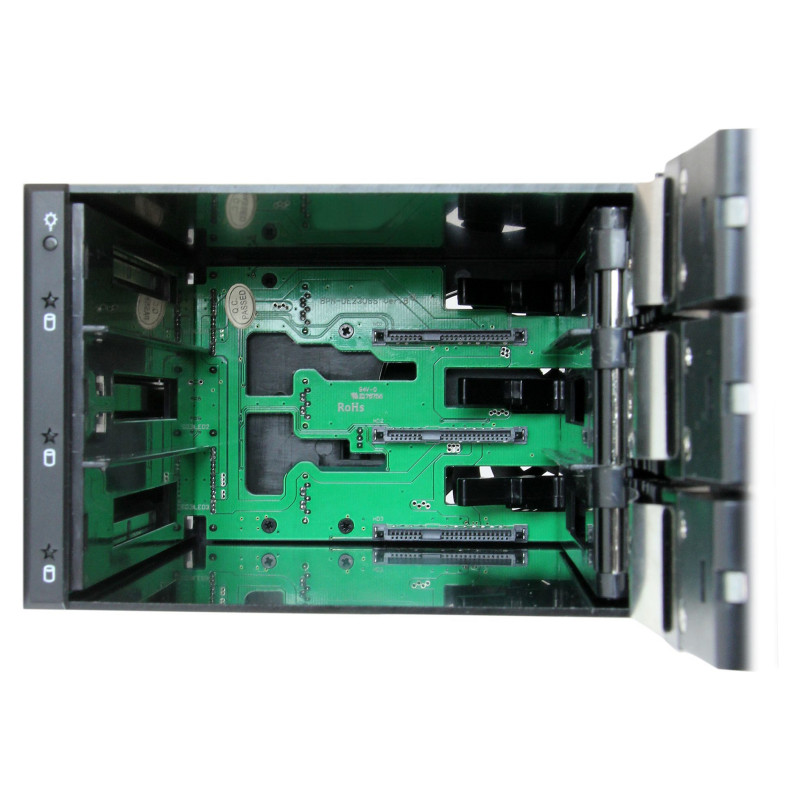

The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5" drives from the front of your computer, by turning two 5.25" bays into a hot-swappable interface for you to connect up to three 3.5" SATA or SAS hard drives (HDD).

For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal accommodation for enterprise system applications.

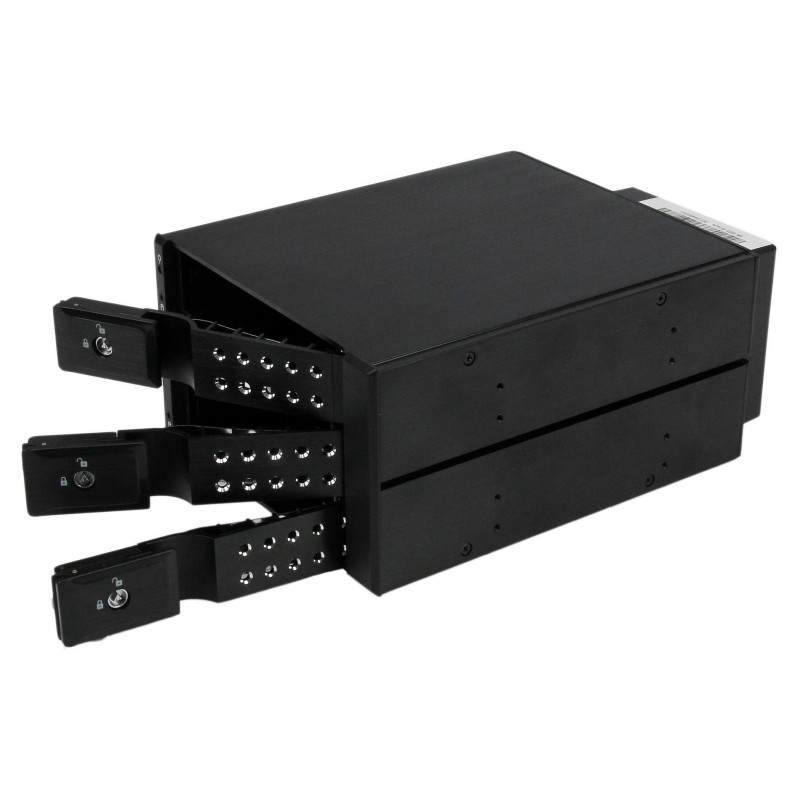

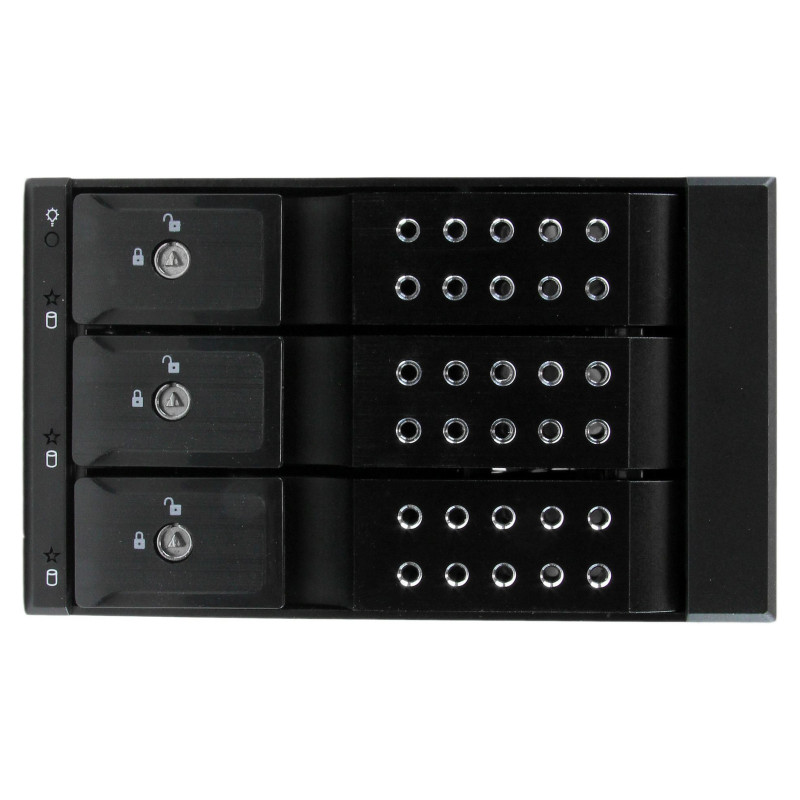

For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure.

The HSB3SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Storage

Installed storage drive type: No
Total installed storage capacity: 0 TB
Supported storage drive types: HDD
Number of storage drives supported: 3
Maximum supported storage capacity: 12 TB
Storage drive interface: Serial ATA, Serial ATA II, Serial ATA III
Storage drive size: 3.5"
Data transfer rate: 6 Gbit/s
Feature: Hot-swap drive bays

Ports & interfaces

Host ports: 3
Feature: SATA host port
Number of SATA power connectors: 2
SATA power connector type: SATA 15-pin

Design

Product colour: Black
LED indicators: Activity, Power
Number of fans: 1 fan(s)

Performance

Feature: Backplanes support

Weight & dimensions

Width: 145 mm
Depth: 194.1 mm
Height: 110 mm
Weight: 1.2 kg

Packaging data

Package width: 253 mm
Package depth: 184 mm
Package height: 126 mm
Package weight: 1.2 kg

Packaging content

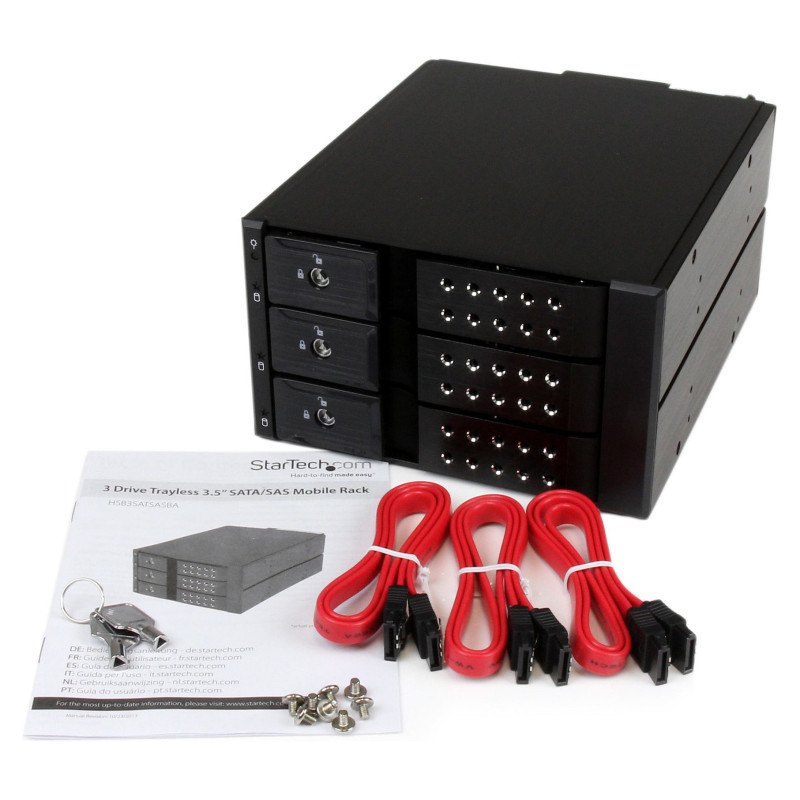

Cables included: SATA

Operational conditions

Operating temperature (T-T): 0 - 55 °C
Operating relative humidity (H-H): 5 - 85%
Storage temperature (T-T): -20 - 60 °C

Other features

Compliance certificates: RoHS

Logistics data

Products per master (outer) case: 8 pc(s)
Master (outer) case length: 391 mm
Master (outer) case width: 541 mm
Master (outer) case height: 287 mm
Harmonized System (HS) code: 84717020
