StarTech.com M2-HDD-DUPLICATOR-N1 terpės kopijavimo aparatas

StarTech.com 1:1 M.2 NVMe Drive Duplicator, Standalone M.2 SSD Cloner/Copier up to 90GBpm, USB 3.2 20Gbps M.2 Dual-Bay Drive Dock, USB-C/A Cables Included. Product type: HDD/SSD duplicator, Number of simultaneous copies: 1 copies, Interface: USB 3.2 Gen 2 (3.1 Gen 2). SSD interface: M.2. Power consumption (typical): 0.1 W, AC input voltage: 100 - 240 V, Input current: 0.6 A. Dimensions (WxDxH): 77 x 77 x 44 mm, Weight: 129 g. Package width: 160 mm, Package depth: 90 mm, Package height: 95 mm

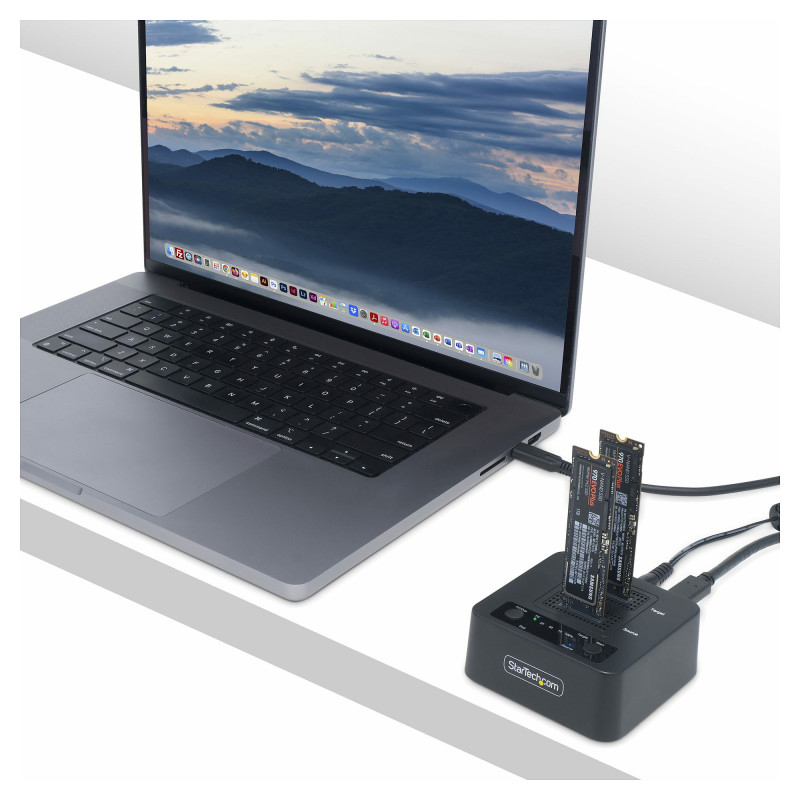

Clone M.2 NVMe drives without a host computer, or access the drives when connected to a computer via USB

This M.2 NVMe drive duplicator with a USB 3.2 Gen2x2 (20Gbps) host port offers high-speed duplication capabilities of up to 90GB per minute, providing efficient and fast cloning of storage devices.

High-Speed M.2 NVMe Duplication

Clone or duplicate M.2 NVMe solid-state drives (SSDs) without the need for a computer. This device requires no drivers or software and offers high-performance sector-by-sector duplication rates of up to 90GBpm and works with any file format, copying the entire drive.

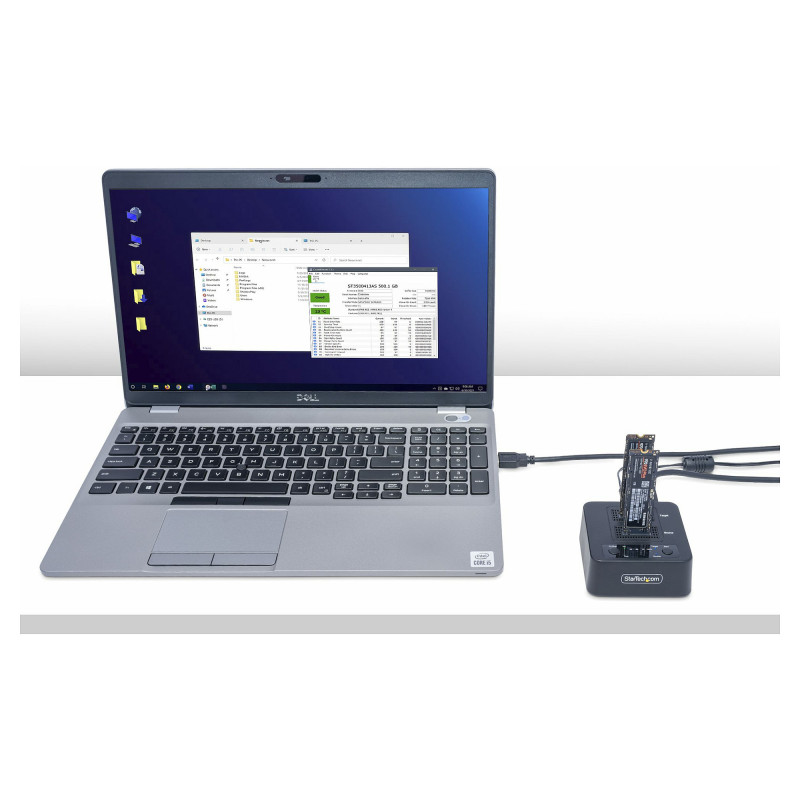

NVMe Drive Access over USB 3.2 Gen2x2

The USB 20Gbps host connection enables external access and storage functionality for M.2 NVMe drives, facilitating data transfer between different computers without the need for internal drive installation.

Compact and User-Friendly

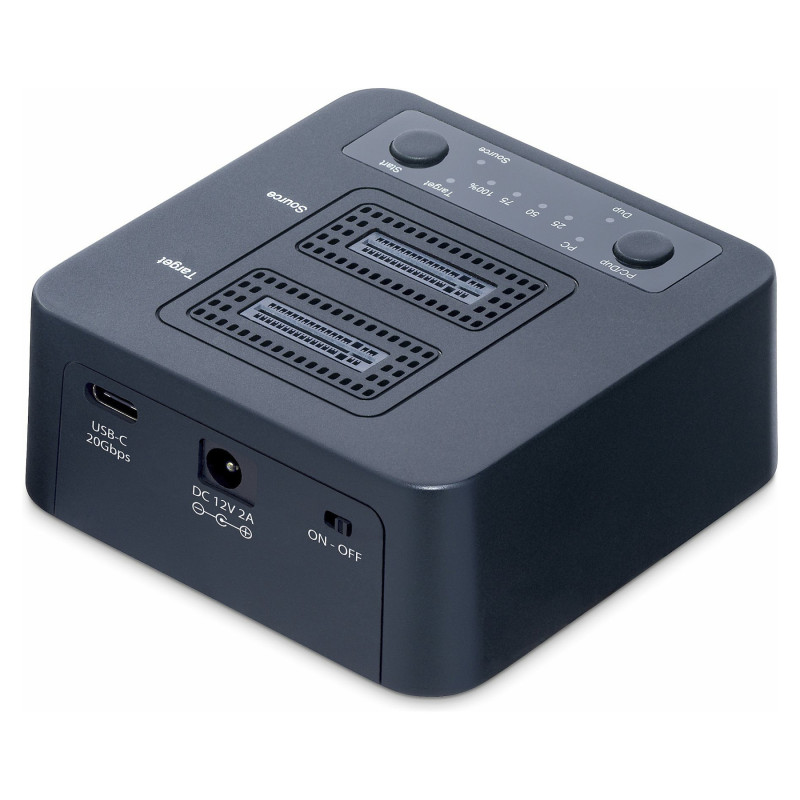

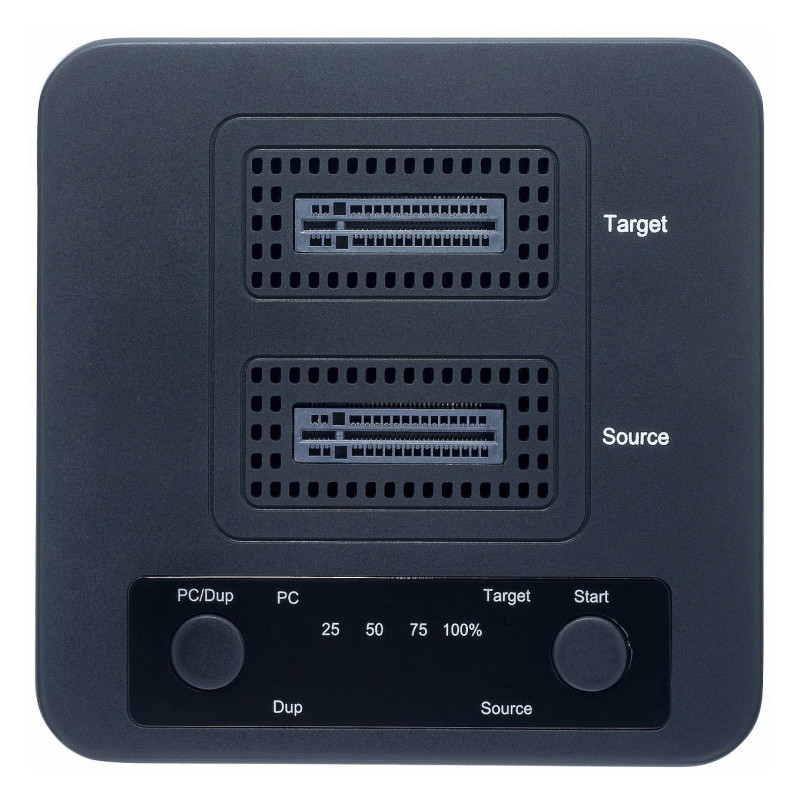

The device has a small form factor, requiring minimal desktop or storage space. LEDs display progress, status, and power, while an audible buzzer confirms duplication completion. The device features active and passive cooling to ensure optimal performance.

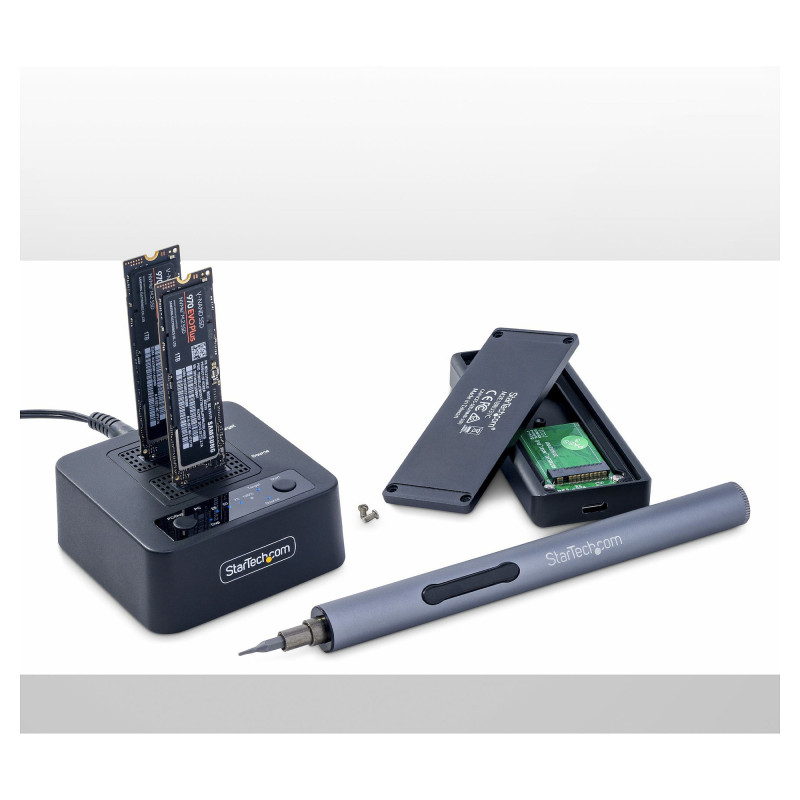

The top-loading (toaster-style) design accommodates all PCIe M.2 (M-Key) drives, including those with pre-installed heat sinks. The device supports 4Kn sector size. Please note that the target disk must be equal to or larger than the source disk.

Features

Product type: HDD/SSD duplicator
Product colour: Black
Housing material: Plastic
Number of simultaneous copies: 1 copies
Interface: USB 3.2 Gen 2 (3.1 Gen 2)

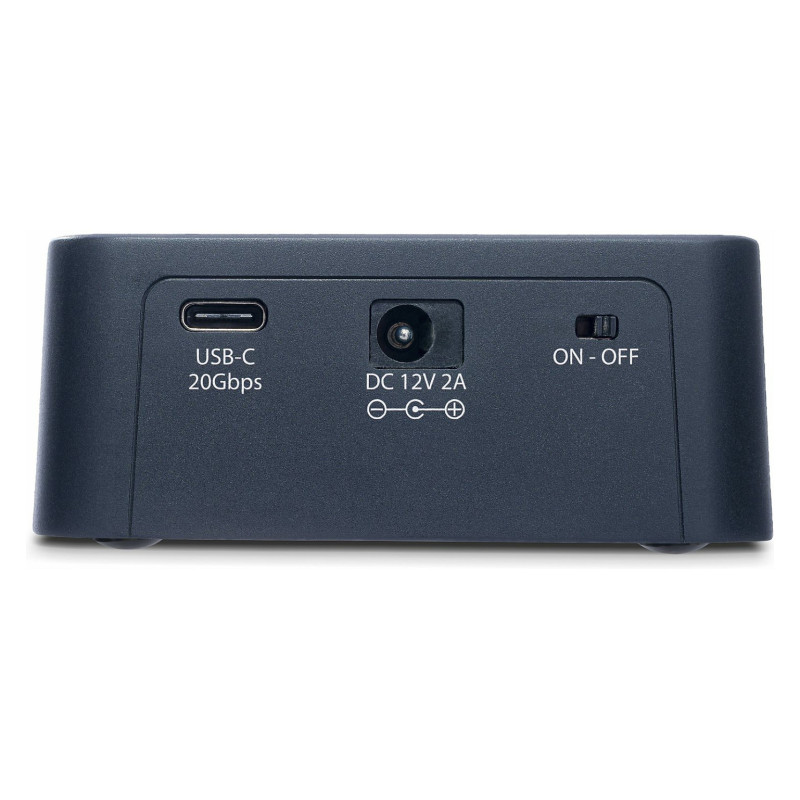

USB connector type: USB Type-C
Duplicator operating modes: Copy
Transfer rate: 20000 MB/s
Transfer rate: 90 GB/min
Feature: Plug and Play
Chipset: JMS586U
Number of fans: 1 fan(s)
Fan diameter: 6 cm
LED indicators: Yes

Hard drive

Feature: SSD support
SSD interface: M.2

Power

Power consumption (typical): 0.1 W
AC input voltage: 100 - 240 V
Input current: 0.6 A
Output voltage: 12 V
Output current: 2 A
Power plug type: Type M
Included power plug types: ANZ, EU, NA, UK

Weight & dimensions

Dimensions (WxDxH): 77 x 77 x 44 mm
Weight: 129 g

Packaging data

Package width: 160 mm
Package depth: 90 mm
Package height: 95 mm
Package weight: 140 g

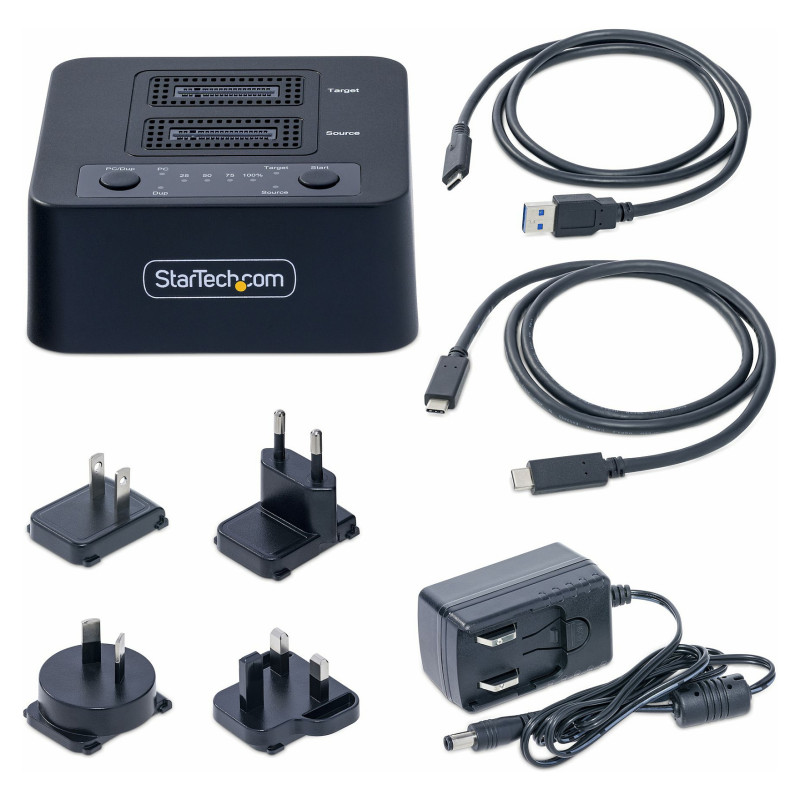

Packaging content

Cables included: USB Type-A to USB Type-C, USB Type-C to USB Type-C
Feature: AC adapter included
Feature: Manual

Operational conditions

Operating relative humidity (H-H): 20 - 80%
Operating temperature (T-T): 5 - 55 °C
Storage temperature (T-T): -20 - 55 °C

Sustainability

Feature: Sustainability compliance

Technical details

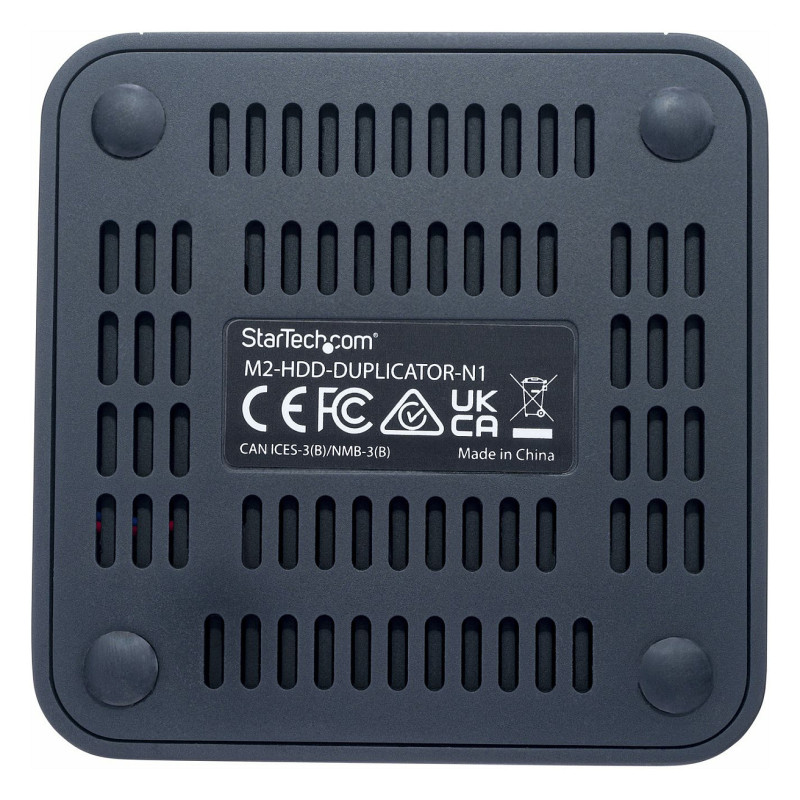

Compliance certificates: RoHS

Logistics data

Master (outer) case length: 343 mm
Master (outer) case width: 500 mm
Master (outer) case height: 228 mm
Products per master (outer) case: 20 pc(s)
