„Shelly Pro 3“ elektros relė

Shelly Pro 3. Product type: Smart relay, Product colour: Black, Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n). Power consumption (typical): 3 W, Maximum current: 48 A, AC input voltage: 110 - 240 V. Dimensions (WxDxH): 59 x 53 x 96 mm

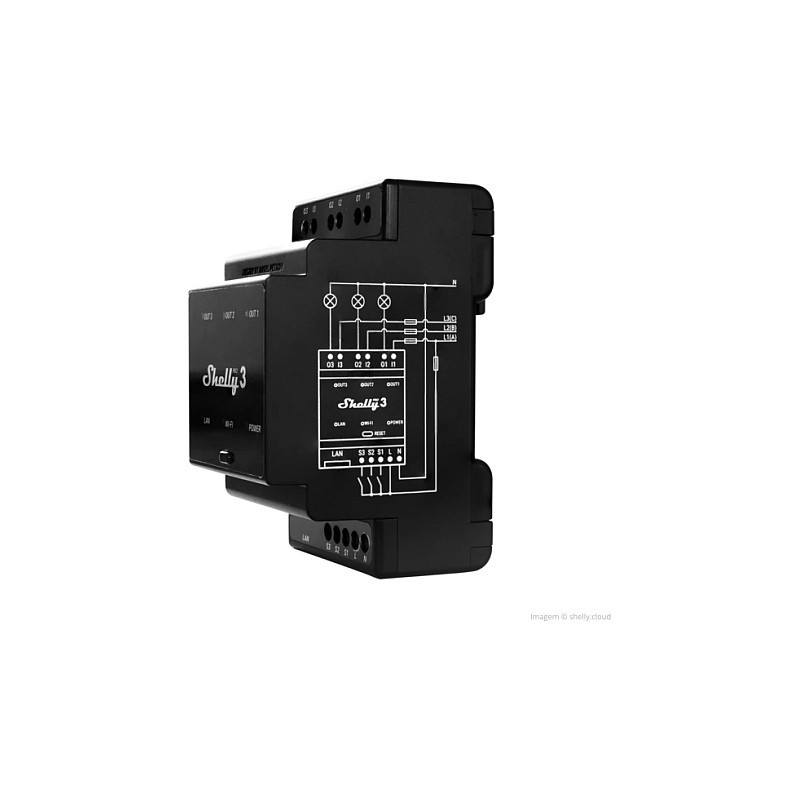

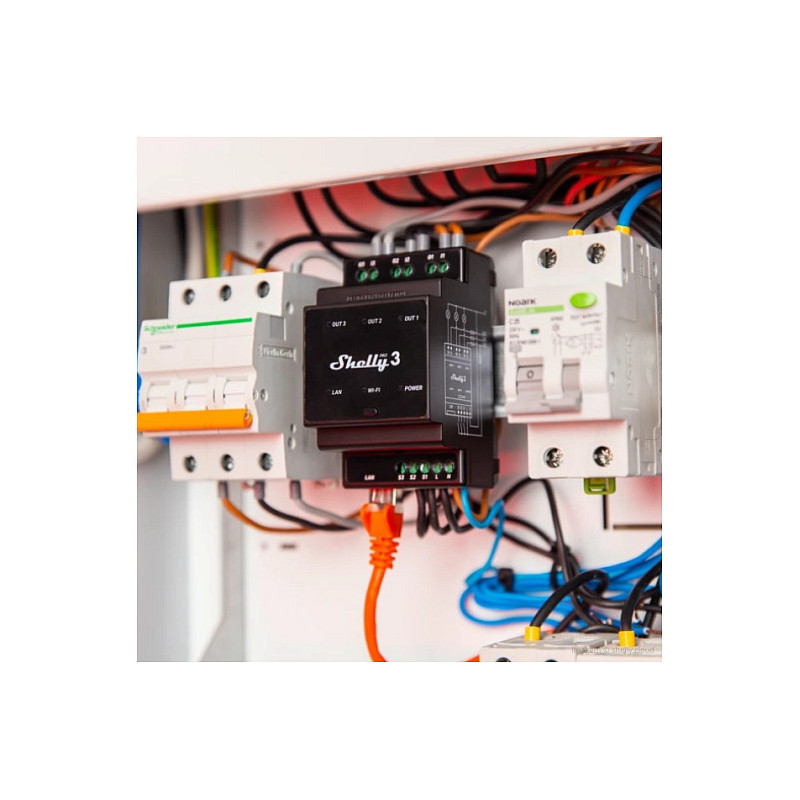

Shelly Pro 3 is a DIN rail mountable 3-channel smart relay with potential-free contacts, capable of switching 3 completely independent circuits, including 3-phase ones. Enhanced with all the gen2 firmware flexibility and LAN connectivity, it provides professional integrators with many more options for end customer solutions. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services.

Shelly Pro 3 can be accessed, controlled and monitored remotely from any place where the User has internet connectivity, as long as the device is connected to a Wi-Fi router and the Internet.

Shelly Pro 3 has an embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.

Features

Product type: Smart relay
Product colour: Black
Feature: Wi-Fi
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi frequency: 2.4 GHz
Maximum indoor range: 30 m
Transmitting power: 13.35 dBmW
Channels quantity: 3 channels
Security algorithms: HTTPS
Feature: Weekly schedule
Feature: Sunrise/sunset time
Feature: Intelligent On/Off
Feature: DIN rail mounting
Contact current capacity: 16 A
Feature: Remotely operated
LED indicators: Yes
Frequency band: 2.412 - 2.472
Ethernet LAN (RJ-45) ports: 1
Feature: Scripts supported
Feature: Webhooks (URL actions)
Feature: Bluetooth
Feature: Overheat protection

Power

Power consumption (typical): 3 W
Maximum current: 48 A
AC input voltage: 110 - 240 V
AC input frequency: 50 - 60 Hz
AC output voltage: 240 V
DC voltage range: 30 V

Weight & dimensions

Dimensions (WxDxH): 59 x 53 x 96 mm

Operational conditions

Operating temperature (T-T): -20 - 40 °C
