Shelly 2PM Gen3

Shelly 2PM Gen3. Type: Smart switch, Number of poles: 2P, Connectivity technology: Wireless. AC input voltage: 110 - 240 V, DC voltage range: 24 V, AC input frequency: 50 - 60 Hz. Width: 37 mm, Depth: 42 mm, Height: 16 mm. Quantity per pack: 1 pc(s)

Remotely control and monitor two different electrical circuits, or roller shutters, blinds, and other bi-directional motors from anywhere. Features power monitoring

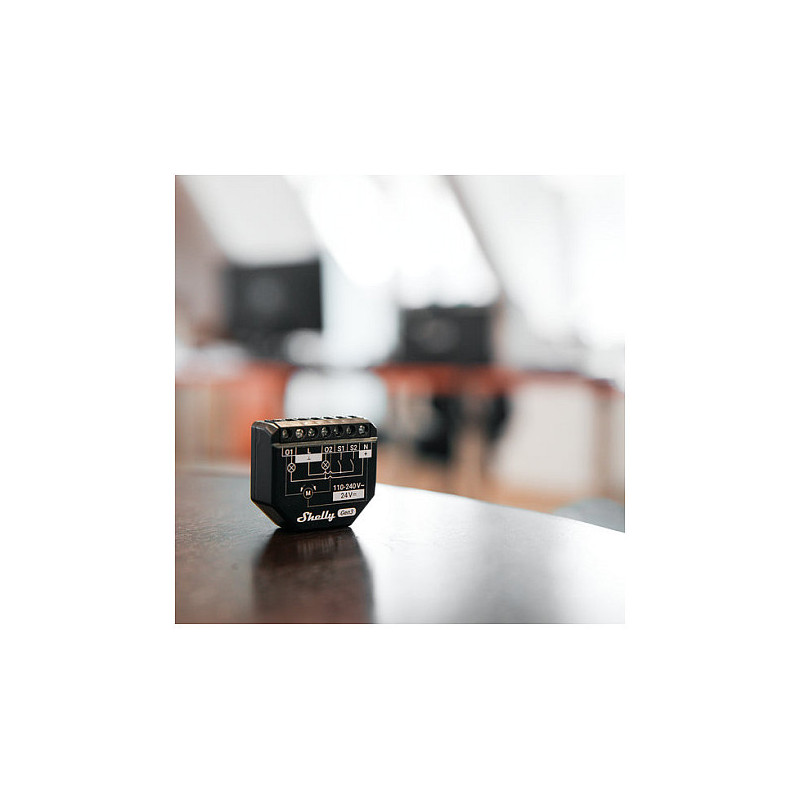

Shelly 2PM Gen3 is a small form factor 2-channel smart switch with power measurement and cover control, which allows remote control of electric appliances through a mobile phone, tablet, PC, or home automation system. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services. The device also has improved processor and increased memory compared to its predecessor. The device supports Venetian blinds.

Shelly 2PM Gen3 can be accessed, controlled and monitored remotely from any place where the User has internet connectivity, as long as the device is connected to a Wi-Fi router and the Internet.

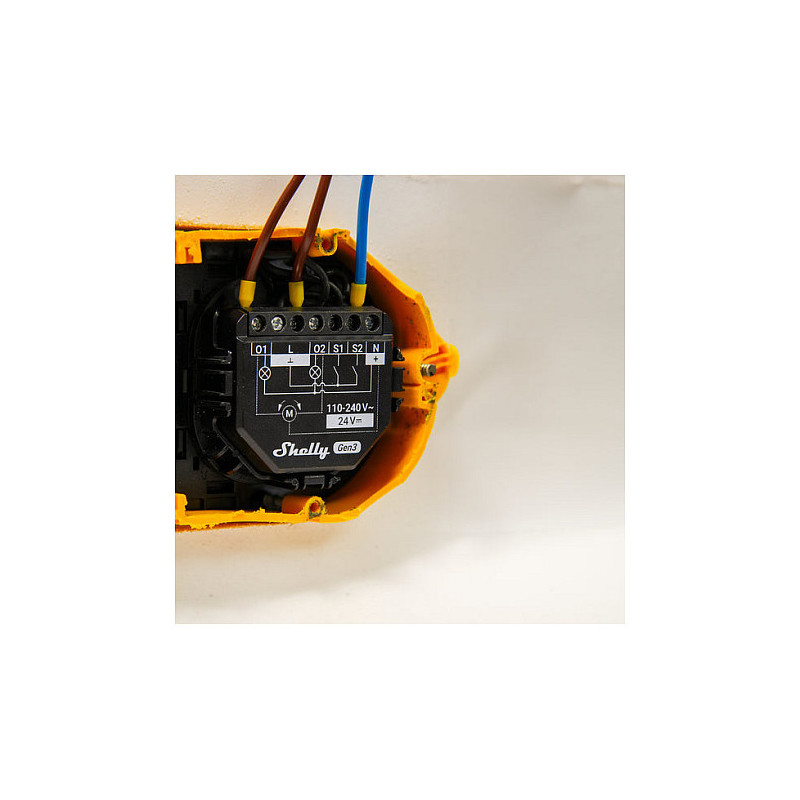

It can be retrofitted into standard electrical wall boxes, behind power sockets and light switches or other places with limited space.

Shelly 2PM Gen3 has embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.

Features

Type: Smart switch
Number of poles: 2P
Connectivity technology: Wireless
Radio frequency: 2402 MHz
Maximum indoor range: 10 m
Maximum outdoor range: 30 m
Product colour: Black
Feature: Suitable for indoor use
Feature: Wi-Fi

Power

AC input voltage: 110 - 240 V
DC voltage range: 24 V
AC input frequency: 50 - 60 Hz
Nominal current output: 10 A

Weight & dimensions

Width: 37 mm
Depth: 42 mm
Height: 16 mm
Weight: 30 g

Operational conditions

Operating temperature (T-T): -20 - 40 °C

Packaging data

Quantity per pack: 1 pc(s)
