XPG SX8200 Pro

XPG SX8200 Pro. SSD capacity: 512 GB, SSD form factor: M.2, Read speed: 3500 MB/s, Write speed: 2300 MB/s, Component for: PC/Laptop

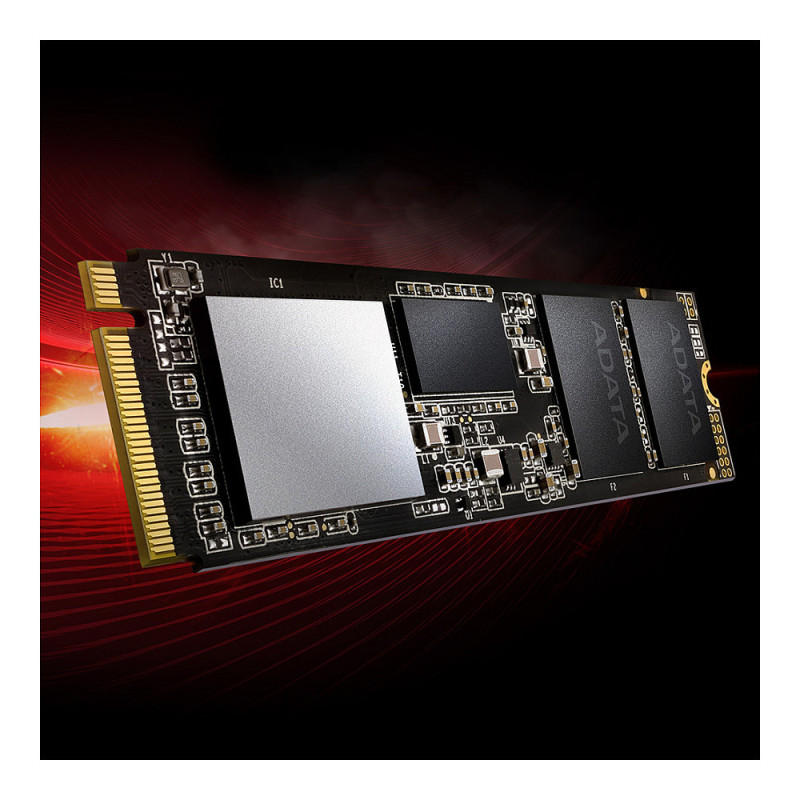

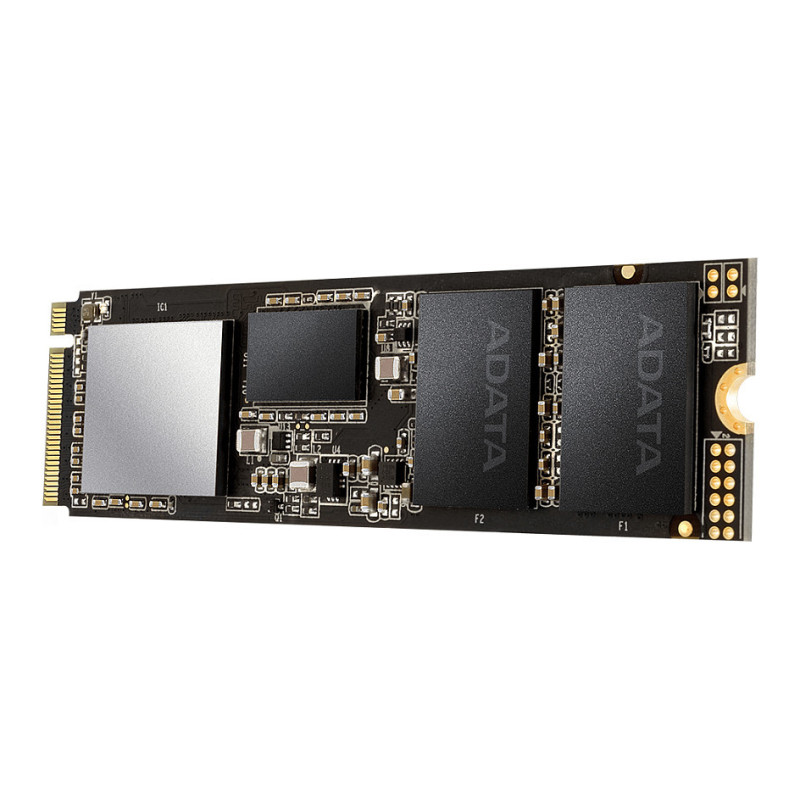

The SX8200 Pro M.2 2280 SSD is XPG's fastest SSD to date and is designed for avid PC enthusiasts, gamers, and overclockers. It features an ultra-fast PCIe Gen3x4 interface that offers sustained peak read/write speeds of 3500/3000MB per second, outpacing SATA 6Gb/s by a wide margin. Supporting NVMe 1.3, the SX8200 Pro delivers excellent random read/write performance and multi-tasking capabilities. With SLC caching, a DRAM Cache buffer, E2E Data Protection, and LDPC ECC, it maintains high speeds and data integrity, even during highly intensive applications such as gaming rendering, and overclocking.

In Pursuit of Higher Performance

With intelligent SLC caching and a DRAM cache buffer, the SX8200 Pro can accelerate sequential and 4K random read/write speeds to shorten system response time, making it especially suitable for multimedia editing and gaming.

3D NAND Flash - Higher Capacity, Efficiency, and Reliability

Built with 3D NAND Flash the SX8200 Pro comes in capacities of up to 2TB, offers higher efficiency, and is more reliable than 2D SSDs. Thanks to the support of data protection technologies, it also features a high TBW and excellent durability to meet the demands of various applications.

LDPC ECC Ensures Data Integrity

The SX8200 Pro supports LDPC (Low-Density Parity-Check) error correcting code technology to detect and fix a wider range of data errors for more accurate data transfers and a longer SSD lifespan.

E2E Data Protection and RAID Engine

Supporting E2E (End-to-End) Data Protection and RAID Engine, the SX8200 Pro ensures data safety, integrity, and delivers an extended lifespan.

Features

NVMe version: 1.3
NAND flash type: TLC (Triple Level Cell)
SSD capacity: 512 GB
SSD form factor: M.2
Interface: PCI Express 3.0
Feature: NVMe
Memory type: 3D TLC
Component for: PC/Laptop
Read speed: 3500 MB/s
Write speed: 2300 MB/s
Random read (4KB): 390000 IOPS
Random write (4KB): 380000 IOPS
PCI Express interface data lanes: x4
Feature: RAID support
Feature: ECC
Feature: Low-density parity-check (LDPC)
Feature: End-to-End Data Protection
Mean time between failures (MTBF): 2000000 h

Weight & dimensions

Width: 80 mm
Depth: 22 mm
Height: 3.5 mm
Weight: 8 g

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 95%
Operating shock: 1500 G

Other features

Product colour: Black
Compliance certificates: RoHS

Logistics data

Harmonized System (HS) code: 84717070
