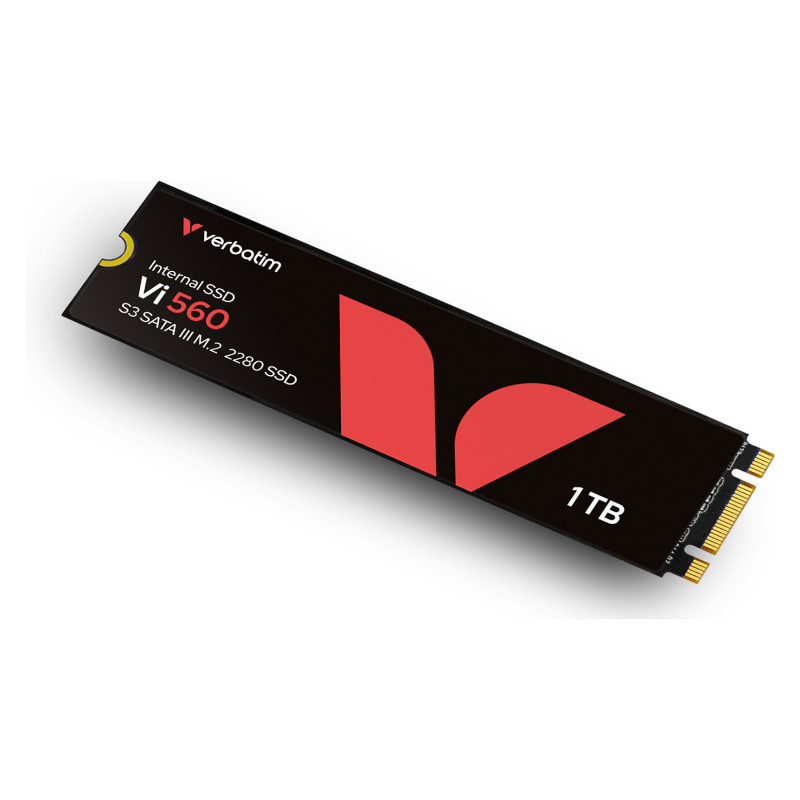

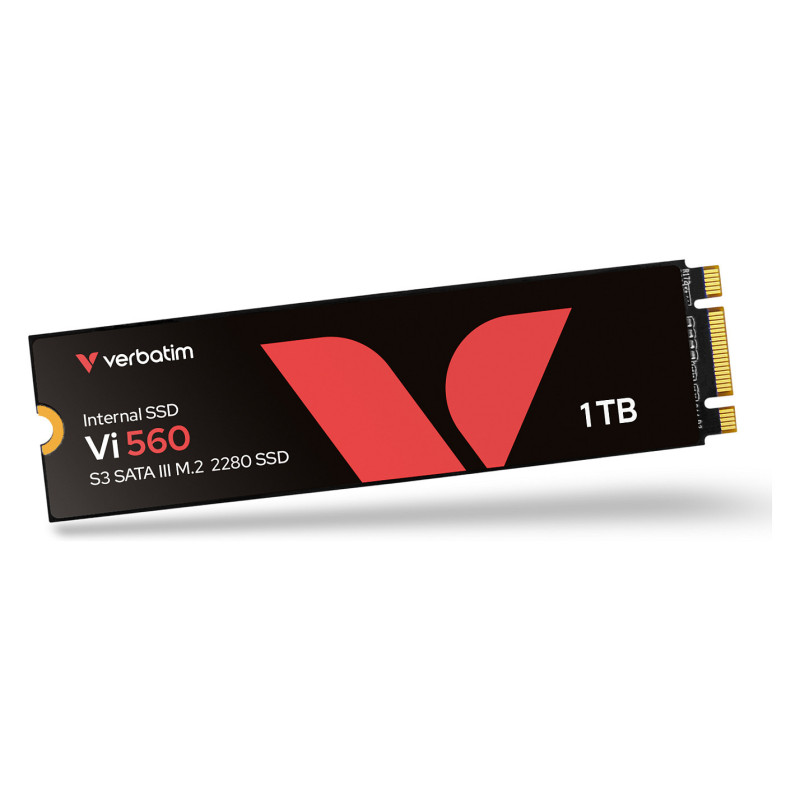

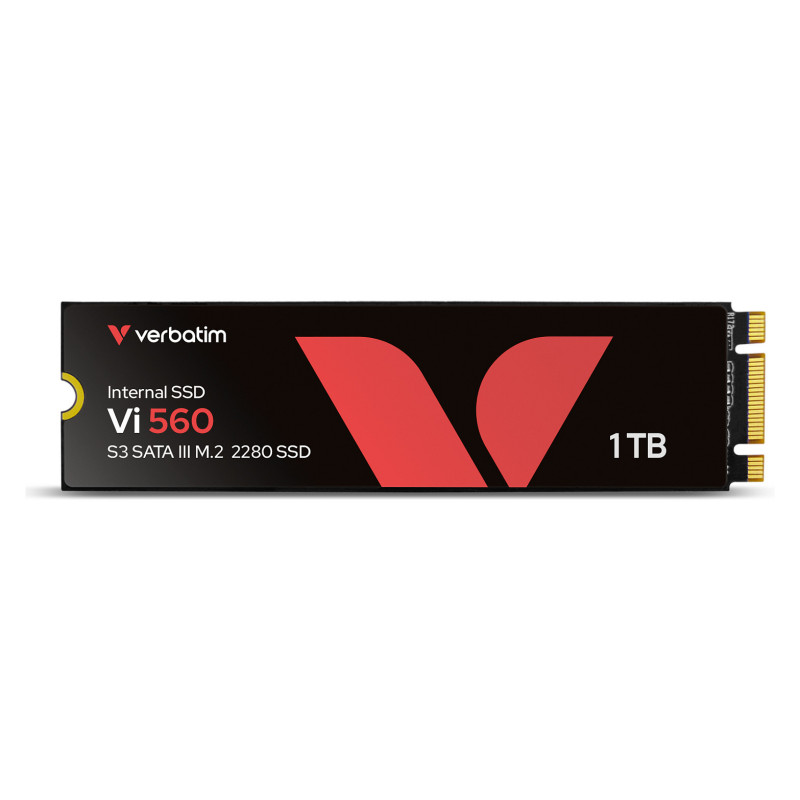

Verbatim Vi560 S3

Verbatim Vi560 S3 M.2 SSD 1TB. SSD capacity: 1 TB, SSD form factor: M.2, Read speed: 520 MB/s, Write speed: 490 MB/s, Component for: PC/Laptop

Verbatim SATA III M.2 2280 internal solid state drives can revitalise the performance of your system. Using the latest 3D NAND technology and compact dimensions, they offer the perfect way to upgrade, particular for small or thin form factor devices such as Ultrabooks and Notebooks.

The Vi560 delivers fast system boot-ups, quick application responses and rapid transfer speeds, with read speeds of up to 560MB/s, which is 20 times faster than a standard hard drive. With a MTBF (mean time before failure) rating of 1.5 million hours and up to 450 TBW (terabytes written), the Vi560 is a high spec SSD that can be relied upon. (Recommended for professional installation.)

Features

SSD capacity: 1 TB
SSD form factor: M.2
Interface: Serial ATA III
Memory type: 3D NAND
Component for: PC/Laptop
Read speed: 520 MB/s
Write speed: 490 MB/s
Random read (4KB): 102000 IOPS
Random write (4KB): 102000 IOPS
M.2 key ID: E
Mean time between failures (MTBF): 1500000 h
Windows operating systems supported: Windows 10, Windows 7, Windows 8
Linux operating systems supported: Yes

Power

Power consumption (read): 1.8 W
Power consumption (write): 1.6 W
Power consumption (idle): 0.62 W

Weight & dimensions

Width: 80 mm
Depth: 22 mm
Height: 2.3 mm
Weight: 9 g

Packaging data

Package width: 117 mm
Package depth: 25 mm
Package height: 148 mm
Package weight: 43 g

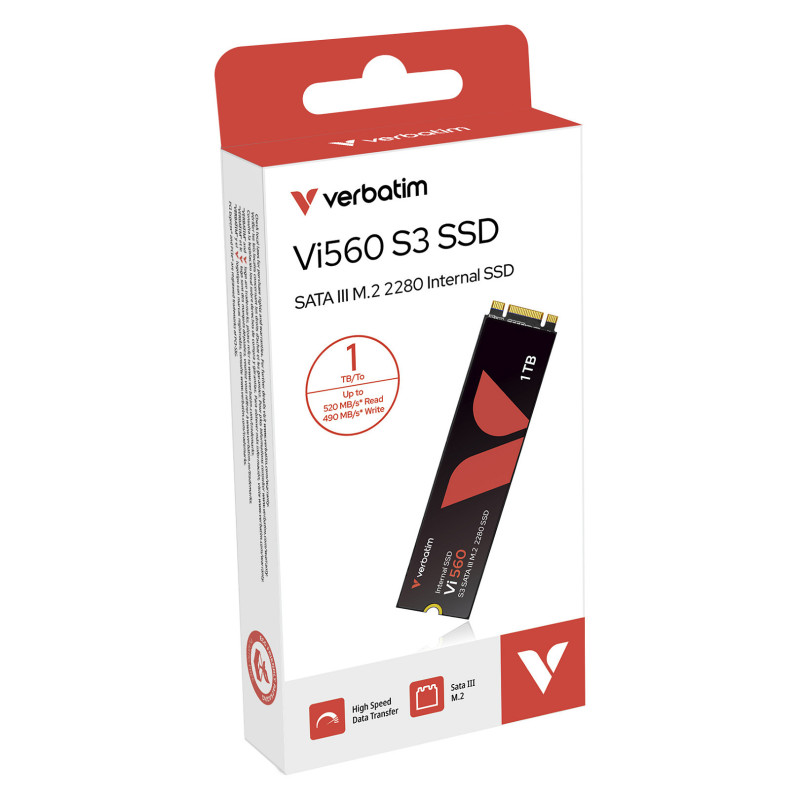

Package type: Hanging box

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 95%
Non-operating shock: 1500 G

Other features

Compliance certificates: RoHS

Logistics data

Master (outer) cases per pallet: 495 pc(s)
Layers per pallet: 5 pc(s)
Products per pallet: 990 pc(s)
Master (outer) case width: 128 mm
Master (outer) case length: 70 mm
Harmonized System (HS) code: 84717070
Master (outer) case height: 188 mm
Master (outer) case gross weight: 120 g
Products per master (outer) case: 2 pc(s)
