PNY CS2230

PNY CS2230. SSD capacity: 500 GB, SSD form factor: M.2, Read speed: 3300 MB/s, Write speed: 2500 MB/s, Component for: PC/Laptop

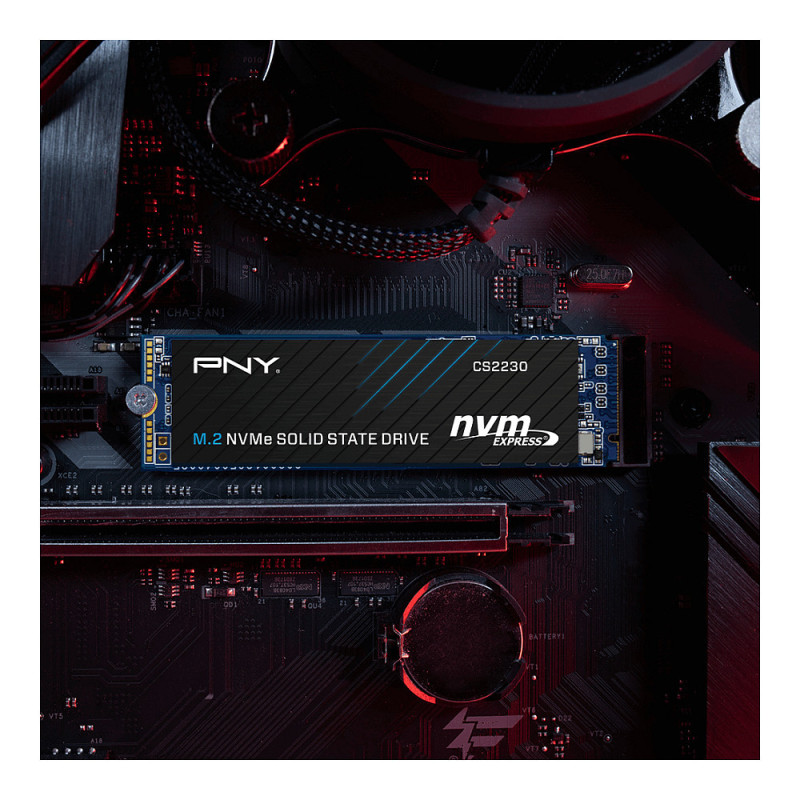

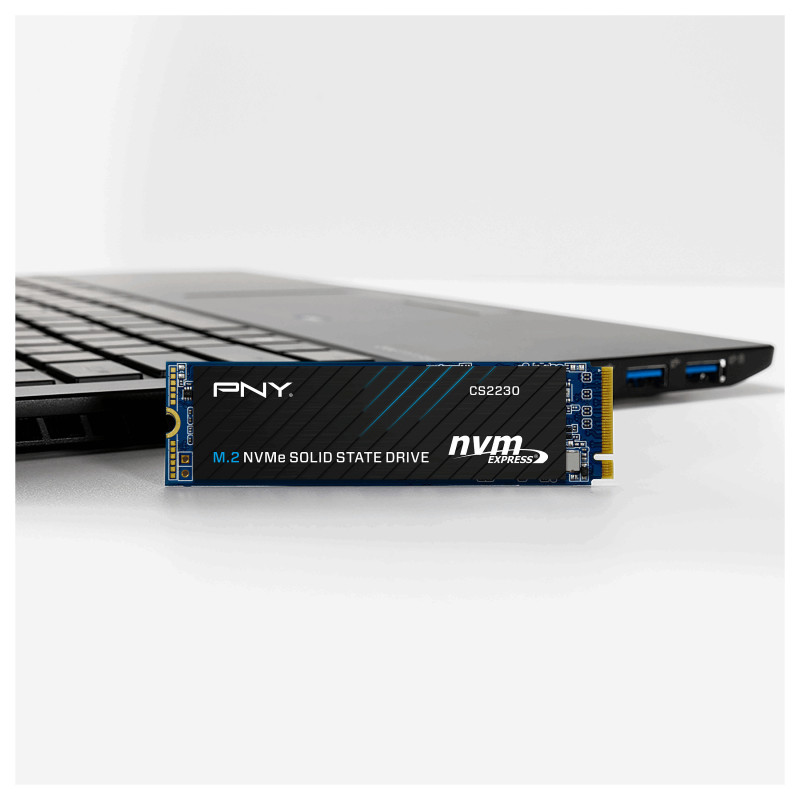

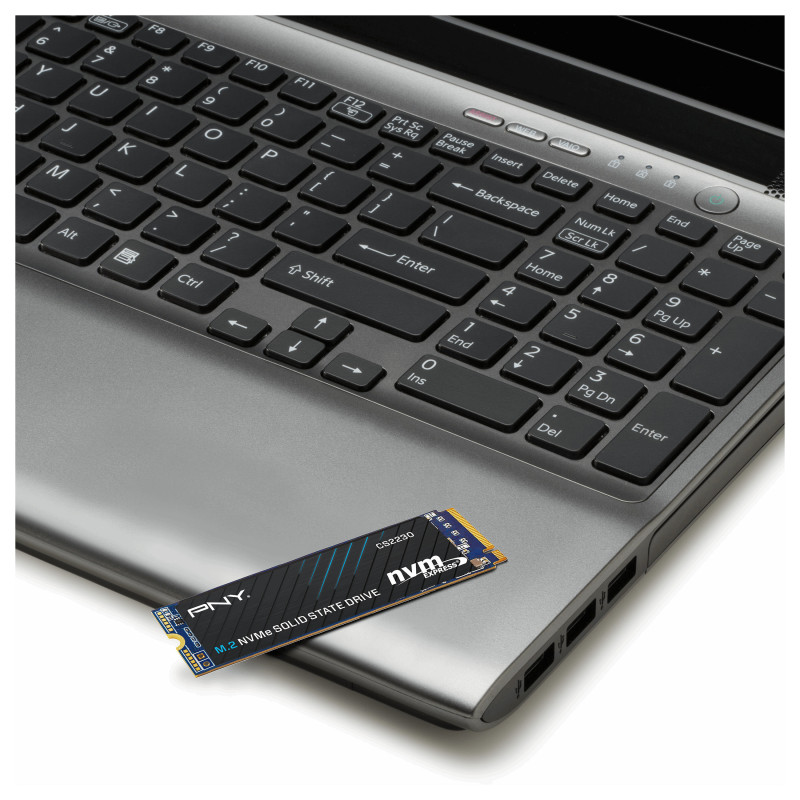

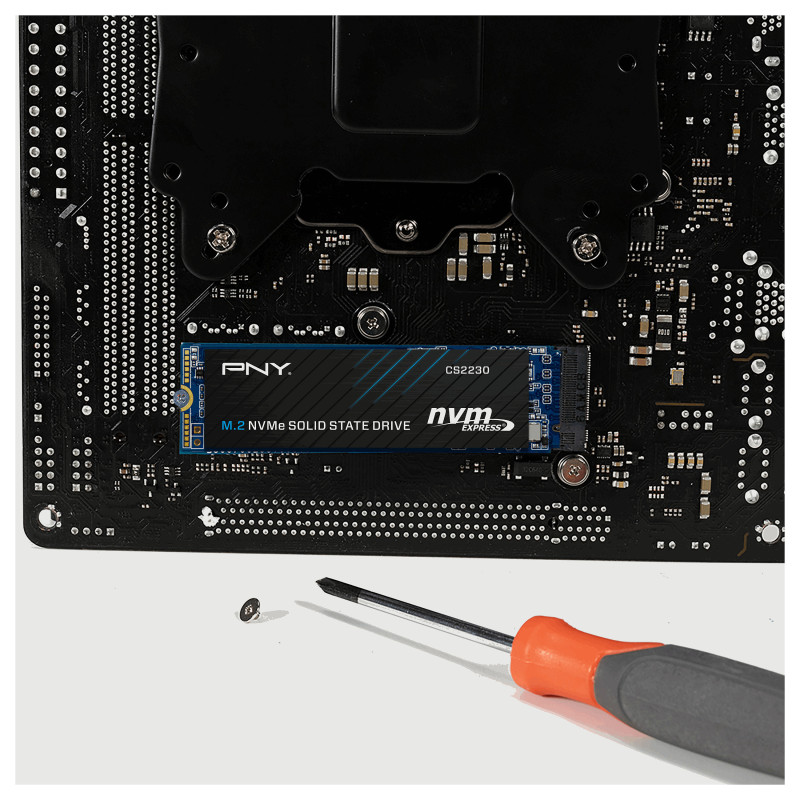

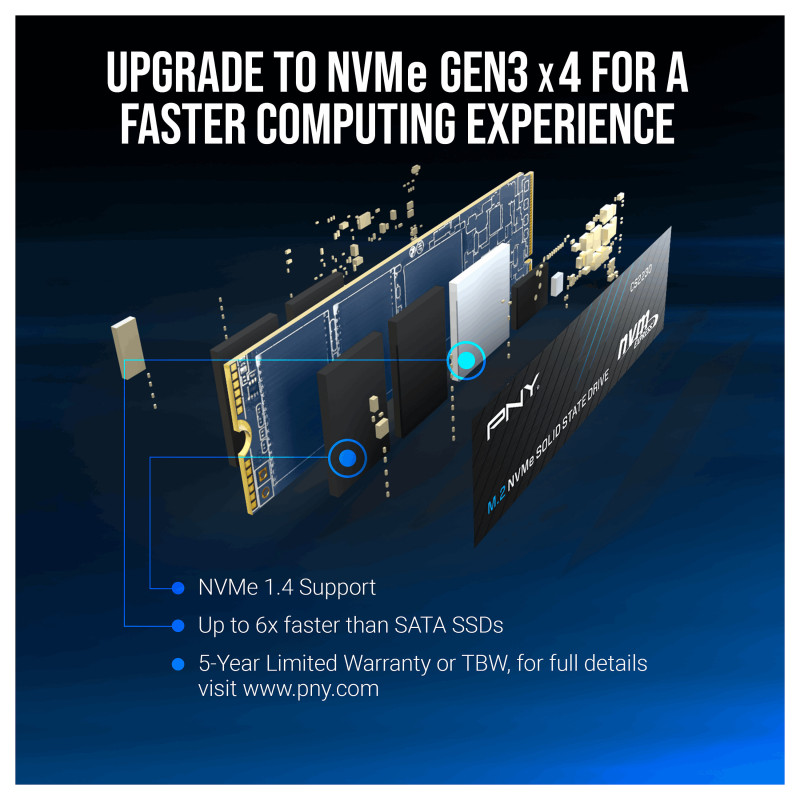

The PNY CS2230 M.2 NVMe SSD is an excellent choice for an NVMe upgrade from a SATA based solid state drive (SSD) in an existing NVMe enabled PC or MAC desktop or laptop computer. The CS2230 drive is designed to be a SATA SSD replacement to help realize faster boot times, quicker application launches, and better overall system performance. Do more in less time with NVMe; boot up, power down, and load applications up to 6 times faster than with SATA based SSD's. With no moving parts, the PNY CS2230 M.2 NVMe SSD is highly durable, less likely to fail, and supports a 5-Year Limited Warranty or TBW.

Features

NVMe version: 1.4
SSD capacity: 500 GB
SSD form factor: M.2
Interface: PCI Express 3.0
Feature: NVMe
Memory type: 3D NAND
Component for: PC/Laptop

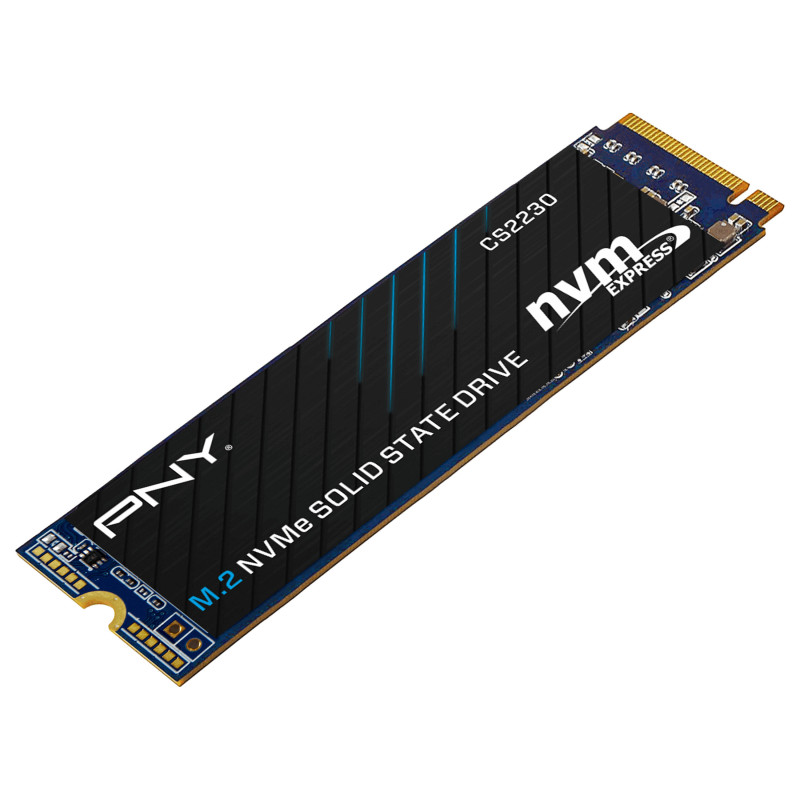

M.2 SSD size: 2280 (22 x 80 mm)
Read speed: 3300 MB/s
Write speed: 2500 MB/s
PCI Express interface data lanes: x4
Feature: S.M.A.R.T. support
Feature: TRIM support
Feature: ECC
Feature: End-to-End Data Protection
Mean time between failures (MTBF): 1000000 h

Weight & dimensions

Width: 80 mm
Depth: 22 mm
Height: 4 mm
Weight: 6.6 g

Packaging data

Package type: Hanging box

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -40 - 85 °C
Minimum operating temperature: 0 °C
Maximum operating temperature: 70 °C
