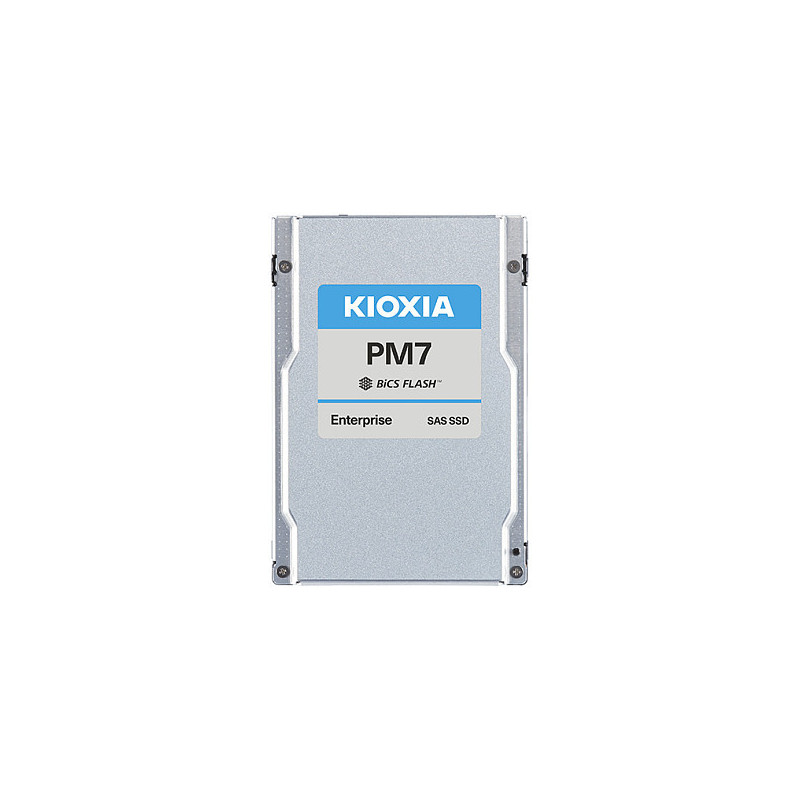

Kioxia PM7-R

Kioxia PM7-R. SSD capacity: 7.68 TB, SSD form factor: 2.5", Read speed: 4200 MB/s, Write speed: 4100 MB/s, Data transfer rate: 22.5 Gbit/s, Component for: Server/workstation

Enterprise SAS SSDSAS SSD 2.5-inch
PM7-R Series 24G SAS Enterprise SSD is optimized for read intensive applications, including web services, data warehousing, streaming media and video on demand. The series provides high levels of performance, reliability and endurance, and is designed to minimize total cost of ownership.

Featuring KIOXIA 112-layer BiCS FLASH™ 3D flash memory, this 7th generation enterprise SAS SSD PM7-R Series offers 1 DWPD (Drive Writes Per Day) with capacities up to 30.72 TB.

Features

SSD capacity: 7.68 TB
SSD form factor: 2.5"
Interface: SAS
Memory type: BiCS FLASH TLC
Component for: Server/workstation
Feature: Hardware encryption
Data transfer rate: 22.5 Gbit/s
Read speed: 4200 MB/s
Write speed: 4100 MB/s
Random read (4KB): 720000 IOPS
Random write (4KB): 175000 IOPS
Feature: End-to-End Data Protection
Mean time between failures (MTBF): 2500000 h

Power

Operating voltage: 12 V
Power consumption (average): 5 W

Weight & dimensions

Width: 68.8 mm
Depth: 100.5 mm
Height: 15 mm
Weight: 150 g

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Operating relative humidity (H-H): 5 - 95%
Operating vibration: 2.17 G
Operating shock: 1000 G
