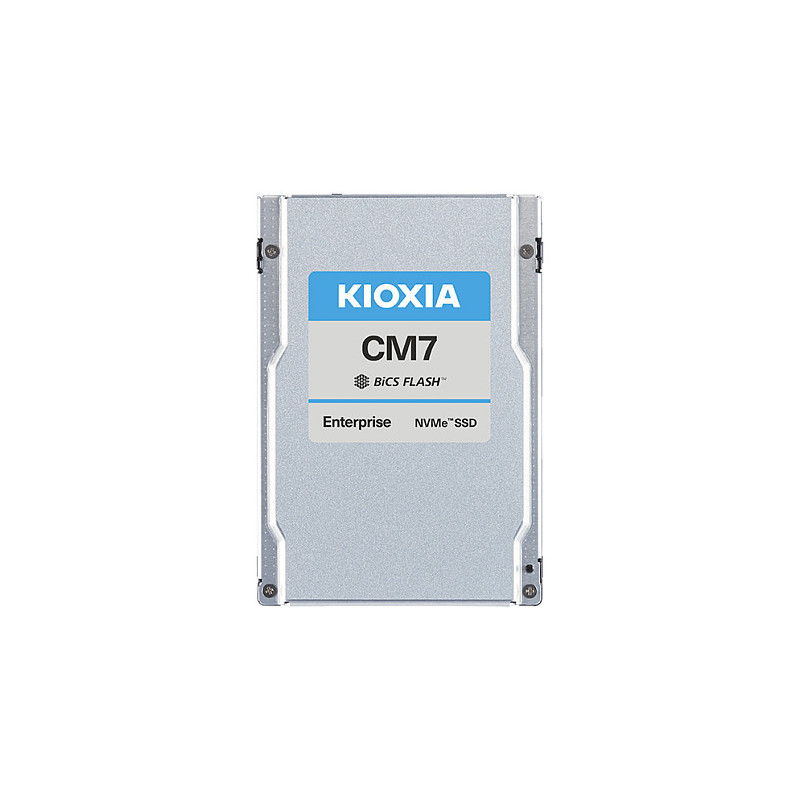

Kioxia CM7-R

Kioxia CM7-R. SSD capacity: 1.92 TB, SSD form factor: 2.5", Read speed: 14000 MB/s, Write speed: 3500 MB/s, Component for: Server/workstation

KIOXIA CM7-R Series is a read-intensive SSD that is optimized to support a broad range of enterprise applications and associated workloads, including business intelligence, online transaction processing, and software defined storage and virtualization. Built on PCIe® 5.0 (for U.3 host: PCIe® 4.0) and NVMe™ 2.0 technology, the CM7 Series SSDs deliver excellent performance up to 2,700K IOPS (random read) and 310K IOPS (random write).

Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, the CM7-R Series of enterprise NVMe™ SSDs delivers 1 DWPD (Drive Writes Per Day) of endurance and support storage capacities up to 30.72 TB, making them ideally suited for read-intensive enterprise applications.

Features

NVMe version: 2.0
SSD capacity: 1.92 TB
SSD form factor: 2.5"
Interface: PCI Express 5.0
Feature: NVMe
Memory type: BiCS FLASH TLC
Component for: Server/workstation
Read speed: 14000 MB/s
Write speed: 3500 MB/s
Random read (4KB): 2000000 IOPS
Random write (4KB): 155000 IOPS
PCI Express interface data lanes: x4
Mean time between failures (MTBF): 2500000 h

Power

Operating voltage: 12 V
Power consumption (max): 22 W

Weight & dimensions

Width: 69.8 mm
Depth: 100.5 mm
Height: 15 mm
Weight: 130 g

Operational conditions

Operating temperature (T-T): 0 - 76 °C
Storage temperature (T-T): -40 - 85 °C
Minimum operating temperature: 0 °C
Maximum operating temperature: 76 °C
Operating relative humidity (H-H): 5 - 95%
Operating vibration: 2.17 G
Operating shock: 1000 G

Other features

Warranty period: 5 year(s)
