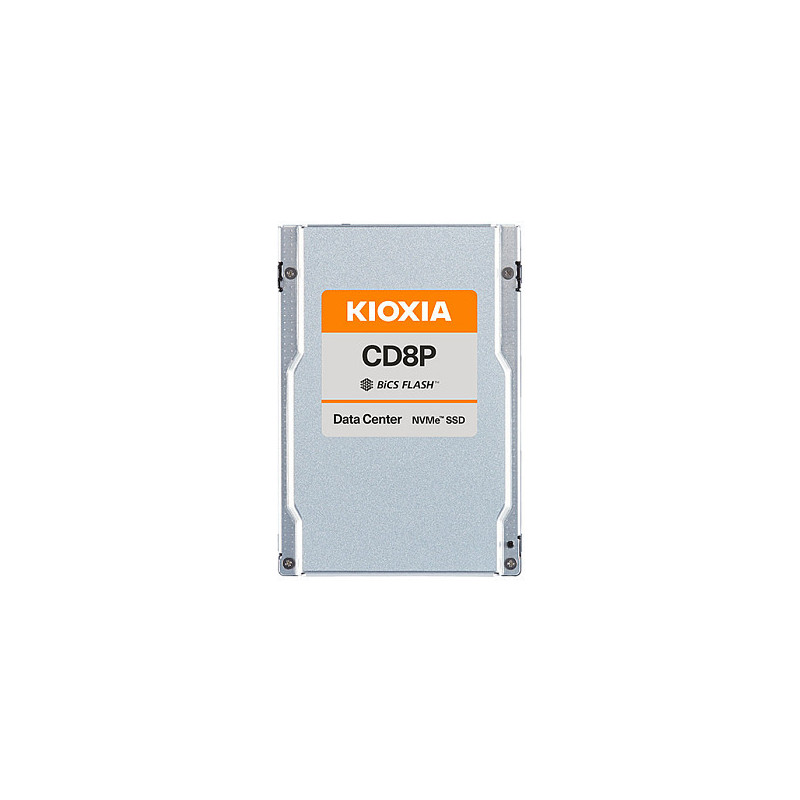

Kioxia CD8P-V

Kioxia CD8P-V. SSD capacity: 1.6 TB, SSD form factor: 2.5", Component for: Server/workstation

KIOXIA CD8P-V Series is a mixed use data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing and virtualization. Built with a PCIe® 5.0 (32 GT/s x4) interface, the CD8P-V Series SSDs deliver consistent performance up to 2,000K IOPS (random read) and 400K IOPS (random write), and realize 60 % to 80 % increase in sequential read performance when compared to previous generation PCIe® 4.0 SSDs (KIOXIA CD8-V Series).

Featuring KIOXIA BiCS FLASH™ generation 5 TLC flash memory, CD8P-V 2.5-inch form factor SSDs deliver 3 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 12.8 TB, making them well-suited for hyperscale data center applications.

Features

NVMe version: 2.0
SSD capacity: 1.6 TB
SSD form factor: 2.5"
Interface: PCI Express 5.0
Feature: NVMe
Memory type: BiCS FLASH TLC
Component for: Server/workstation
Target workload: Mixed Use (MU)
Random read (4KB): 1600 IOPS
Random write (4KB): 300 IOPS
Feature: H/W PLP function
Feature: End-to-End Data Protection
Mean time between failures (MTBF): 2500000 h
Drive writes per day (DWPD): 3
Protection features: Shock resistant, Vibration proof

Power

Operating voltage: 12 V
Power consumption (max): 18 W
Power consumption (standby): 5 W

Weight & dimensions

Width: 69.8 mm
Depth: 15 mm
Height: 100.5 mm
Weight: 130 g

Operational conditions

Operating temperature (T-T): 0 - 76 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 95%
Operating vibration: 2.17 G
Operating shock: 1000 G

Other features

Product colour: Silver
Warranty period: 5 year(s)
