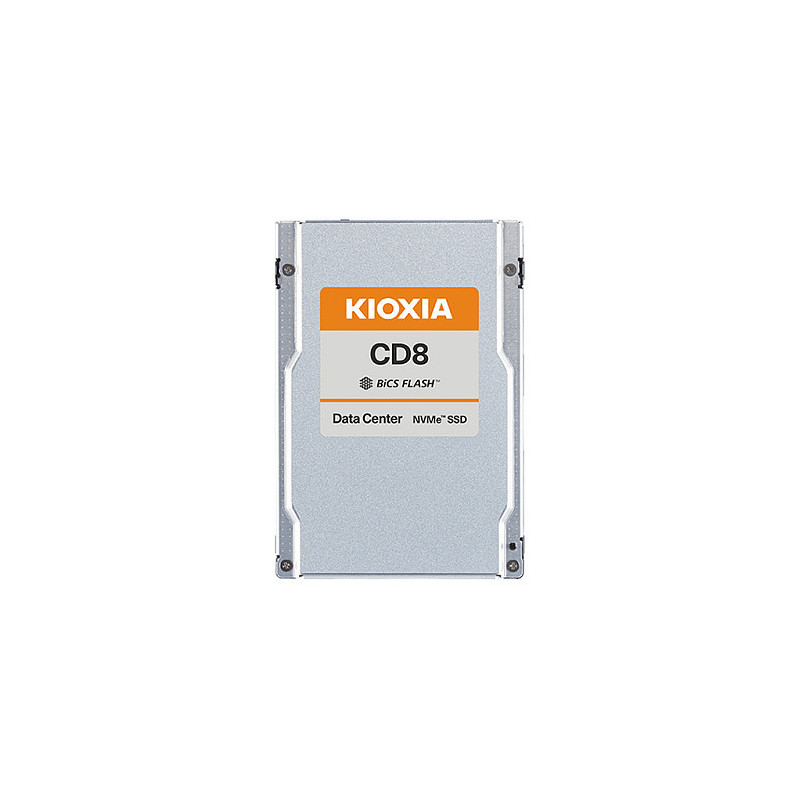

Kioxia CD8-V

Kioxia CD8-V. SSD capacity: 1.6 TB, SSD form factor: 2.5", Read speed: 7200 MB/s, Write speed: 3500 MB/s, Component for: Server/workstation

The CD8-V Series is a mixed-use data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing and virtualization. Built with a PCIe® 4.0 (16 GT/s x4) interface, the CD8-V Series SSDs deliver consistent performance up to 1,250K IOPS (random read) and 380K IOPS (random write).

Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, CD8-V 2.5-inch form factor SSDs deliver 3 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 12.8 TB in a 2.5-inch form factor, making them well-suited for hyperscale data center applications.

Features

NVMe version: 1.4
SSD capacity: 1.6 TB
SSD form factor: 2.5"
Interface: PCI Express 4.0
Feature: NVMe
Memory type: BiCS FLASH TLC
Component for: Server/workstation
Read speed: 7200 MB/s
Write speed: 3500 MB/s
Random read (4KB): 1250000 IOPS
Random write (4KB): 310000 IOPS
PCI Express interface data lanes: x4
Mean time between failures (MTBF): 2500000 h

Power

Operating voltage: 12 V
Power consumption (max): 13 W

Weight & dimensions

Width: 69.8 mm
Depth: 100.5 mm
Height: 15 mm
Weight: 130 g

Operational conditions

Operating temperature (T-T): 0 - 75 °C
Storage temperature (T-T): -40 - 85 °C
Minimum operating temperature: 0 °C
Maximum operating temperature: 75 °C
Operating relative humidity (H-H): 5 - 95%
Operating vibration: 2.17 G
Operating shock: 1000 G

Other features

Warranty period: 5 year(s)
