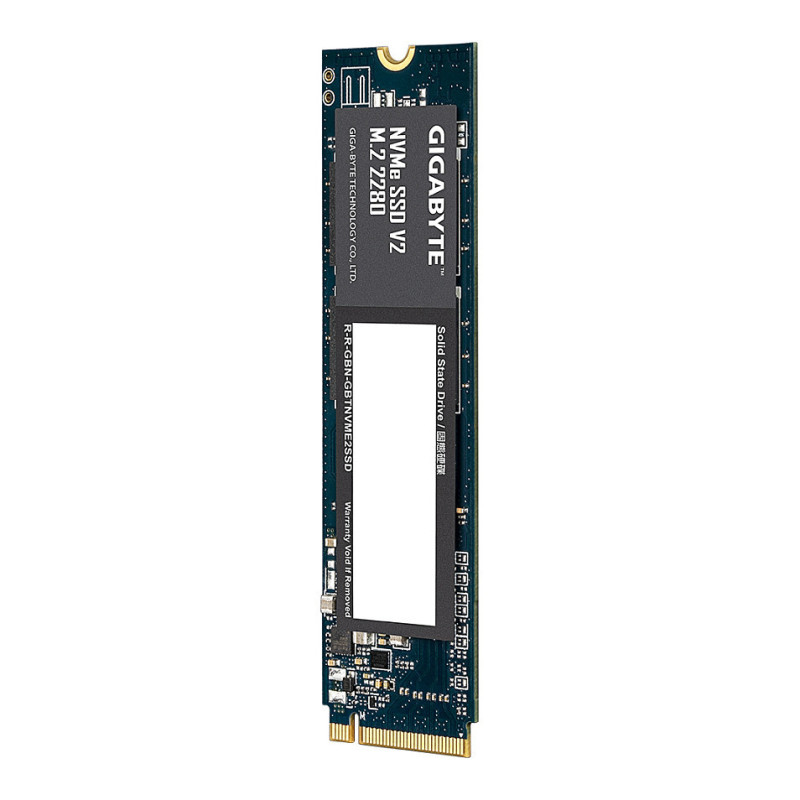

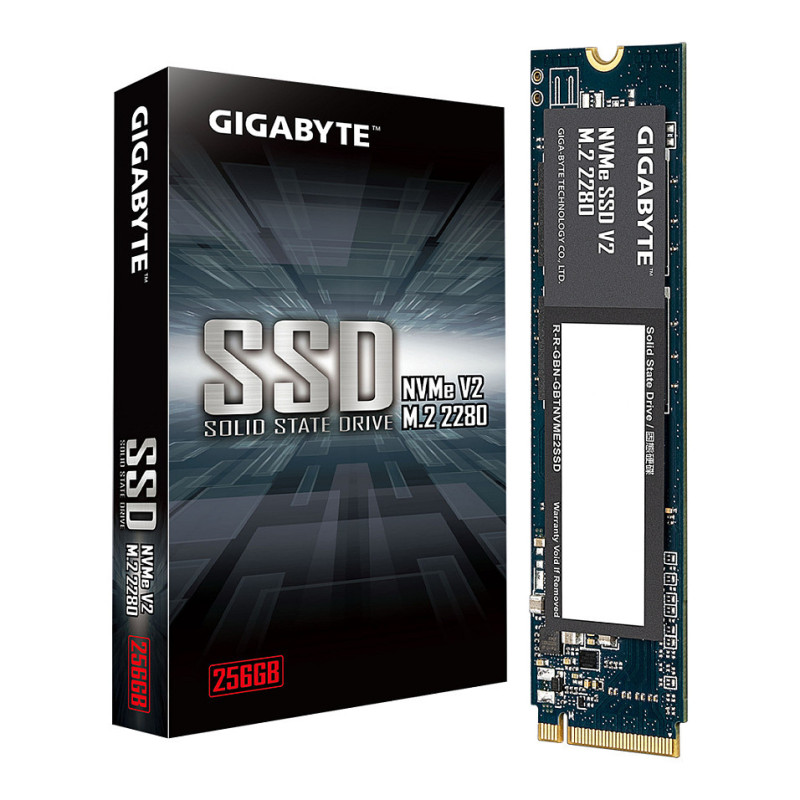

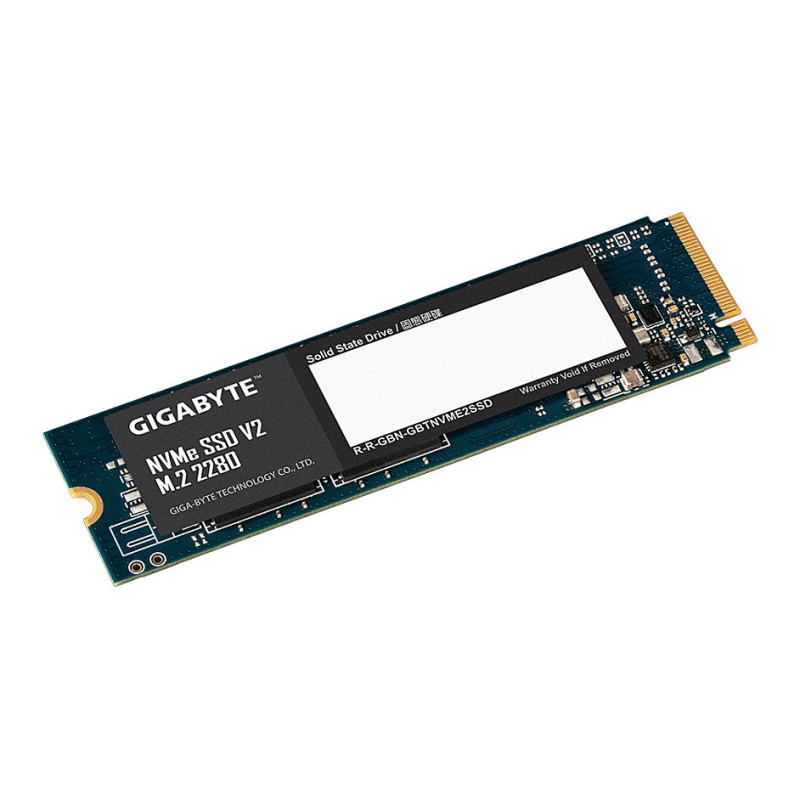

M.2 256GB Gigabyte NVMe V2 M.2 PCI-E

GIGABYTE G3NVMEV2256G. SSD capacity: 256 GB, SSD form factor: M.2, Read speed: 3200 MB/s, Write speed: 1200 MB/s, Component for: PC

Host Memory Buffer (HMB)
The Host Memory Buffer (HMB) feature utilizes the DMA (Direct Memory Access) of PCI Express to allow SSDs to use some of the DRAM on PC system, instead of requiring the SSD to bring its own DRAM.

Breaking the barriers of SATA limitations (256GB)
Outstanding performance
- GIGABYTE NVMe SSD provides performance for your daily computing tasks, boast of best controller & NAND flash that provide.
- Sequential read speeds up to 3200 MB/s.
- Sequential write speeds up to 1200 MB/s.
- GIGABYTE NVMe SSD gives you faster data transferring experience compared to 2.5" SATA solid state drive.

SSD Tool Box
The newly updated SSD Tool Box is an application that helps users monitor SSD Status, provides general information such as model name, FW version, health condition, drive optimization and also detects sensor temperature. Moreover, users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from the Support.

GIGABYTE CONTROL CENTER (GCC)
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.
- Unified software platform for all Gigabyte supported products
- Intuitive user interface for an eased experience
- Modularized control components only for installed hardware
- Auto update function to keep system up to date and support future products

Features

NVMe version: 1.4
SSD capacity: 256 GB
SSD form factor: M.2
Interface: PCI Express 3.0
Feature: NVMe
Memory type: 3D TLC NAND
Component for: PC
M.2 SSD size: 2280 (22 x 80 mm)
Read speed: 3200 MB/s
Write speed: 1200 MB/s
PCI Express interface data lanes: x4
Feature: S.M.A.R.T. support
Feature: TRIM support
Mean time between failures (MTBF): 1500000 h
TBW rating: 100

Power

Power consumption (idle): 0.035 W

Weight & dimensions

Width: 22 mm
Depth: 80 mm
Height: 2.3 mm

Packaging data

Package type: Box

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -40 - 85 °C
