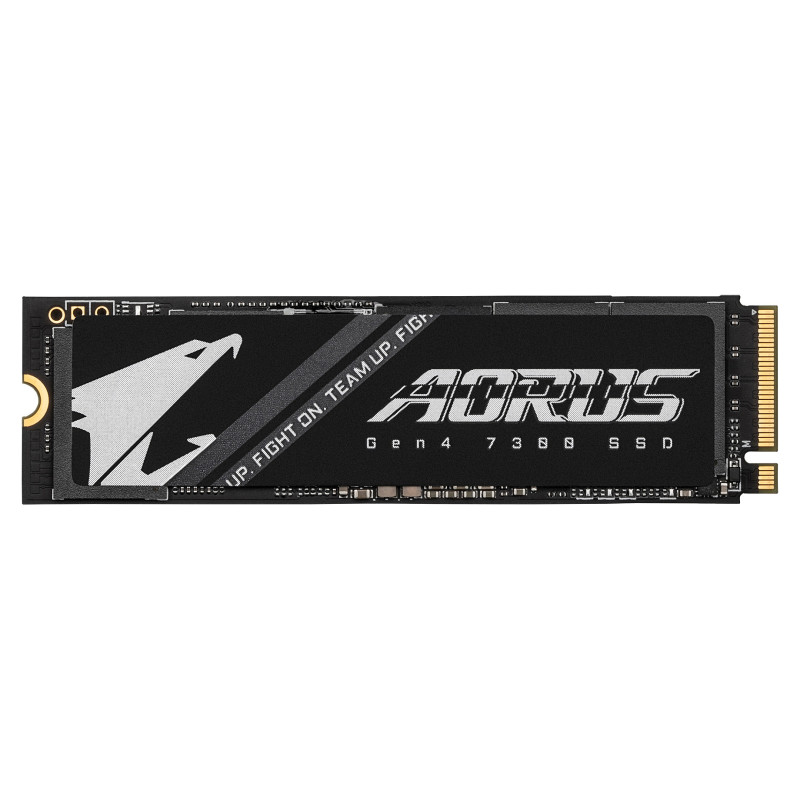

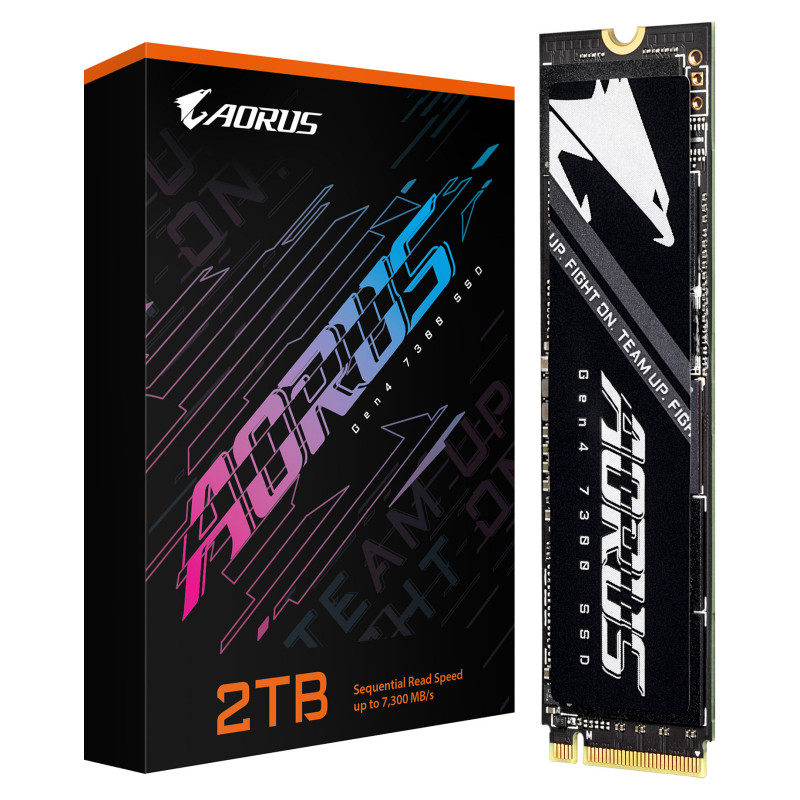

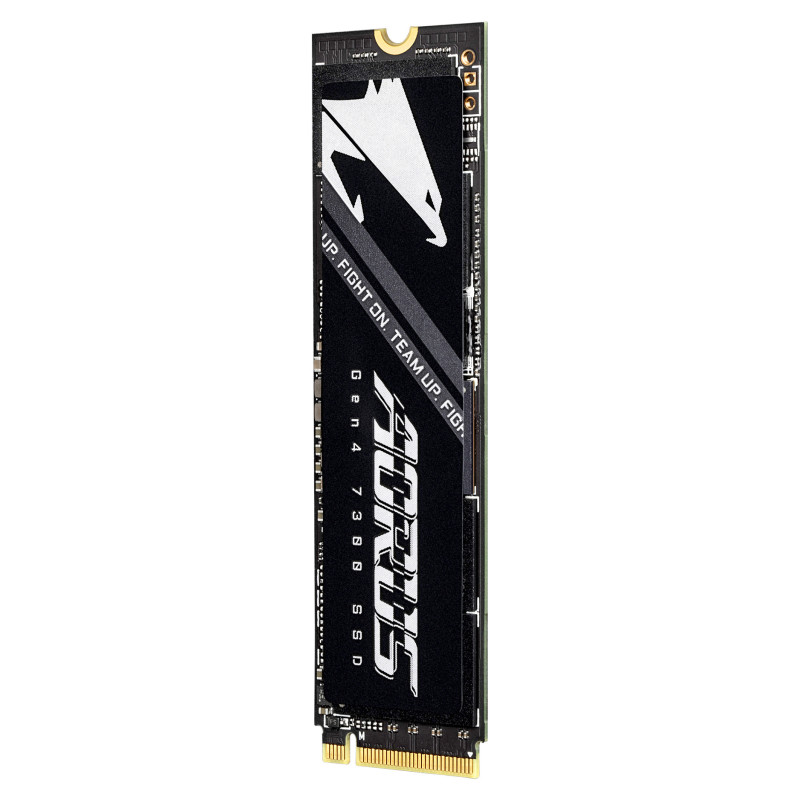

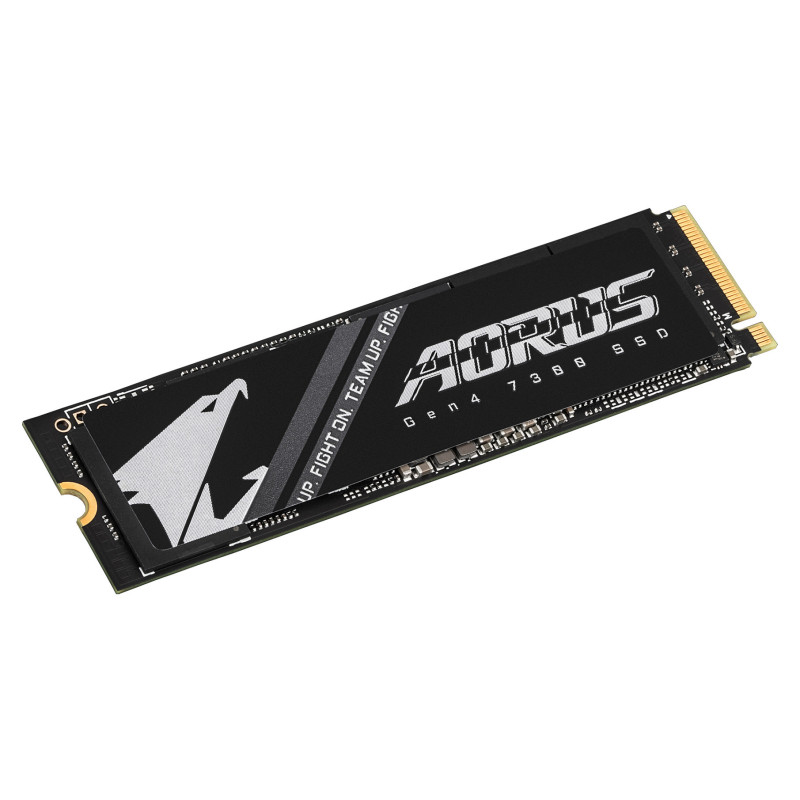

GIGABYTE AORUS Gen4 7300

GIGABYTE AORUS Gen4 7300. SSD capacity: 2 TB, SSD form factor: M.2, Read speed: 7300 MB/s, Write speed: 6850 MB/s, Component for: PC/Laptop

Extremely fast PCIe 4.0 throughput
AORUS Gen4 7300 SSD delivers sequential read up to 7.3GB/s with 8 Channel controller- Phison E18- and 3D TLC NAND. The E18 controller is built with the advanced 12nm process ensuring sufficient computing power. Also it supports up to 8 NAND Flash channel with 32CE, DDR4 SLC caching and meets NVMe 1.4.

NAND Flash Selected for High Quality and Performance
Selected High Speed 3D TLC NAND Flash (1600+ MT/s)
The ultra high speed 3D TLC NAND Flash is operating at 1600+ MT/s, which is 50% more than the prevision version that leads to better performance.

Xtreme Storage Performance
By adopting Phison E18 controller and 3D TLC NAND, AORUS Gen4 7300 SSD delivers blazing speeds: up to 7,300 MB/s for sequential read, and up to 6,850MB/s sequential write. Sequential Read performance of PCIe 4.0 SSDs is 2 times faster than the PCIe 3.0 SSDs. Get ready to enter the next generation of computing with faster and smoother, gaming, streaming, and graphics intensive rendering.

GIGABYTE CONTROL CENTER (GCC)
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.
- Unified software platform for all Gigabyte supported products
- Intuitive user interface for an eased experience
- Modularized control components only for installed hardware
- Auto update function to keep system up to date and support future products

Features

NVMe version: 1.4
Security algorithms: 256-bit AES
SSD capacity: 2 TB
SSD form factor: M.2
Interface: PCI Express 4.0
Feature: NVMe
Memory type: 3D TLC NAND
Component for: PC/Laptop
Feature: Hardware encryption
M.2 SSD size: 2280 (22 x 80 mm)
Read speed: 7300 MB/s
Write speed: 6850 MB/s
PCI Express interface data lanes: x4
Feature: S.M.A.R.T. support
Feature: TRIM support
Feature: External DDR cache
External DDR cache quantity: 2048 MB
Mean time between failures (MTBF): 1600000 h
Windows operating systems supported: Windows 10 x64, Windows 11 x64
TBW rating: 1400

Power

Power consumption (read): 8.1 W
Power consumption (write): 7.4 W
Power consumption (idle): 0.03 W

Brand-specific features

Brand specific technologies: SLC Caching

Weight & dimensions

Width: 22 mm
Depth: 80 mm
Height: 3.5 mm

Packaging data

Feature: Manual
Package type: Box

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -40 - 85 °C
