GROWATT Internet Interface Shine WiFi-F
Product reference: 17-9990000820337

GROWATT Internet Interface Shine WiFi-F

GROWATT Internet Interface Shine WiFi-F

Product reference: 17-9990000820337

GROWATT Internet Interface Shine WiFi-F

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
5590
Product in warehouse

Guarantee
12 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*

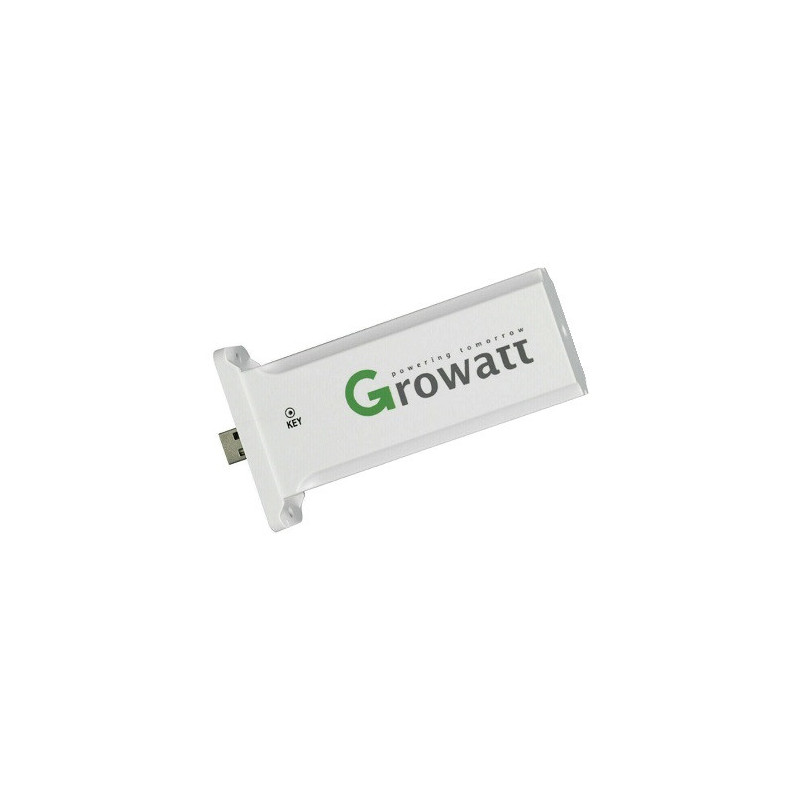

Growatt Internet interface Shine WiFi-F Features: The interface is designed to link Growatt inverter parameters with a Cloud server via Wi-Fi and monitor the operation of the solar power plant and the energy produced. The device connects to a solar inverter to remotely detect and potentially troubleshoot PV system faults. USB dongle with 50 meters (max. 100m without obstacles) range and integrated memory, connects your PV system to Wi-Fi. The data of the connected inverter is saved for 30 days, even if the internet connection is lost. Suitable for all Growatt inverters (Off-grid - without external power supply). Technical data: Supported network: Wi-Fi 2.4GHz. Max. communication range: 100m. Wi-Fi wireless communication standard: IEE802.11 b/g/n. Transmission power: 802.11b: +20dBm(max); 802.11g: +18dBm(max); 802.11n: +15dBm(max). Receiver sensitivity: 802.11b: -89dBm(max); 802.11g: -81dBm(max); 802.11n: -71dBm(max). Voltage: 5V. Current: 1A. Interface: USB Type-A. Data interface: UART 9600bps; Ethernet 100Mbps. Network type: Access Point; Station Mode with Soft AP. Security: WEP / WPA-PSK / WPA2-PSK / WAPI. Encryption: WEP64 / WEP128 / TKIP / AES. Supported server: ShineServer (server-cn.growatt.com). Data transmission interval: 5 min. Operating temperature: -20°C ~ +65°C. Dimensions: 135x79x29 mm. Weight: 63g. Warranty:12 months
