ROLINE 14.01.3642 AV ilgintuvas

ROLINE 14.01.3642. Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat5e, Cat6. Connectivity technology: Wired. Power source type: DC, Operating voltage: 5 V, Input current: 1 A. Receiver dimensions (WxDxH): 94 x 120 x 24 mm, Receiver weight: 214 g, Transmitter dimensions (WxDxH): 94 x 120 x 24 mm. Quantity per pack: 1 pc(s), Package width: 230 mm, Package depth: 300 mm

Description

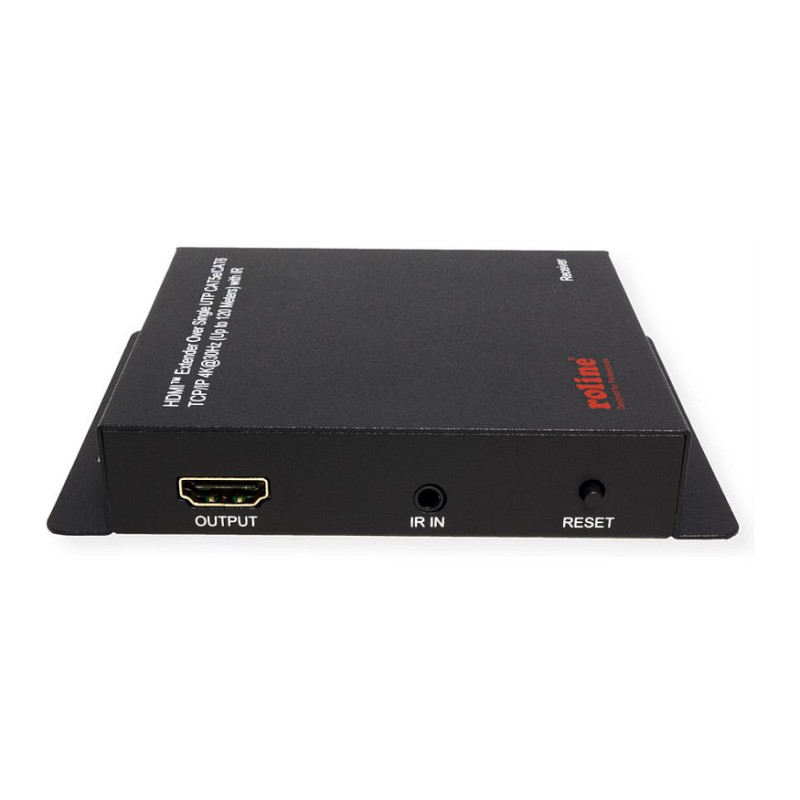

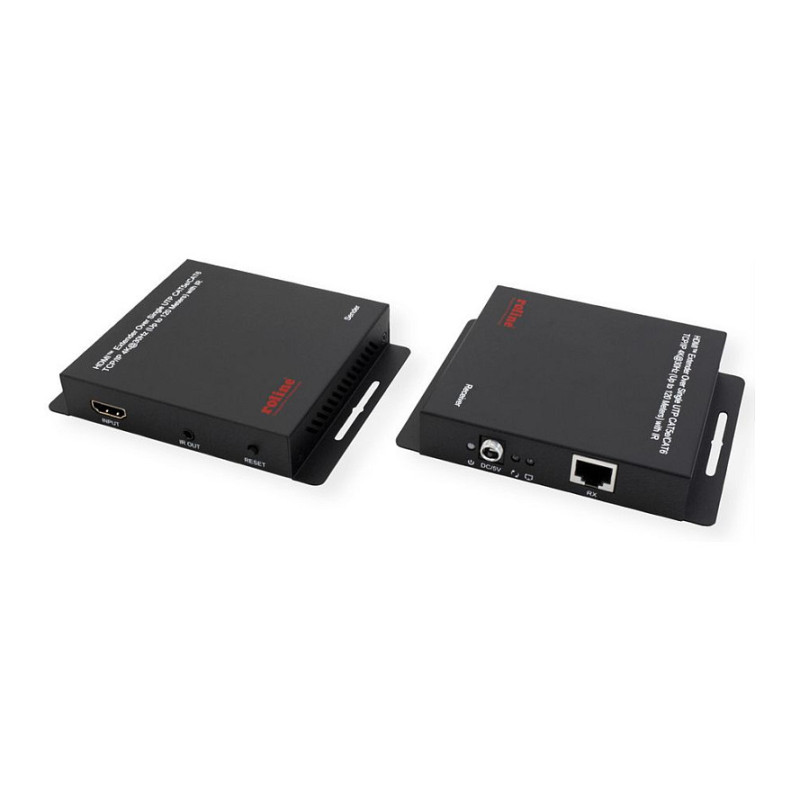

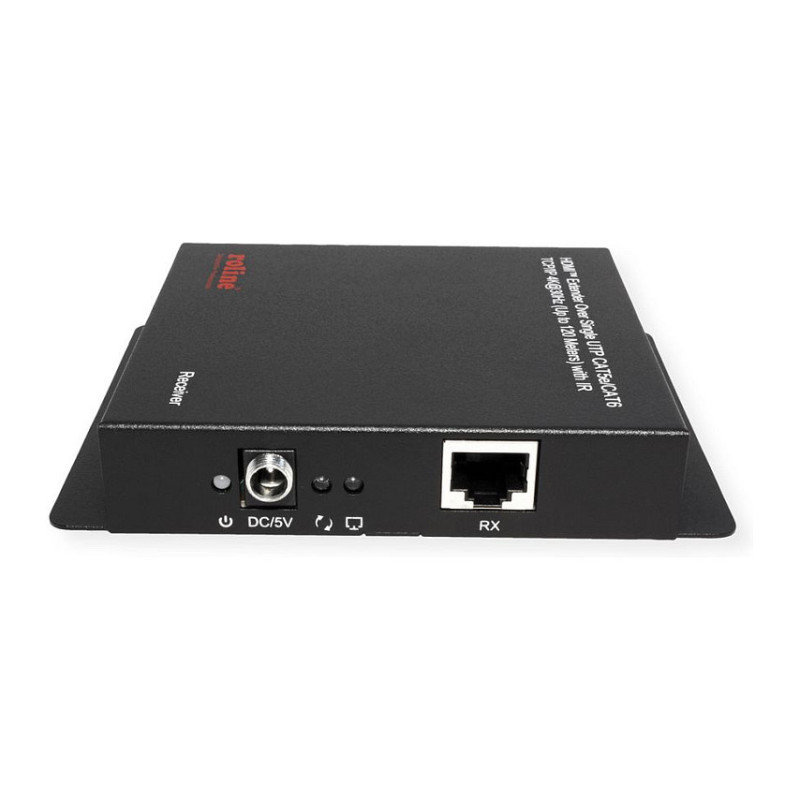

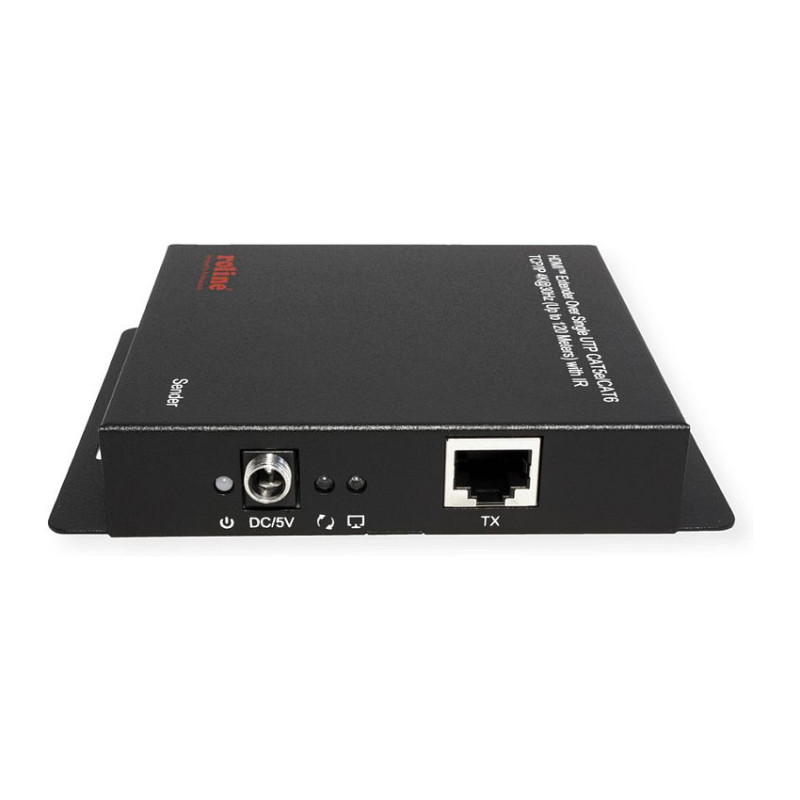

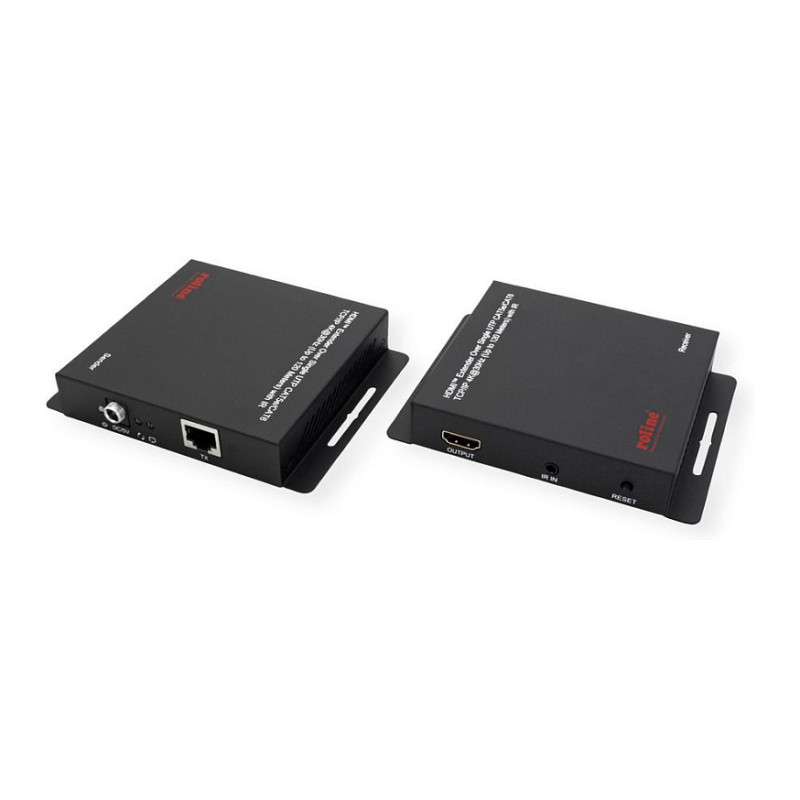

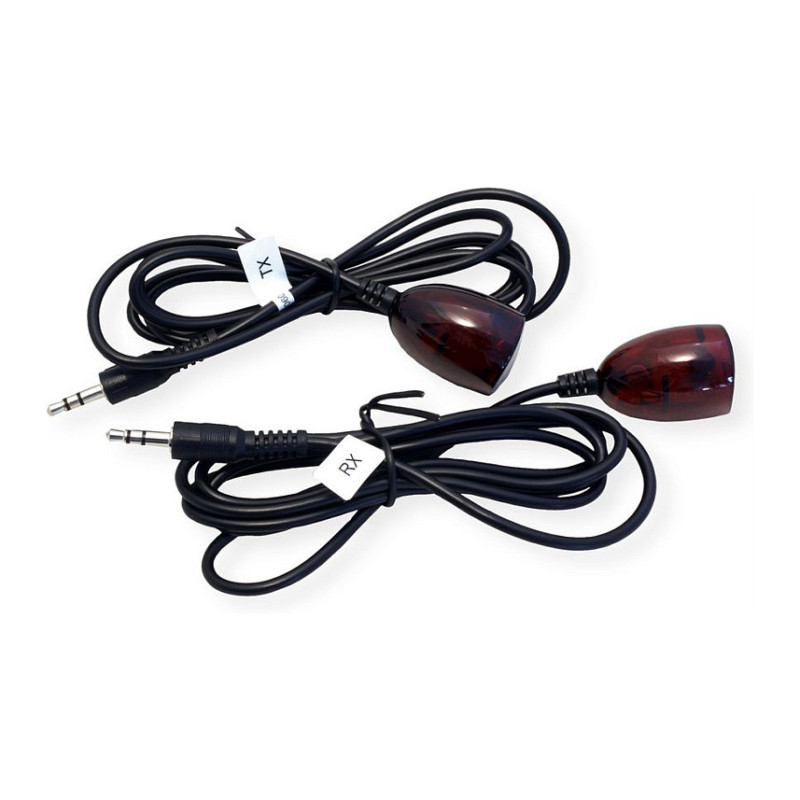

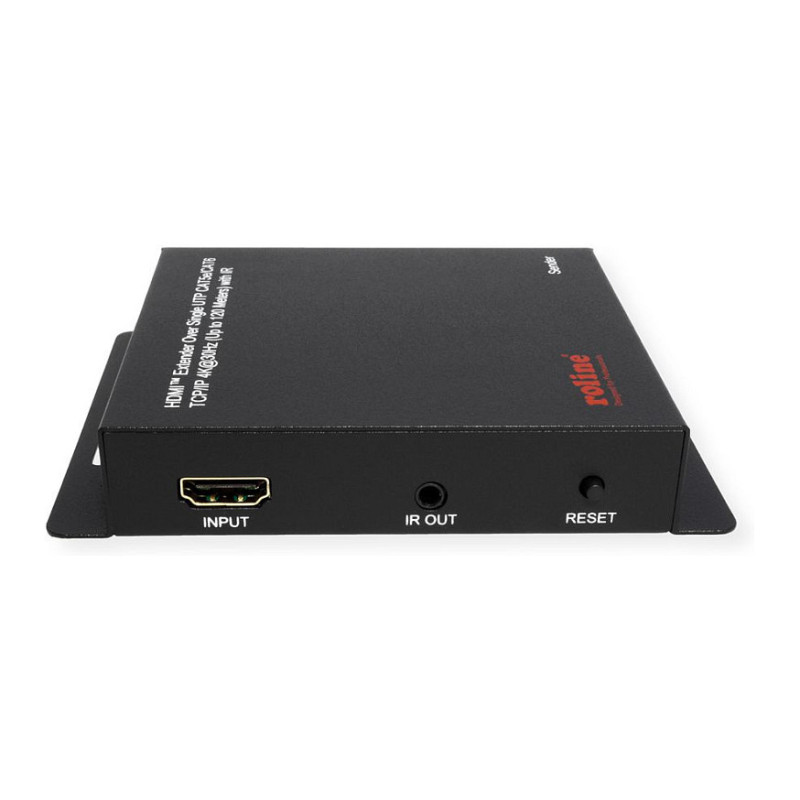

With this HDMI over IP Extender, you can extend HDMI signals up to 120 m with 4K@30Hz via a network cable of Cat. 5e or higher. An ideal solution for sharing a screen or projector over a LAN network. IR signals from a remote control of the video source can also be redirected - perfect for controlling your video source from your video destination.

Features

Type: AV transmitter & receiver
Maximum resolution: 3840 x 2160 pixels
Cable types supported: Cat5e, Cat6
Maximum transfer distance: 120 m
Maximum refresh rate: 30 Hz
Bandwidth: 3.4 Gbit/s
Audio formats supported: DTS, LPCM
Material: Metal

Ports & interfaces

Connectivity technology: Wired
HDMI in: 1
Number of HDMI outputs: 1

Power

Power source type: DC
Operating voltage: 5 V
Input current: 1 A

Operational conditions

Operating temperature (T-T): 0 - 50 °C

Weight & dimensions

Receiver dimensions (WxDxH): 94 x 120 x 24 mm
Receiver weight: 214 g
Transmitter dimensions (WxDxH): 94 x 120 x 24 mm
Transmitter weight: 214 g

Packaging data

Quantity per pack: 1 pc(s)
Package width: 230 mm
Package depth: 300 mm
Package height: 60 mm
Package weight: 1 kg

Packaging content

Feature: AC adapter included
Feature: Manual
