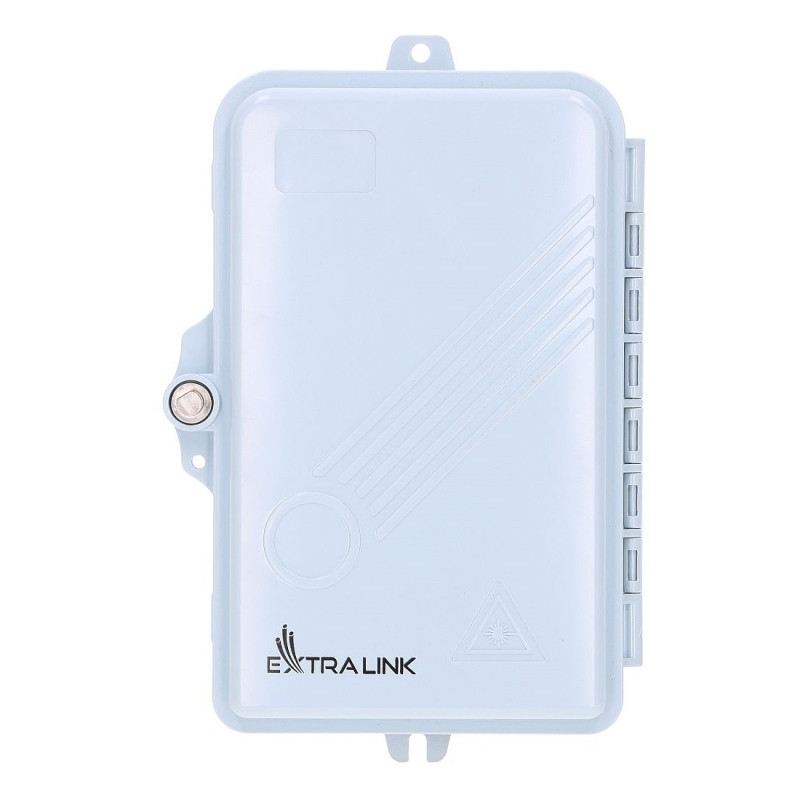

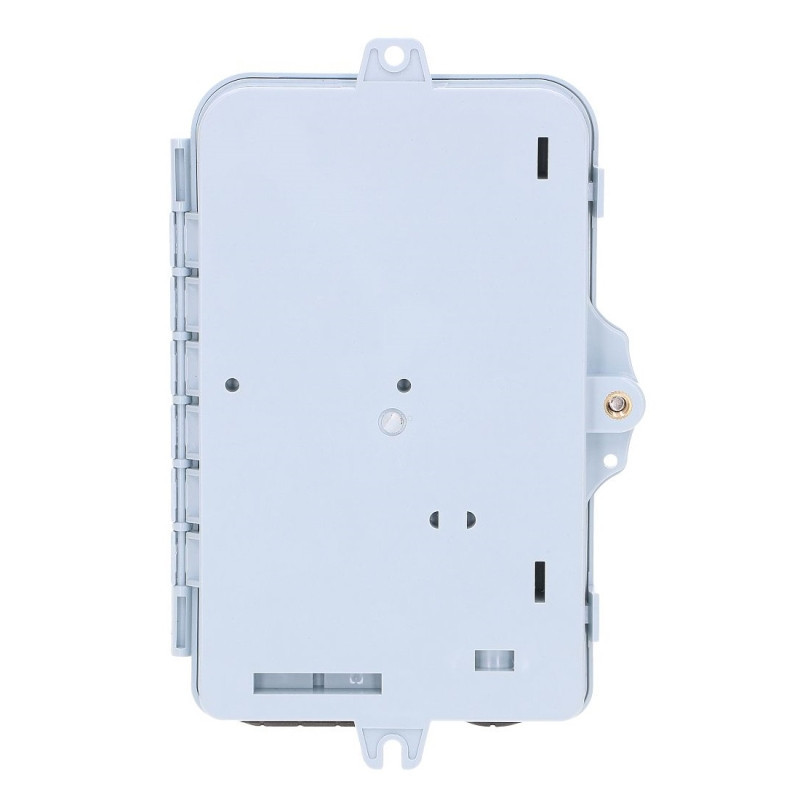

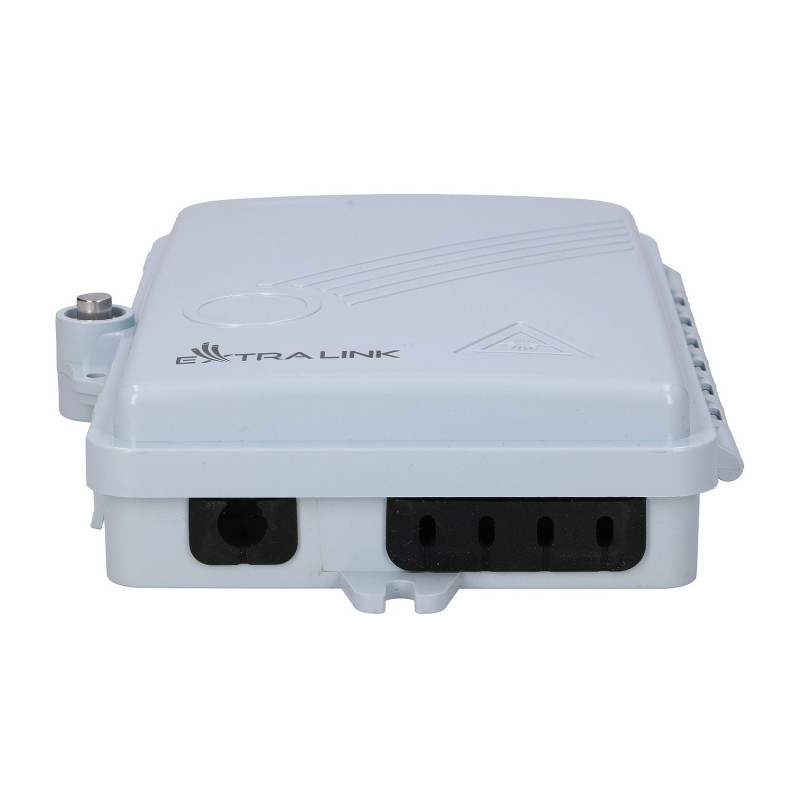

EXTRALINK Betty 4 branduolių šviesolaidinė paskirstymo dėžutė

• Total enclosed structure, nice shape


• Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65


• Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution, etc. All in one

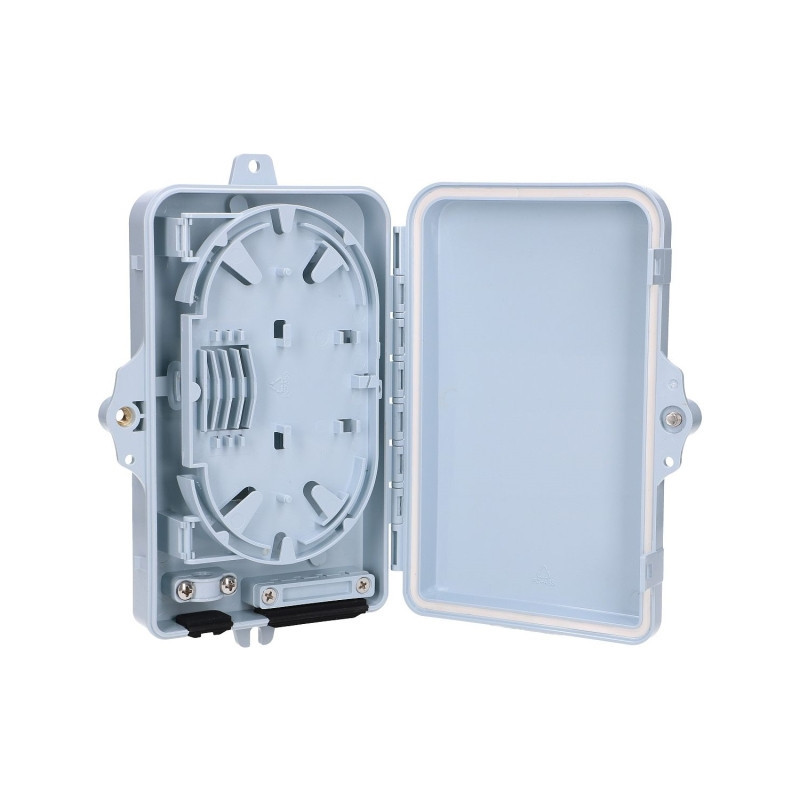

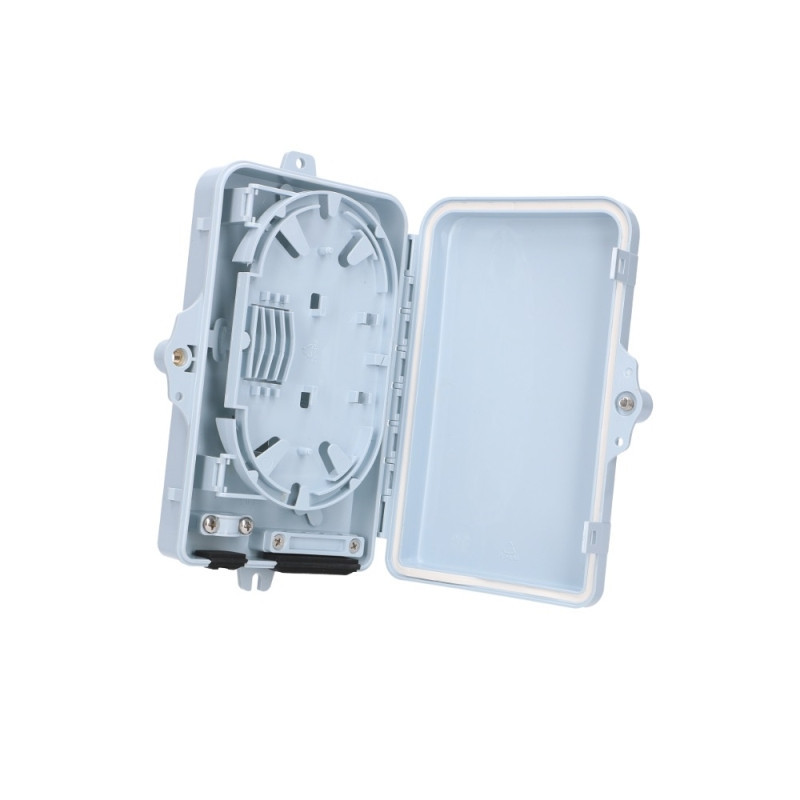

• Cable, pigtails, patch cords are running through own path without disturbing each other. Sassette type. SC adapter installation, easy maintenance


• Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.

Working temperature : -40°C～+85°C

Relative humidity : ≤85%(+30°C)

Atmospheric pressure : 70KPa～106Kpa

Insertion loss : ≤0.2dB

UPC return loss : ≥50dB

APC return loss : ≥60dB

Life of insertion and extraction : > 1000 times

Thunder-proof Technical Data

The grounding device is isolated with the cabinet, isolation resistance is no less than 2 MΩ/500V（DC）;IR≥2 MΩ/500V

The withstand voltage between grounding device and cabinet is no less than 3000V（DC）/min, no puncture，no flashover; U≥3000V
