EXTRALINK 24 prievadų Cat5e UTP gigabito pataisos skydas V2

Patch Panel is a 19 inch rack mountable RJ45 jack panels for Cat.5e.

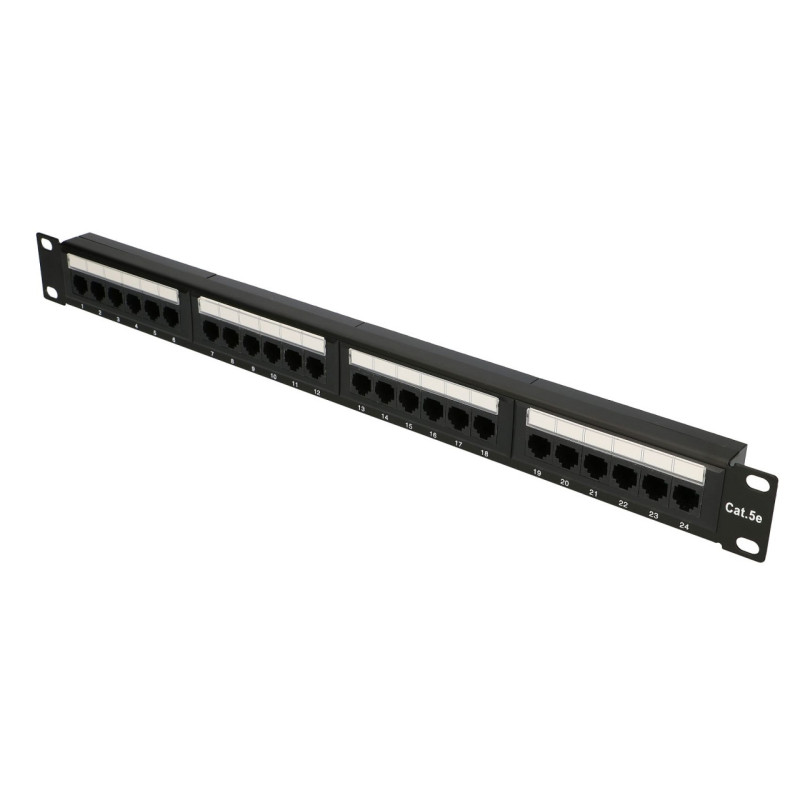

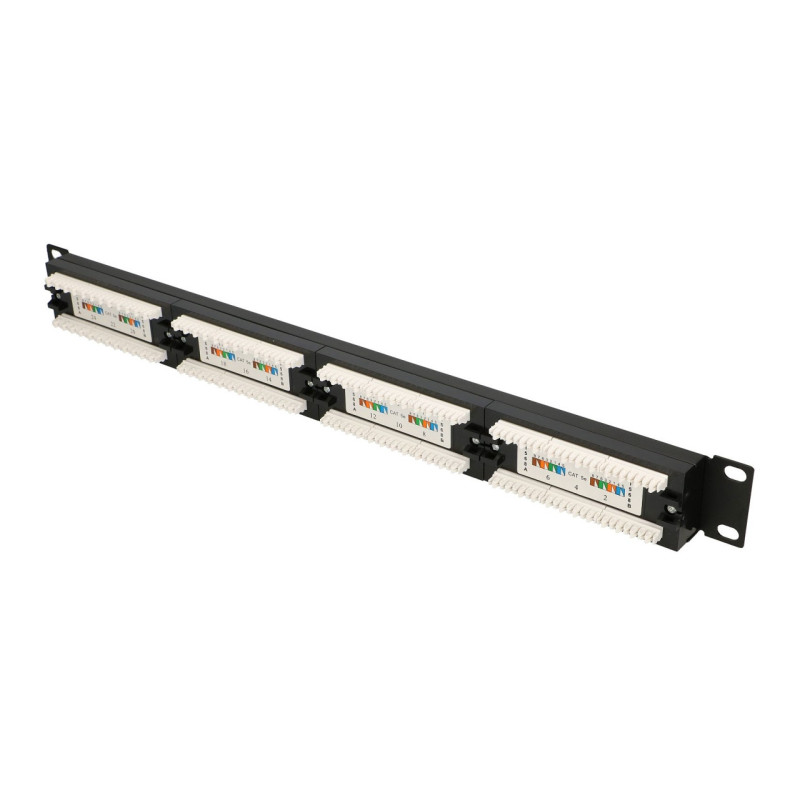

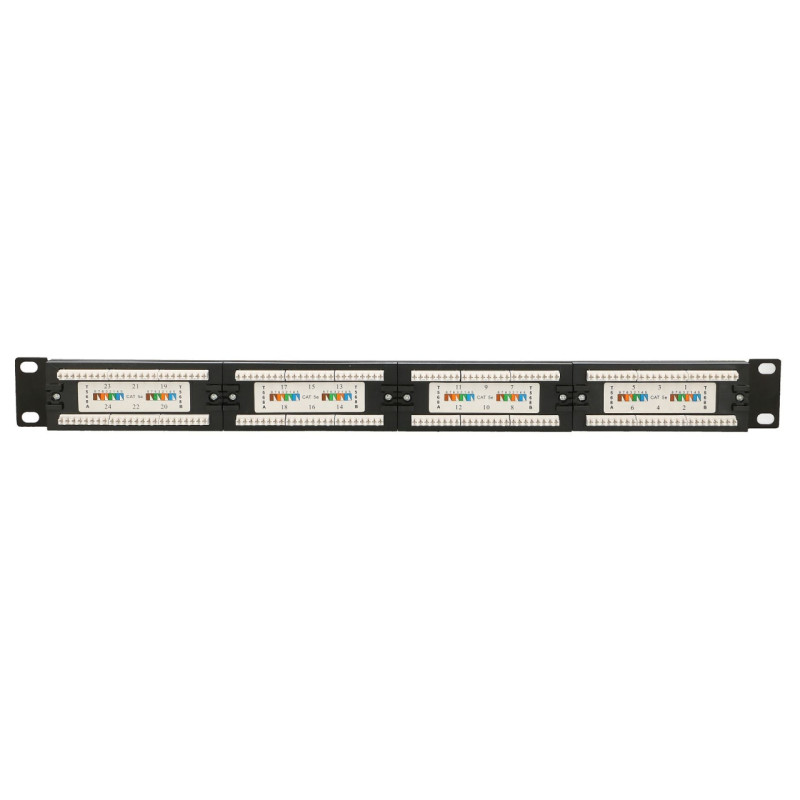

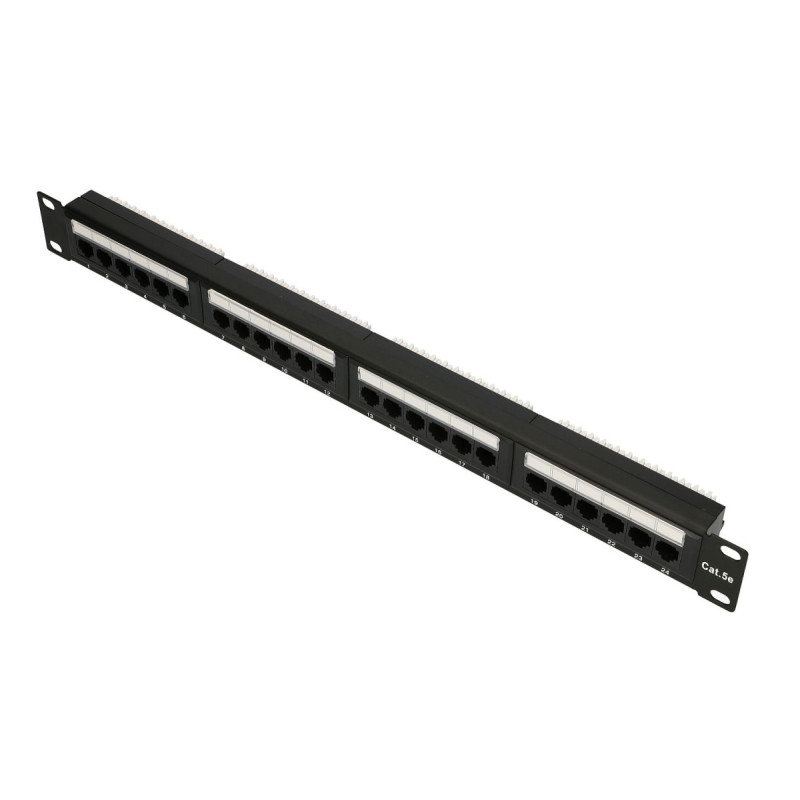

Numerical markings are put on the ports at the front of the panel. At the back of the panel contacts contain colour and numerical markings. There are areas for additional marking.

Applications:
• Horizontal distribution or equipment termination on long-distance communication;
• Interactive termination on merger point;
• Multi-user communication jack in working area.

Features:
• Apply to install standard 19' equipment bracket, case and wall mounted tow rack;
• Various information modules provide more choice for cabling system operation;
• Universal sequence-T568A and T568B color sequence labeled on modules clearly;
• The design of other information modules goes beyond expected grade demand;
• Label and embedded icons are convenient to label and manage;
• Single-cord and multi-line pair impact tools are available.

• Current Rating: 1.5 Amps;
• Insulation Resistance: 500 Megaohm;
• DC Resistance: 0.1 ohm MAX;
• Contact Resistance: 20 Mili-ohm;
• Voltage: 150 VAC MAX;
• Insertion Life: ≥ 1000 Mating Cycles;
• Plug Retention Force: 89N;
• Temperature: — 60~80°C;
• Humidity: 10%-90% RH;
• IDC Accept: 22-26 AWG Solid Wire;
• Wire Scheme: T568A/B.

Materials:
• Panel: Cold rolled steel(thickness1.5mm);
• Back Bar: Cold rolled steel(thickness1.5mm);
• Housing: ABS;
• Spring Wire: Phosphor Bronze With Gold-plated 3u -50 u';
• IDC Contact: Phosphor Bronze with tinned;
• IDC Holder: High Impact PC.

Meets Standards:
• TIA/EIA-568-A and TIA/EIA-568-B Category 5E requirements;
• TIA/EIA TSB-40;
• ISO/IEC Generic Cabling Standard 11801;
• CENELEC Generic Cabling Standard EN50173.
