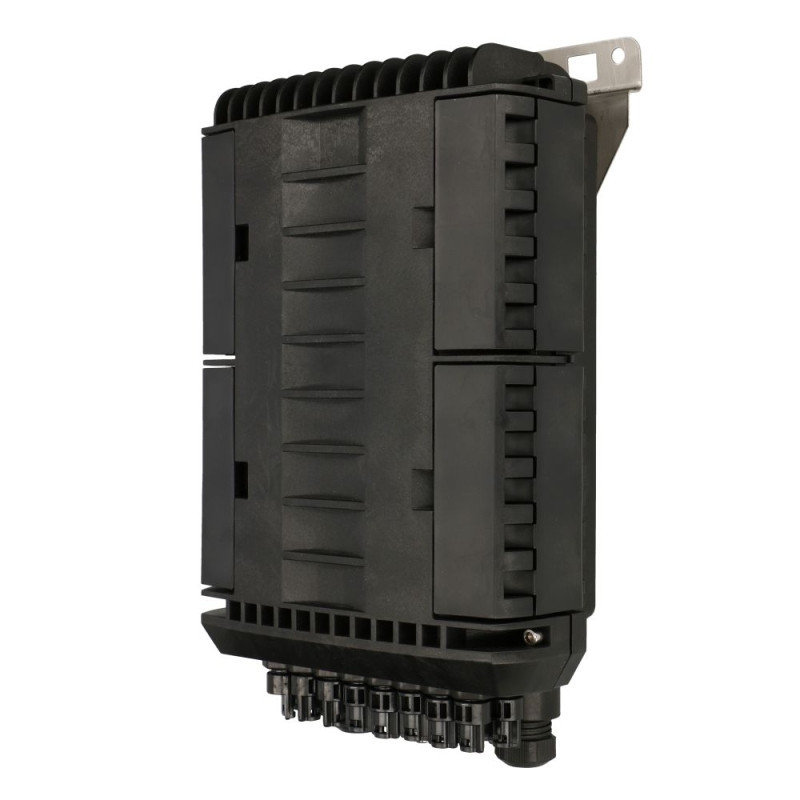

EXTRALINK 16 branduolių šviesolaidinė gnybtų dėžutė POLA

Box is designed to seal without screws. The compact size and flip-over cover bring easy operation as well as complete function. The splice trays are jointed with a hinge at one side, which makes the operation in each tray easier. It is designed to prevent from operation damage.

• Dimensions (mm): 380x245x130;
• Max.capacity (single fiber): 16;
• Weight (kg): 4.2;
• Sealing type: mechanical.

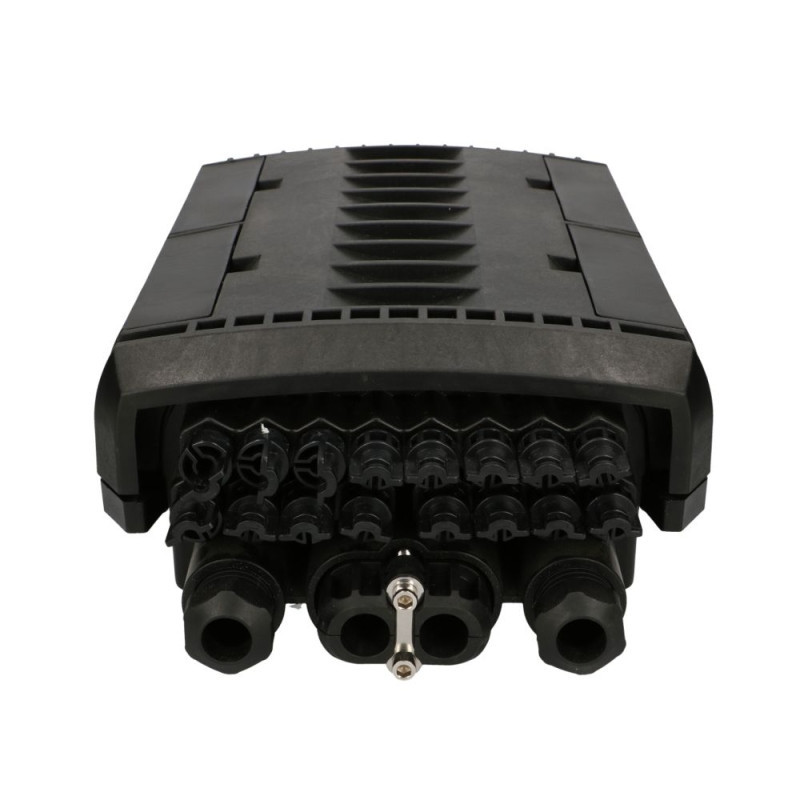

Cable ports:
• 1 input cable port for un-cut cable (10~17.5mm);
• 2 output cable ports (8~17.5mm);
• 16 output cable ports (<4mm).

• Single splice tray capacity(Single fiber): 16;
• Splice tray quantity: 2 pcs.

• Environment temperature: -40C ~ +65C;
• Optical performance: No significant additional attenuation;
• Rated IP68 under IEC standard 60529.
