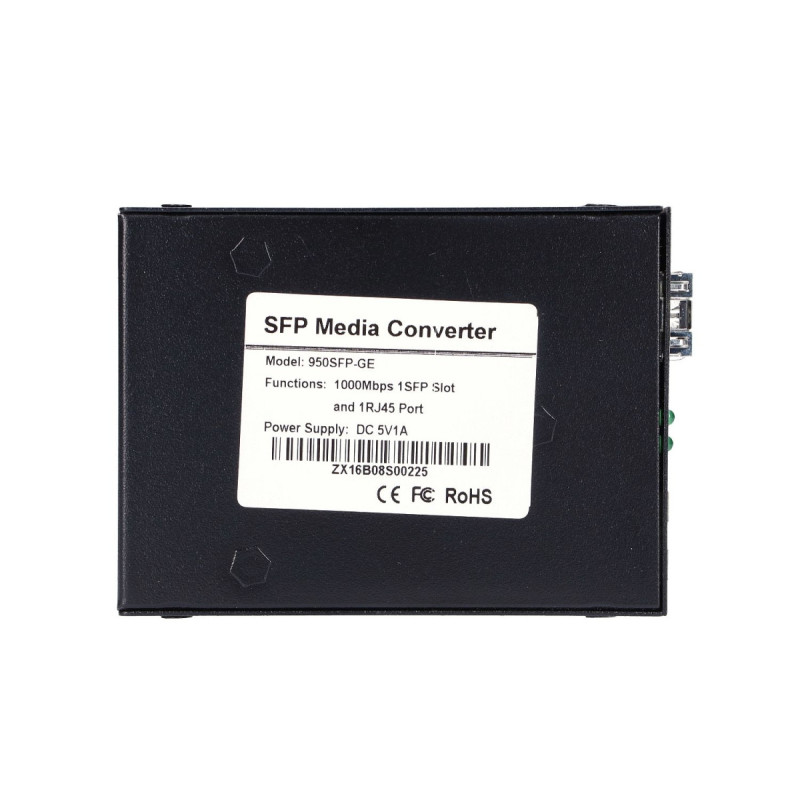

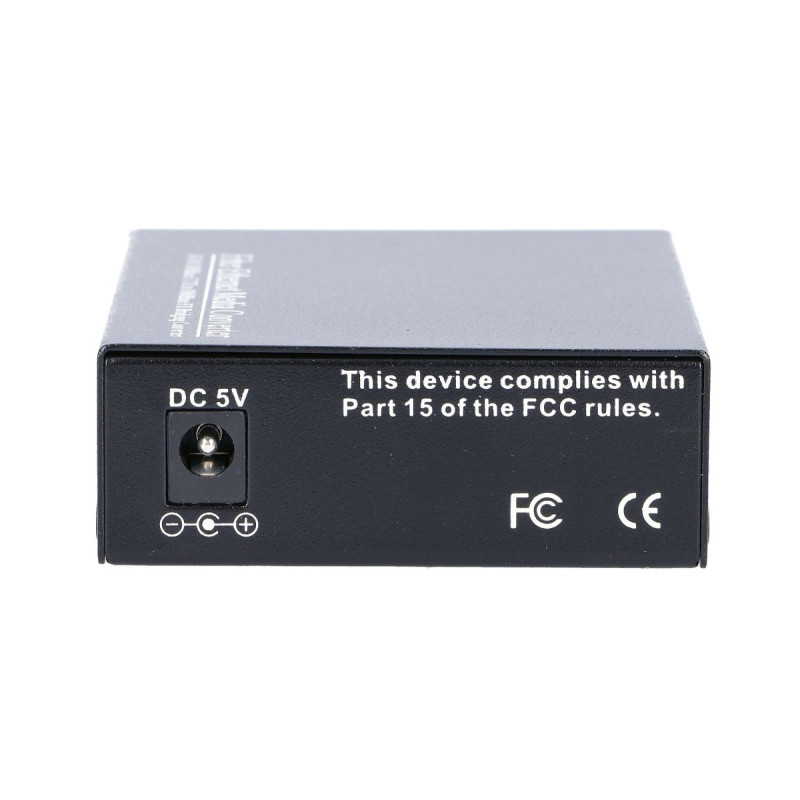

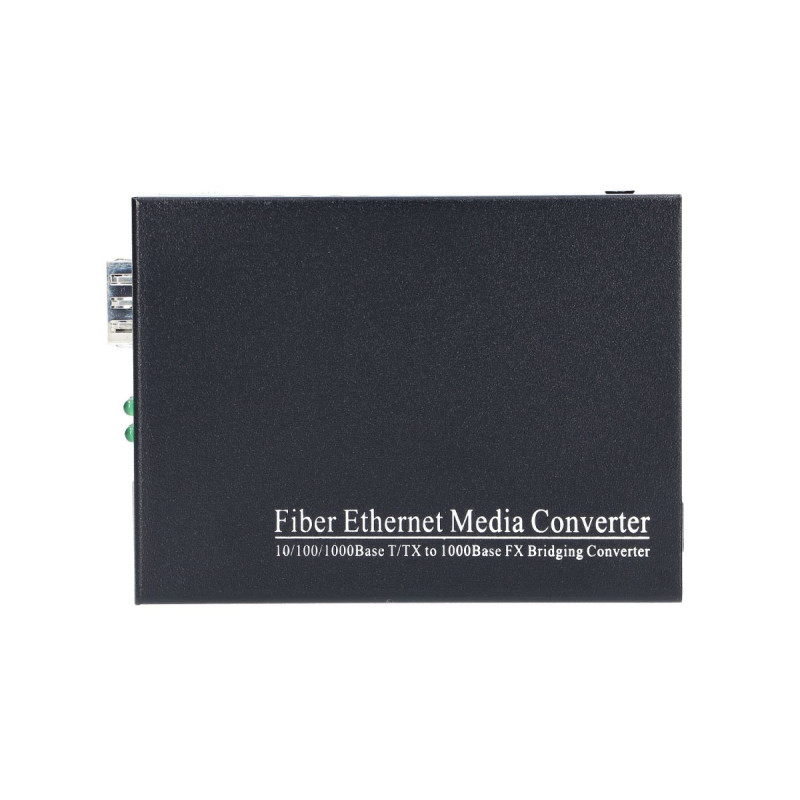

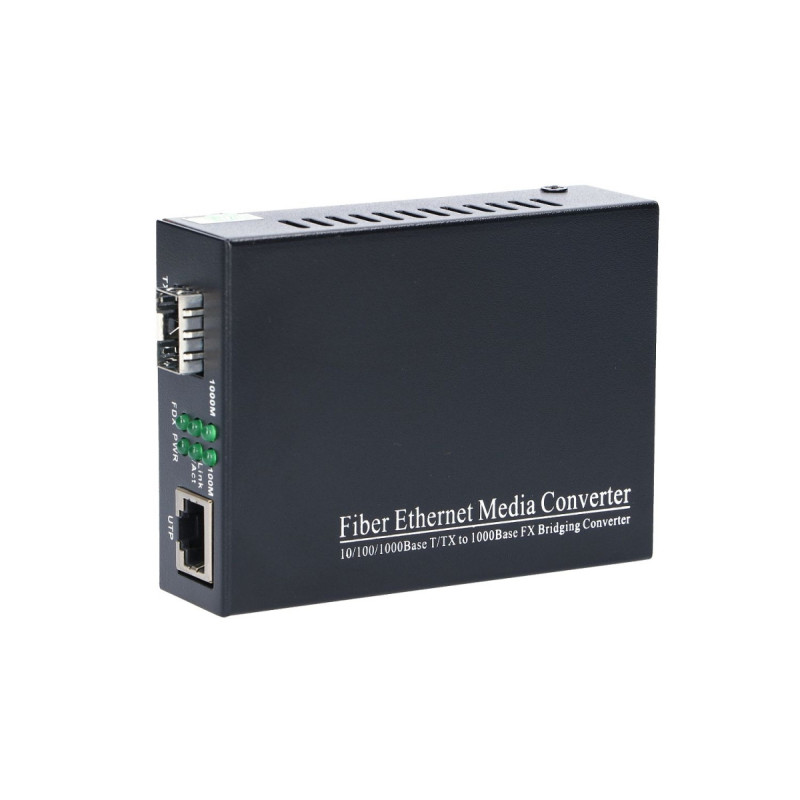

EXTRALINK Fiber Ethernet Media Converter SEDIR, MC220

Converter Sedir is an Ethernet media converter that converts media transmission between UTP Copper cables and fiber SFP (Small Form-Factor Pluggable) transceiver. It is designed to meet the massive needs for Ethernet network deployment and able to extend a copper based network via fiber cable to a maximum distance up to 120km. It can be installed into a Standard Converter Chassis. The installation operation procedures are simple straight forward. Operation status can be locally monitored through a set of Diagnostic LED located in the front panel.

• 100Base-TX/FX or 1000Base-T to 1000BASE-SX/LX Converter;
• Standard : IEEE802.3 IEE802.3u, IEEE 802.3z 802.3ab;
• Interface: 1 x RJ-45 connector / 1 x SFP Slot;
• Plug-and-Play installation;
• Support Jumbo Frame (64-9216 Byte);
• Conversion between different transmission speeds and media types;
• Standalone type or card type,Can be installed into 2U 14/16 Slots chassis;
• Auto-negotiating Ethernet port (Half/Full Duplex);
• Auto-crossover Ethernet port (Supports Auto MDI/MDI-X);
• Easy Installation, Easy Trouble shooting;
• Dimension: 229x122x50mm for packing, 94x70.6x26.5mm for device.
