EV įkrovimo stotelė CS41-11 Type2 16A 11kW 5.0m

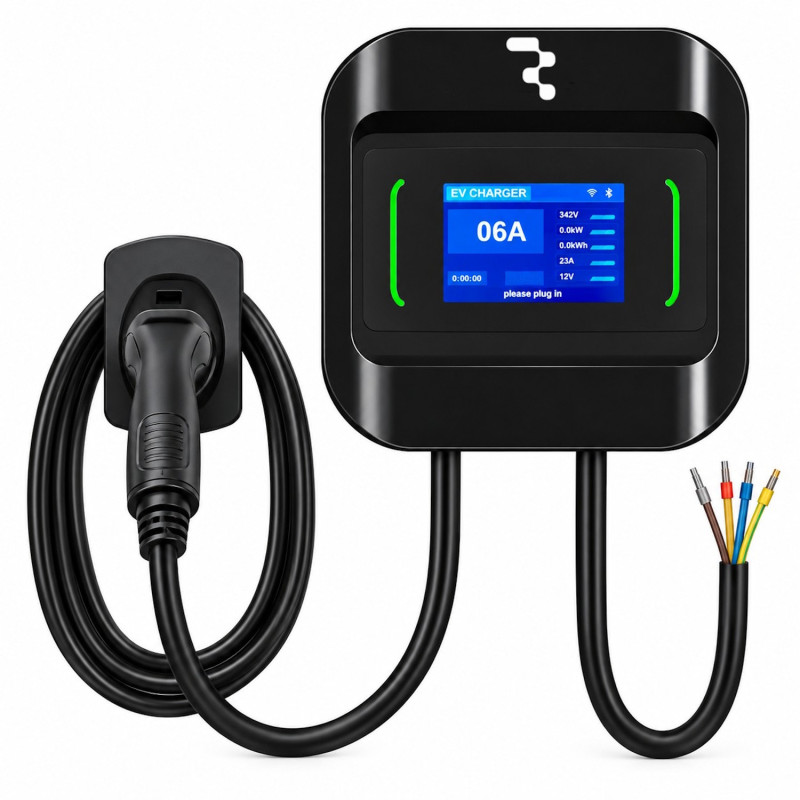

CS41-11 is a wall-mounted EV charging station with a Type 2 connector, designed for charging at up to 11 kW. The charging station features an integrated 4.3" display, charging current and delayed charging control buttons, and an LED status indicator.

Specifications:

Connector type: Type 2

Charging current: up to 16 A

Maximum charging power: 11 kW

Cable length: 5 m

Protection rating: IP65

Operating voltage: AC 380-480 V

Unit dimensions: 250 × 260 × 90 mm

Operating temperature: -30 °C ~ +50 °C

Warranty: 24 months

Protection against current leakage, overcurrent, short circuit, ground fault, overvoltage, undervoltage, voltage surges, overfrequency, underfrequency, and overheating. Leakage protection: Type B RCD (30 mA AC + 6 mA DC).

Package contents: charging station with Type 2 charging cable, wall mount with mounting screws, charging cable holder with mounting screws.

Charging control

The charging station has integrated control buttons that allow you to adjust the charging current and set a delayed charging start. The charging start can be delayed by up to 12 hours.

Real-time charging monitoring

The integrated 4.3" digital display provides real-time information about the charging process, allowing the main charging parameters to be conveniently monitored on the charging station display.

The following parameters are displayed:

Charging current: current charging current.

Charging time: how long charging has been in progress.

Mains voltage: current mains voltage.

Charging power: current charging power.

Delayed charging time: set time until charging starts.

Accumulated energy: amount of energy transferred during charging.

Signal voltage: displayed on the charging station screen.

Temperature: displayed on the charging station screen.

LED status indicator

The charging station has an integrated LED indicator that uses different colours to indicate the device and charging status. Green, blue and red indications are used to show operating, charging and possible fault conditions.
