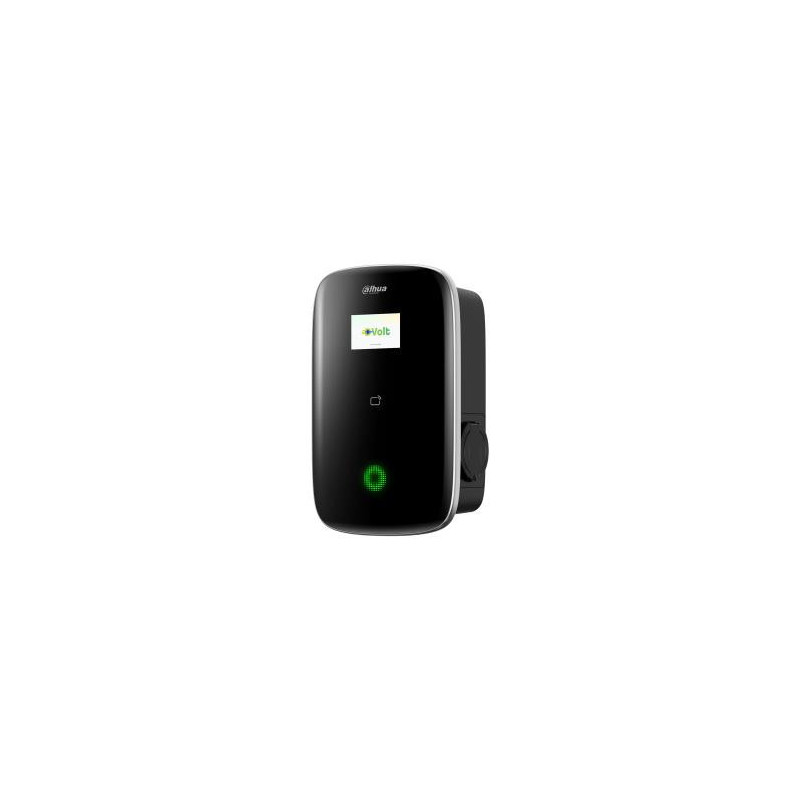

ELEKTROMOBILIŲ ĮKROVIKLIS 3PH 22KW D-VOLT PRO / DHI-ICS-A220E-B2D-Z DAHUA
Prekės kodas: 2-6939554905414

ELEKTROMOBILIŲ ĮKROVIKLIS 3PH 22KW D-VOLT PRO / DHI-ICS-A220E-B2D-Z DAHUA

Prekės kodas: 2-6939554905414
Jūsų palyginimo sąraše yra 3 prekės, prašome vieną pašalinti ir bandyti dar kartą.
  • Įtraukti į patikusias prekes
  • Pridėta į patikusias prekes
  • Pašalinta iš patikusų prekių
Įtraukti į palyginimą
517,23 €
587,76 €
Prekė sandelyje

Garantija
36 mėn.

Pristatymas iš Lietuvos
per 3 - 5*
d. d.

Jūsų žinutė sėkmingai išsiųsta!
Užpildykite privalomus laukus*

D-Volt Pro is a revolutionary EV charging solution specifically designed for commercial use. It offers robust performance and is fully compatible with our specialized software management system, the D-Volt cloud and app, which enhances charging efficiency.

Multiple Start Methods
Charging can be easily initiated through App, RFID or Plug and Play.

Current Adjustment
The current can be adjusted from 6 A to 32 A. The EV Charger also has protection against overloads and safely uses home electricity, while providing fast charging at maximum power.

Scheduled Charging
Charging can be scheduled and energy levels customized. By selecting the most convenient charging periods, you can reduce electricity costs and ease the load on the power grid. Additionally, you can tailor the amount of energy for charging your vehicle based on the actual demands of its battery. This approach minimizes float charging and helps protect the battery.

Intelligent Operation and Maintenance
Supports error alarms, OTA update, DSO control, remote control and restart.

Protection Capabilities
Comes with protection against overvoltage, undervoltage, overcurrent, short circuits, lightning surges, electric surges, leakage, overtemperature, metering failure, CP disconnection, and vehicle PE disconnection. It can also detect relay sticking and LN reverse connection, and offers grounding protection, PEN protection, and data security. The EV Charger is also dustproof and waterproof so that you can feel secure and comfortable while using it.

Suitable for open parking lots such as those in enterprises, public institutions, stores, shopping malls, hospitals, and tourist attractions.

  • 4.3-inch LCD display
  • 3 charging methods: Free vending (plug&play), RFID control, and
  • app control
  • Supports OCPP 1.6J
  • Working temperature: -30 °C to +50 °C (- 22 °F to +122 °F)
  • Integral 30 mA Type A and DC 6mA RCD function protection, and
  • supports PEN protection
  • IP55 and IK10 rated

Apsaugos nuo mechaninio poveikio kodas IK10
Atitikties sertifikatai RoHS
Aukštis 443 mm
Bluetooth Taip
Bruto svoris 11.6 kg
Darbinis aukštis 0 - 2000 m
Darbo santykinės drėgmės diapazonas 5 - 95 %
Darbo temperatūros diapazonas (TT) -30 - 50 °C
Didžiausia darbinė srovė (trifazė) 22 kW
Didžiausioji veikimo srovė (trifazė) 32 A
Didžiausioji įkrovimo galia 22000 W
Ekrano įstrižainė 4.3 "
Etapų skaičius 3
Ethernet LAN jungtis Taip
Ilgis 171.5 mm
Kiekis pakuotėje 1 vnt
Korpuso medžiaga Polikarbonatas (PC)
LED indikatoriai Būsena/Gedimas/Įkraunama
Lizdo tipas Type 2
Lizdų kiekis 1
Maitinimo apsaugos ypatybės Apsauga nuo per didelės įtampos/Apsauga nuo perkaitimo/Minimaliosios įtampos apsauga/Trumpasis jungimas/Viršijus nuolatinę srovę
Maitinimo šaltinio tipas AC
Model Intelligent EV Charger D-Volt Pro
Model name Intelligent EV Charger
Montavimo tipas Siena
Neto svoris 6 kg
Nominali įtampa 400 V
Nominalusis dažnis 50 Hz
Paketo svoris 12000 g
Pakuotės aukštis 409 mm
Pakuotės gylis 606 mm
Pakuotės plotis 423 mm
Palaikoma trifazė išėjimo įtampa 400 V
Plotis 273 mm
Produkto spalva Juoda
RFID skaitytuvas Taip
Sandėliavimo temperatūros norma (T-T) -40 - 70 °C
Sertifikavimas IEC 61851-1, IEC 62196-2
Shipping Box Depth 60.5 cm
Shipping Box Height 40.5 cm
Shipping Box Weight 11.65 kg
Shipping Box Width 41.5 cm
Sudėtyje nėra Gyvsidabris/Kadmis/Švinas
Summary Dahua Technology Intelligent EV Charger. Product colour: Black, Mounting type: Wall, Housing material: Polycarbonate (PC). Open Charge Point Protocol (OCPP) version: 1.6J, Socket type: Type 2, Power protection features: Over voltage, Under voltage, Short circuit, Overheating, Over current. Power source type: AC, Nominal voltage: 400 V, Maximum charging power: 22000 W. Width: 273 mm, Depth: 171.5 mm, Height: 443 mm
Svoris 6000 g
Tarptautinės apsaugos (IP) kodas IP55
Unit Box Height 0.405
Unit Box Length 0.605
Unit Box Width 0.415
Unit Brutto Volume 0.1017 cubm
Vendor Homepage https://www.dahuasecurity.com/products/ev-charger/d-volt-pro/d-volt-pro-socket-version
Vieneto aukštis 40.5 cm
Vieneto gylis 60.5 cm
Vieneto plotis 41.5 cm
Vienetų skaičius vienoje siuntimo dėžėje 1
Įmontuotas ekranas Taip
"Open Charge Point Protocol" (OCCP) versija 1.6J
"Wi-Fi" Taip
