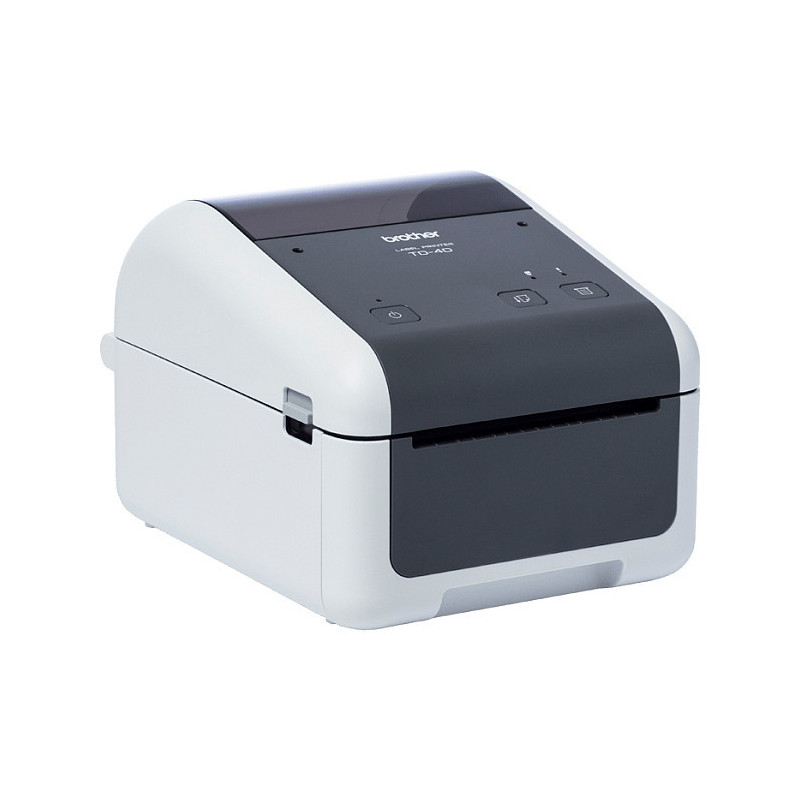

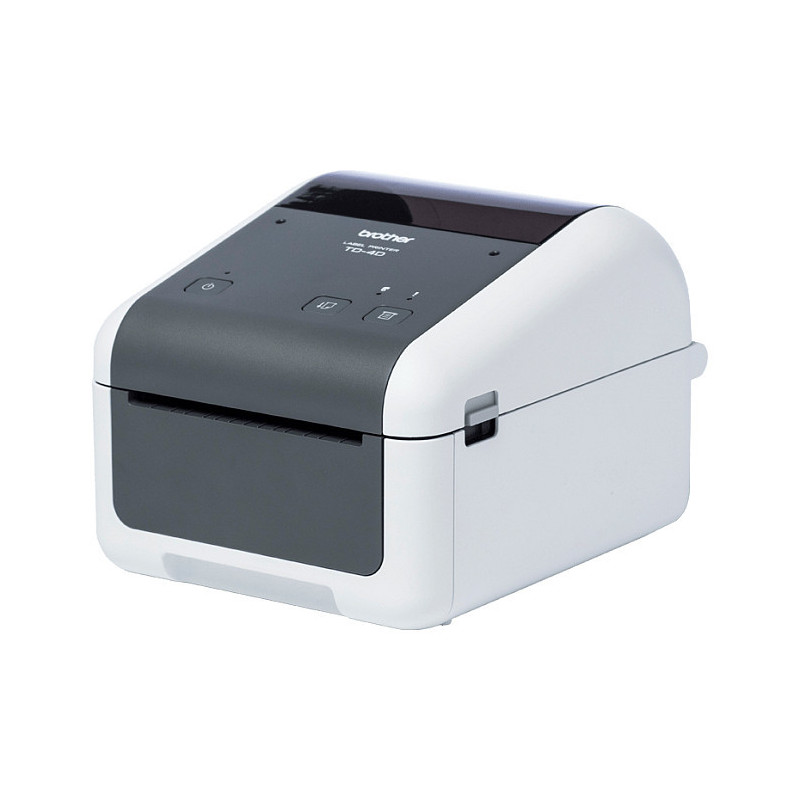

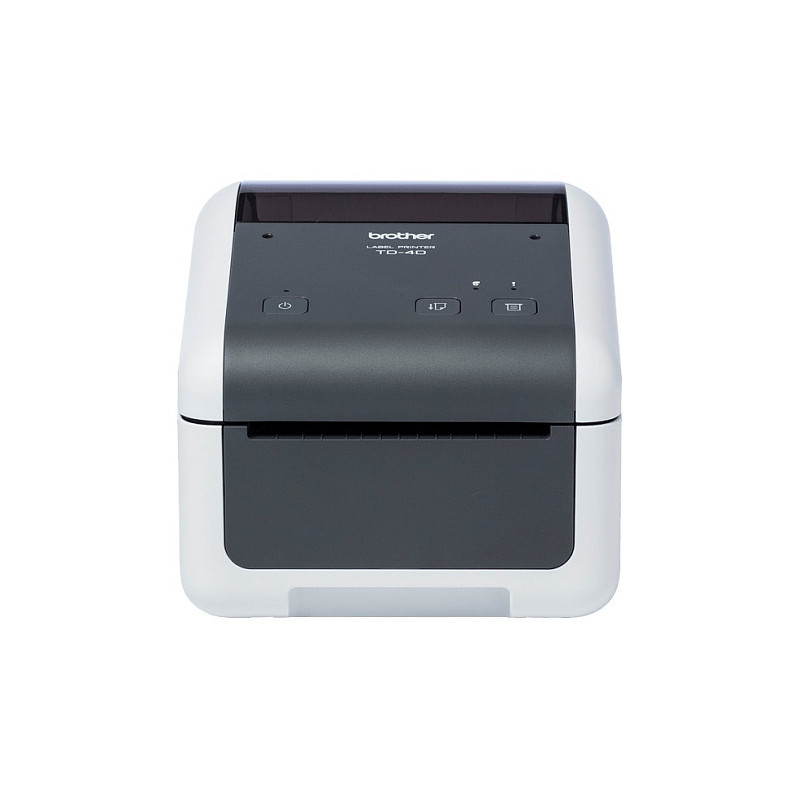

Brother TD-4520DN etikečių spausdintuvas

Brother TD-4520DN. Print technology: Direct thermal, Maximum resolution: 300 x 300 DPI, Print speed: 203 mm/sec. Connectivity technology: Wired, Ethernet LAN, USB port. Product colour: Grey, White

Using direct thermal print technology, accurate images with crisp definition is created. Great for printing high-volume, temporary labels with barcodes. The length of media is automatically calculated with the media calibration function. Removing the need of manually entering label dimensions. With network connectivity, data is quickly shared with different departments. Make the TD-4520DN bespoke to your needs with a range of accessories including a peeler and cutter.

Printing

Print technology: Direct thermal
Maximum resolution: 300 x 300 DPI
Print speed: 203 mm/sec
Print speed: 6 lpm
Minimum print length: 1.7 cm
Feature: Mirror printing
Text style: Bold, Horizontal lines, Invert, Italic, Normal, Shadow, Shadow light, Surround
Maximum print length: 3 m

Paper handling

Maximum label width: 11.8 cm
Maximum roll diameter: 12.7 cm
Core diameter: 1.27 cm

Ports & interfaces

Connectivity technology: Wired
Feature: Ethernet LAN
Feature: USB port
USB 2.0 ports quantity: 1
RS-232 ports: 1

Performance

Page description languages: CPCL-native, DPL, EPL2, ESC P, Raster_P, ZPL II
Internal memory: 256 MB
Flash memory: 64 MB
Built-in barcodes: CODABAR (NW-7), Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, ITF, POSTNET, UPC-A, UPC-E
Number of fonts: 6
Font styles: Brougham,Brussels,Helsinki,Letter Gothic,San Diego

Design

Product colour: Grey, White
Display: No

Power

Feature: Auto power off

System requirements

Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1
Server operating systems supported: Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Linux operating systems supported: Yes

Operational conditions

Operating relative humidity (H-H): 5 - 40%
Storage relative humidity (H-H): 20 - 85%
Operating temperature (T-T): 10 - 90 °C
Storage temperature (T-T): -20 - 60 °C

Weight & dimensions

Width: 265 mm
Depth: 335 mm
Height: 258 mm
Weight: 3.04 kg

Packaging data

Quantity per pack: 1 pc(s)
Package weight: 3.96 kg

Packaging content

Cables included: AC, USB
Feature: Quick start guide
Feature: Warranty card
Feature: AC adapter included
Feature: Software development kit (SDK)
Feature: Starter roll included

Logistics data

Harmonized System (HS) code: 84433210
Pallet gross height: 14.4 cm
Pallet gross weight: 176.4 kg
Master (outer) cases per pallet: 40 pc(s)
Master (outer) cases per pallet layer: 8 pc(s)
Layers per pallet: 5 pc(s)
Products per pallet: 40 pc(s)

Technical details

Pallet type: 800 x 1200 mm

Other features

Networking features: 10/100BASE-TX
LED indicators: Error, Power, Status
Country of origin: China
Feature: Date & time printing
Number of languages: 18
