Switch, TELTONIKA, Switch type Unmanaged, Form factor DIN rail, 5xRJ-45 ports, RJ-45 Ports Type Fast Ethernet (10 / 100)
Product reference: 2-4779051841356
  • New
Switch, TELTONIKA, Switch type Unmanaged, Form factor DIN rail, 5xRJ-45 ports, RJ-45 Ports Type Fast Ethernet (10 / 100)
Switch, TELTONIKA, Switch type Unmanaged, Form factor DIN rail, 5xRJ-45 ports, RJ-45 Ports Type Fast Ethernet (10 / 100)
Switch, TELTONIKA, Switch type Unmanaged, Form factor DIN rail, 5xRJ-45 ports, RJ-45 Ports Type Fast Ethernet (10 / 100)
Switch, TELTONIKA, Switch type Unmanaged, Form factor DIN rail, 5xRJ-45 ports, RJ-45 Ports Type Fast Ethernet (10 / 100)
Switch, TELTONIKA, Switch type Unmanaged, Form factor DIN rail, 5xRJ-45 ports, RJ-45 Ports Type Fast Ethernet (10 / 100)
Switch, TELTONIKA, Switch type Unmanaged, Form factor DIN rail, 5xRJ-45 ports, RJ-45 Ports Type Fast Ethernet (10 / 100)
Switch, TELTONIKA, Switch type Unmanaged, Form factor DIN rail, 5xRJ-45 ports, RJ-45 Ports Type Fast Ethernet (10 / 100)
Switch, TELTONIKA, Switch type Unmanaged, Form factor DIN rail, 5xRJ-45 ports, RJ-45 Ports Type Fast Ethernet (10 / 100)
Switch, TELTONIKA, Switch type Unmanaged, Form factor DIN rail, 5xRJ-45 ports, RJ-45 Ports Type Fast Ethernet (10 / 100)
Switch, TELTONIKA, Switch type Unmanaged, Form factor DIN rail, 5xRJ-45 ports, RJ-45 Ports Type Fast Ethernet (10 / 100)

Switch, TELTONIKA, Switch type Unmanaged, Form factor DIN rail, 5xRJ-45 ports, RJ-45 Ports Type Fast Ethernet (10 / 100)

Product reference: 2-4779051841356
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
3447 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

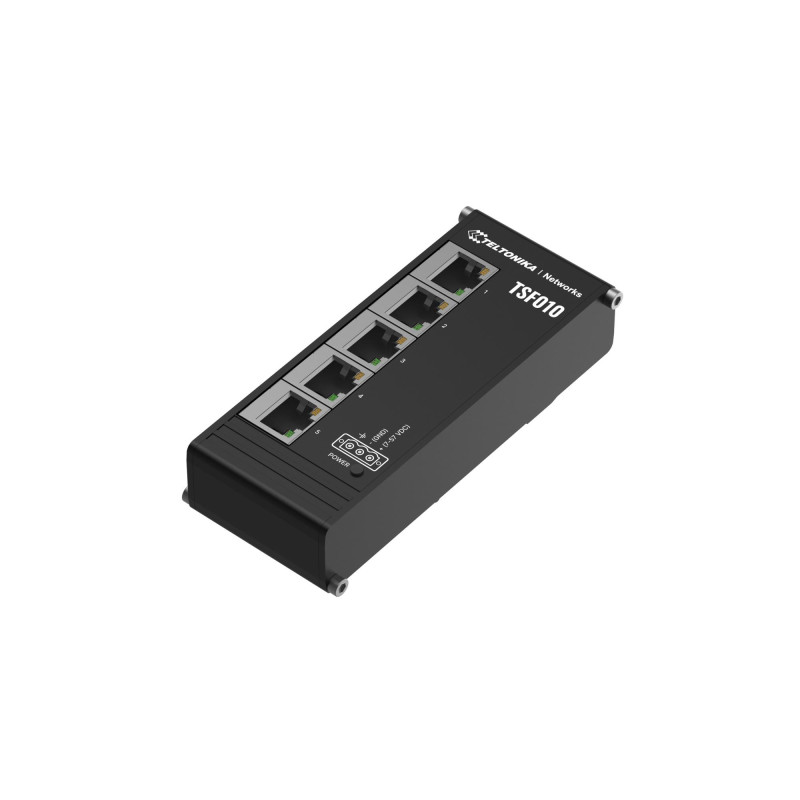

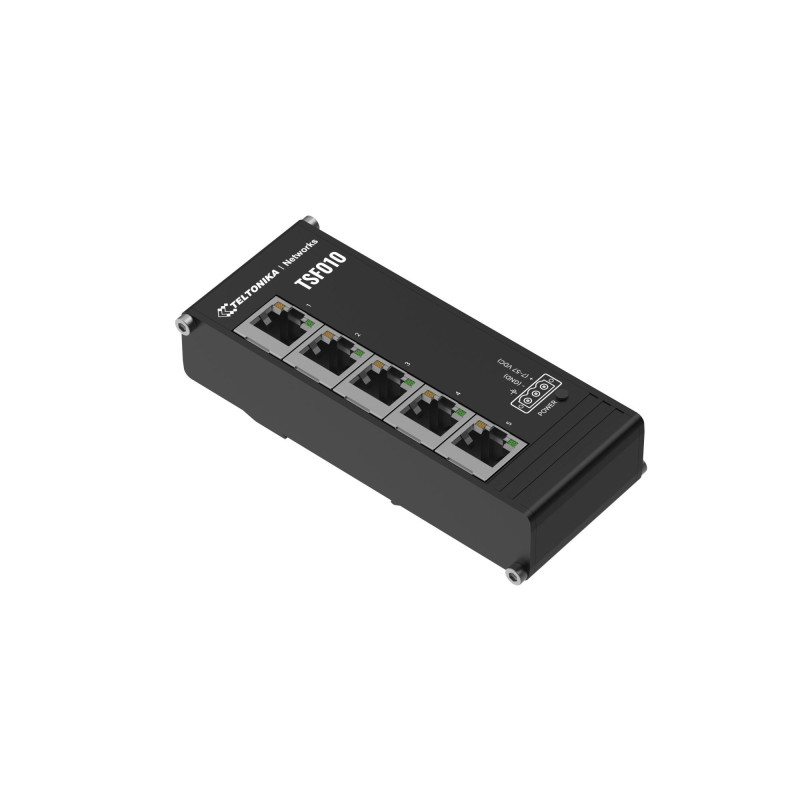

The TSF010 is an unmanaged Ethernet switch featuring a flat design and integrated DIN rail mounting for plug-and-play deployment in industrial cabinet applications. This Ethernet switch is compact and lightweight, measuring 113 x 28 x 50 mm and weighing only 142 g. Its 3-pin power input and 7-57 VDC voltage range make it a flexible unmanaged switch tailor-made for industrial use. The TSF010 is equipped with five 10/100 Mbps RJ45 ports for reliable connectivity.

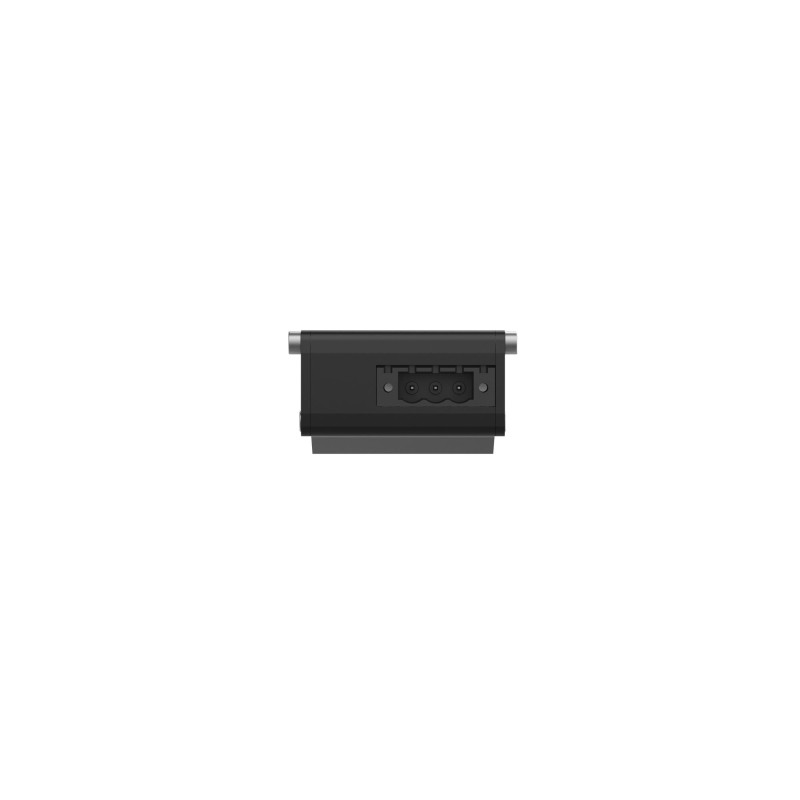

  • 3-PIN POWER INPUT
  • Flexible and tailor-made for industrial use
  • FLAT & COMPACT
  • Flat and compact design weighing only 142 g

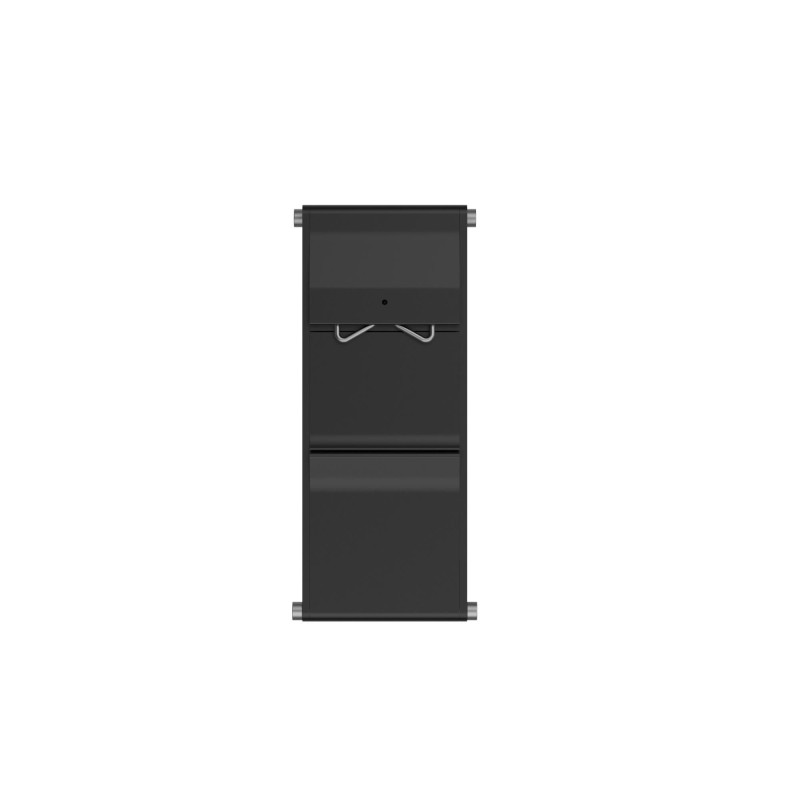

  • INTEGRATED DIN RAIL BRACKET
  • Easy mounting for plug-and-play deployment
  • 7-57 VDC
  • Suitable voltage range for industrial applications

Summary Teltonika NETWORKS TSF010 Flat Ethernet Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2048 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Form factor: DIN rail
Vendor Homepage https://teltonika-networks.com/products/ethernet-switches/TSF010/
Unit Box Height 0.031
Unit Box Length 0.139
Unit Box Width 0.055
Switch type Unmanaged
Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity 5
10G support No
Auto MDI/MDI-X Yes
Full duplex Yes
Networking standards IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x
Jumbo frames 9216
Jumbo frames support Yes
MAC address table 2048 entries
Switching capacity 10 Gbit/s
DIN rail mounting Yes
Form factor DIN rail
Housing material Aluminium
International Protection (IP) code IP30
Product colour Black
Rack mounting No
Stackable No
Input voltage 7 - 57 V
Power consumption (max) 1.5 W
Power consumption (typical) 1 W
Power source DC
Power supply included No
Power over Ethernet (PoE) No
Operating relative humidity (H-H) 10 - 90 %
Operating temperature (T-T) -40 - 75 °C
Depth 50 mm
Height 28 mm
Weight 142 g
Width 113 mm
Units per Shipping Box 1
Unit Calculated Volume 0.000237 cubm
Unit Calculated Weight 0.15 kg
