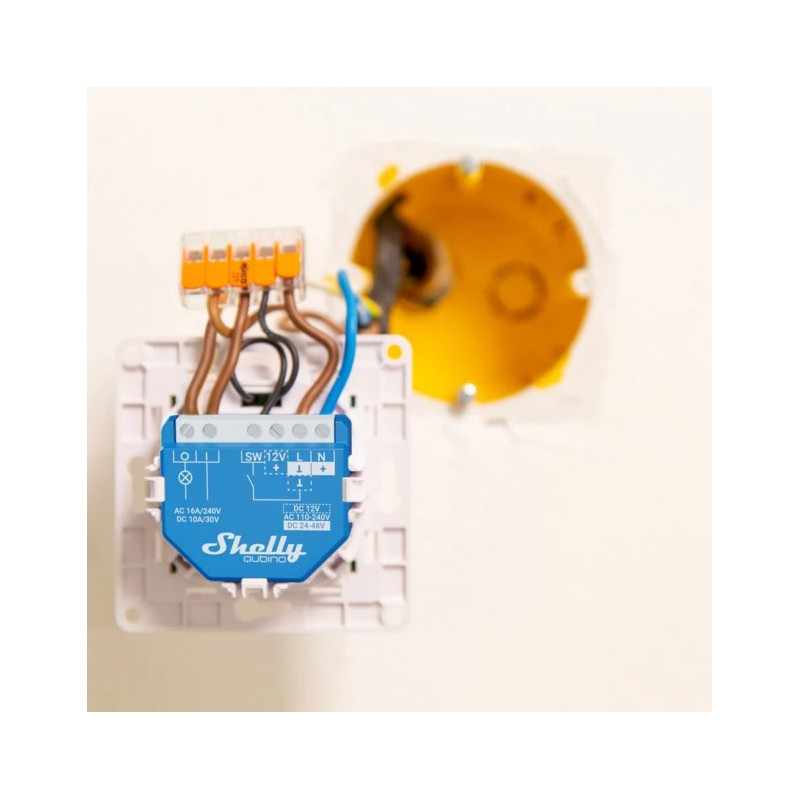

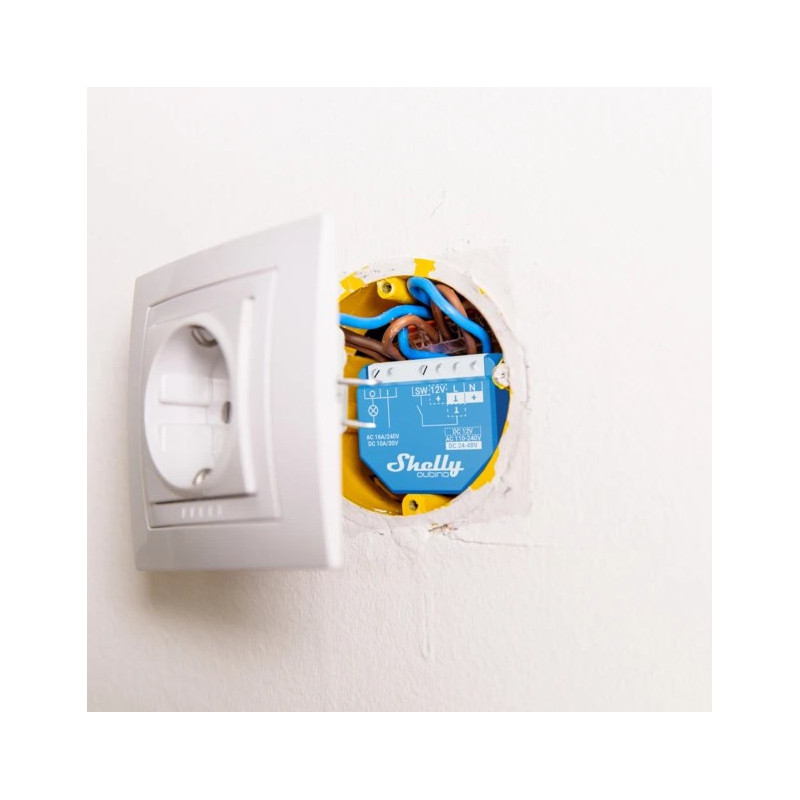

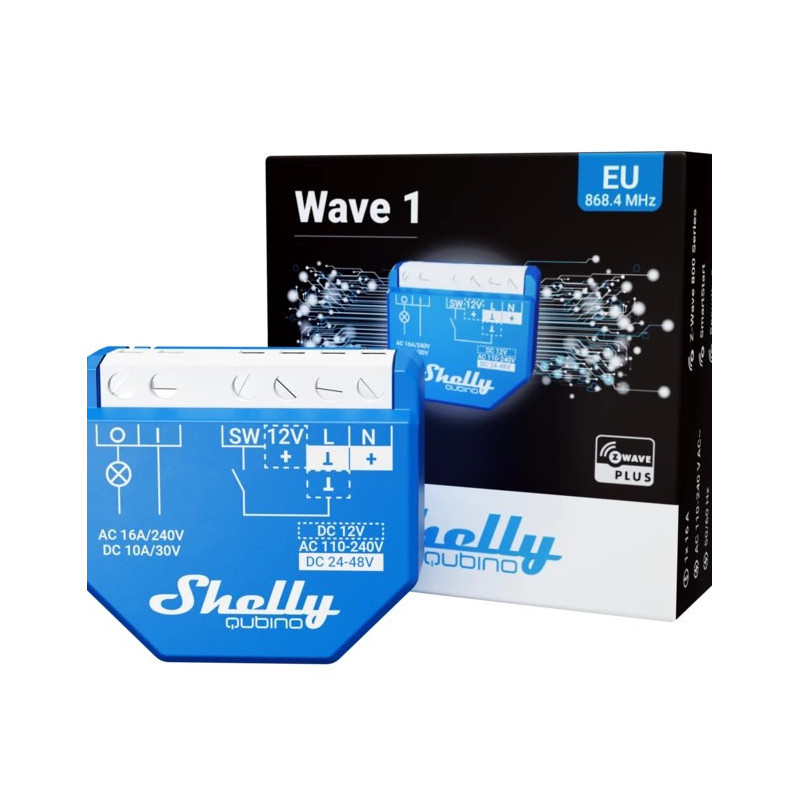

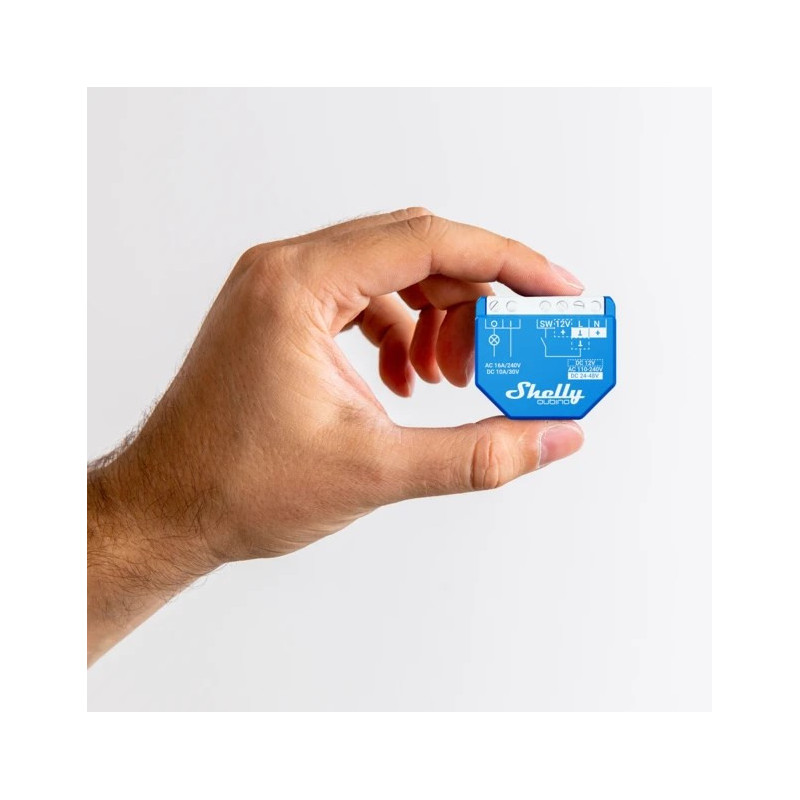

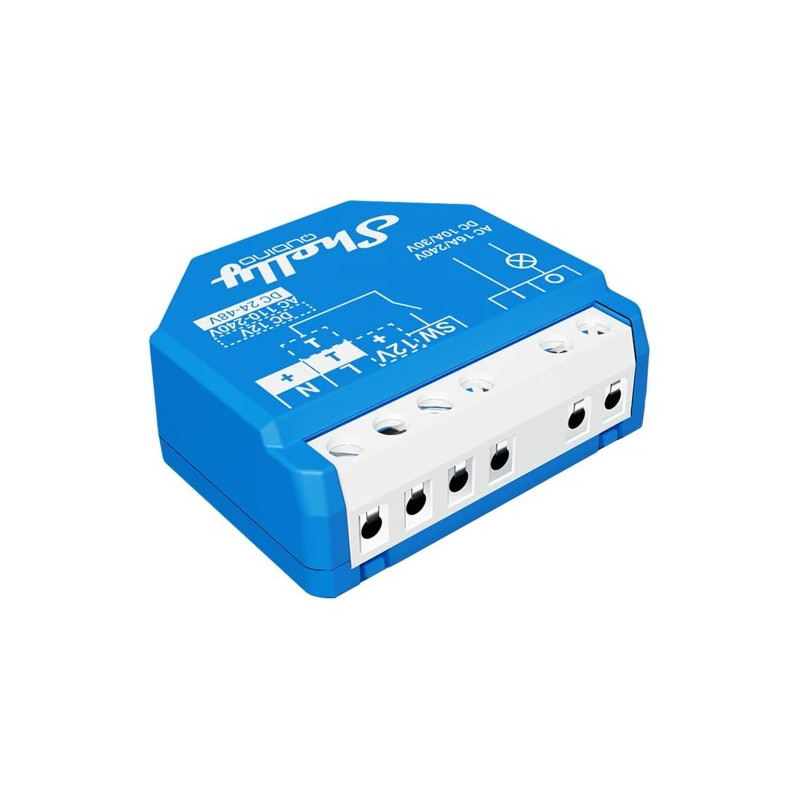

Smart Relay - Shelly Qubino Wave 1 1-Channel Z-Wave 16A 230V
Product reference:
14-3800235269039
1-channel flush-mounted relay with Z-Wave support and a maximum indoor operating range of up to 40 m. Operates at 110 - 240 V AC and has a breaking capacity of 16 A.
Smart Relay - Shelly Qubino Wave 1 1-Channel Z-Wave 16A 230V
Product reference:
14-3800235269039
1-channel flush-mounted relay with Z-Wave support and a maximum indoor operating range of up to 40 m. Operates at 110 - 240 V AC and has a breaking capacity of 16 A.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
Shelly Qubino Wave 1 - 1-channel built-in relay/Z-Wave controller 230 V
1-channel flush-mounted relay with Z-Wave support and a maximum indoor range of 40 m. Operates on 110 - 240 V AC and has a breaking capacity of 16 A.
- Smart relay with Z-Wave compatibility for seamless home automation
- Compact design with wall mount option for easy installation
- Overheating protection ensures safe operation
- Wide operating temperature range from -20 to 40 °C for a variety of applications
Features | |
|---|---|
| Maximum indoor range | 40 years |
| Product color | Blue |
| Housing | Plastic |
| Wire size range | 0.5 - 1.5 mm² |
| Transmission power | 25 dBmW |
| Mounting type | Wall |
| Type | Smart relay |
| Supported radio protocols | Z-Wave |
| Radio frequency | 868.4 MHz |
Power | |
| DC voltage range | 24 - 48V |
| Interrupting capacity | 16 A |
| Rated current | 0.3A |
| AC input voltage | 110 - 240V |
| Maximum switching voltage (AC) | 240V |
| Maximum switching voltage (DC) | 30V |
Operating conditions | |
| Operating temperature | -20 - 40 °C |
| Operating relative humidity | 30 - 70% |
Weight and dimensions | |
| Weight | 26 grams |
| Height | 37 mm |
| Depth | 16 mm |
| Width | 42 mm |
Packaging details | |
| Quantity per package | 1 pc. |
