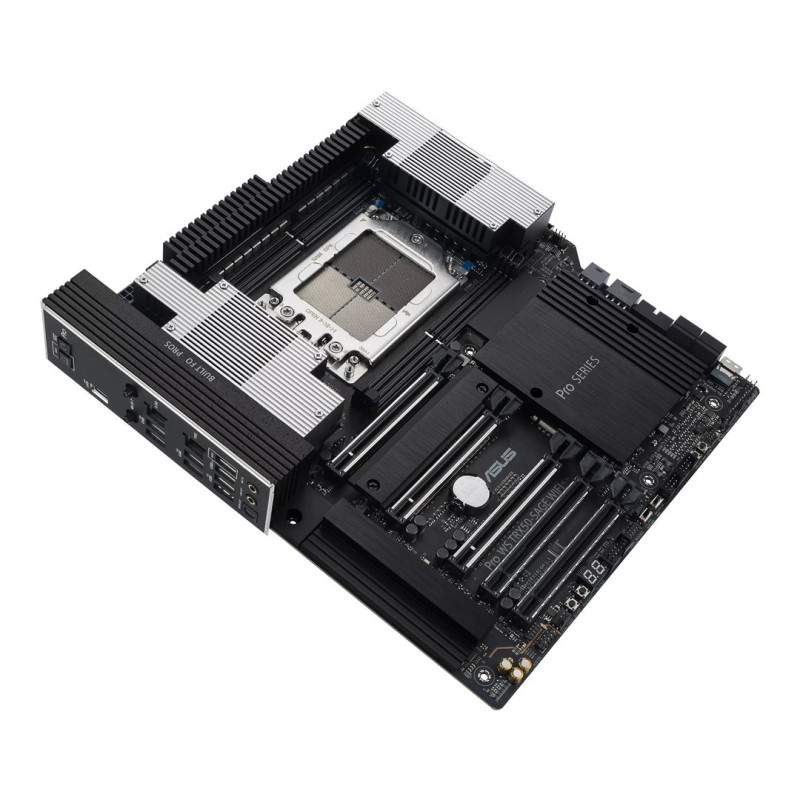

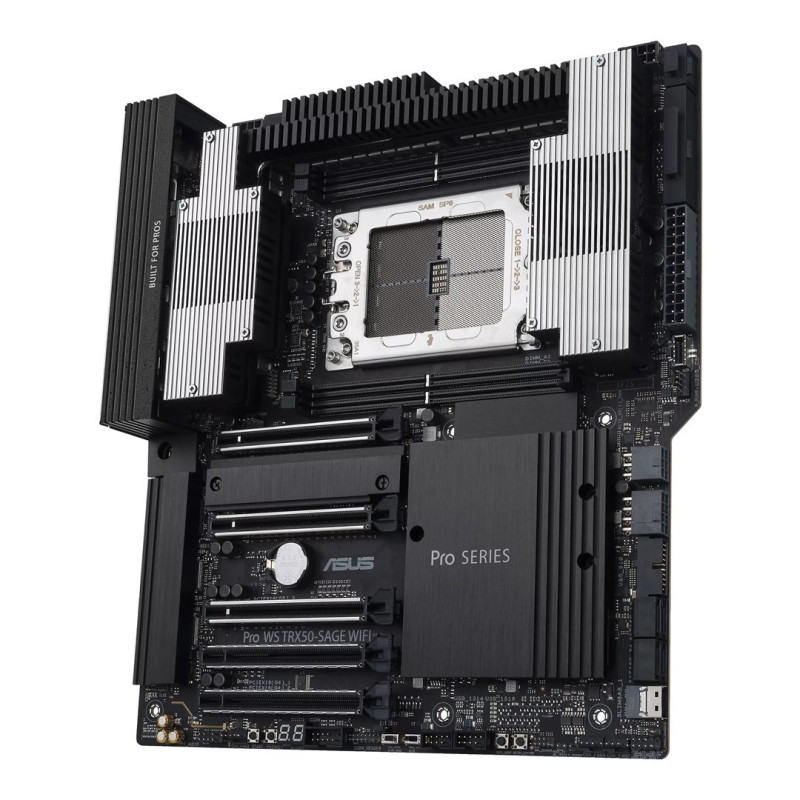

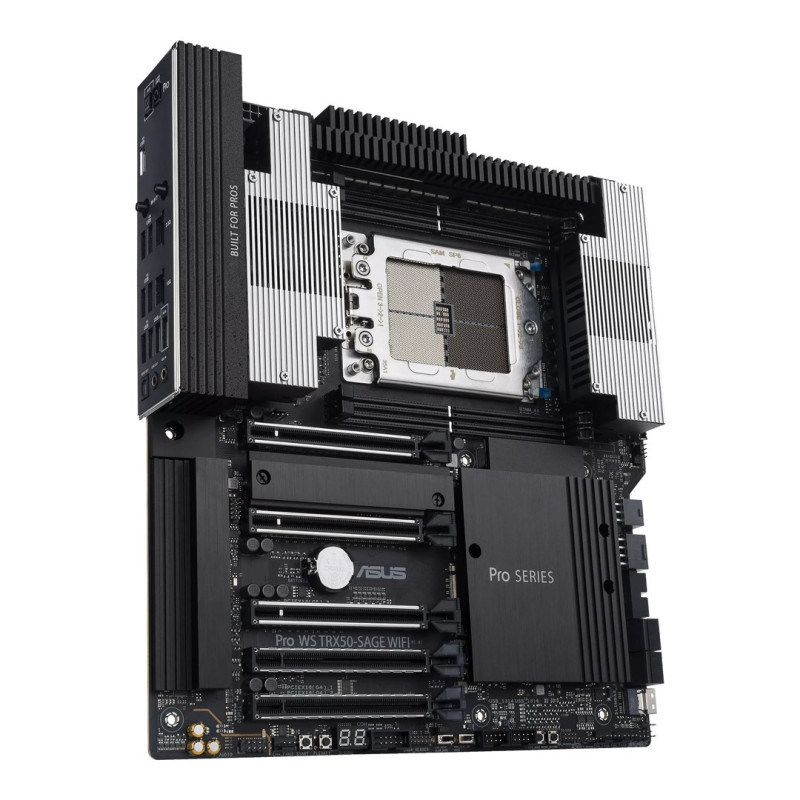

Server - ASUS Pro WS TRX50-SAGE WIFI
Product reference:
14-4711387402726
The system, with a 16-core, 32-thread processor, supports up to 128GB of DDR4 RAM, Wi-Fi 6 connectivity, and an M.2 NVMe SSD, ensuring data redundancy and performance with RAID levels 10, 0, 1, and 5.
Server - ASUS Pro WS TRX50-SAGE WIFI
Product reference:
14-4711387402726
The system, with a 16-core, 32-thread processor, supports up to 128GB of DDR4 RAM, Wi-Fi 6 connectivity, and an M.2 NVMe SSD, ensuring data redundancy and performance with RAID levels 10, 0, 1, and 5.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
Server system - ASUS TRX50
The ASUS TRX50 server system is a high-performance computing platform with 16 cores and 32 threads for demanding tasks. It supports up to 128GB of DDR4 RAM, ensuring smooth performance even with resource-intensive applications.
Main features
- Up to 128GB DDR4 RAM support
- Multi-disk options (M.2 NVMe SSD and SATA III) with RAID levels 10, 0, 1 and 5
- 12 USB ports (6x USB 3.2 Gen 2, 2x USB 2.0)
- Wi-Fi 6 (802.11ax) and 2 Ethernet LAN ports
Processor | |
|---|---|
| Compatible processor series | AMD Ryzen™ Threadripper™ |
| Processor socket | Socket sTR5 |
| Processor manufacturer | AMD |
Features | |
| Audio chip | Realtek ALC1220P |
| Product color | Black |
| Motherboard chipset family | AMD |
| Component | Workstation |
| Motherboard form factor | SSI CEB |
| Motherboard chip | AMD TRX50 |
| Supported Windows operating systems | Windows 10 x64, Windows 11 |
Memory | |
| Memory slot type | DIMMs |
| ECC | Yes |
| Supported memory types | DDR5 ECC RDIMM |
| Memory channels | Quadra channel |
| Number of memory slots | 4 |
Weight and dimensions | |
| Width | 305mm |
| Depth | 280 mm |
Network | |
| Bluetooth | Yes |
| LAN controller | Intel I226-LM |
| Ethernet interface type | 10 Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Bluetooth version | 5.4 |
Internal I/O | |
| Front panel audio connector | Yes |
| USB 2.0 ports | 2 |
| ATX power connector (24 pins) | Yes |
| CPU cooler connector | Yes |
| EPS power connector (8 pins) | Yes |
| Housing break-in connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis cooler connections | 4 |
| Number of COM ports | 1 |
| USB 3.2 Gen 2x2 ports | 1 |
| 12V power connector | Yes |
| Integrated SAS ports | 1 |
| TPM connector | Yes |
BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | Yes |
Packaging details | |
| Package weight | 4.85 kg |
| Package width | 320mm |
| Package height | 100mm |
| Package depth | 380mm |
Package contents | |
| Cables included | PCIe, SATA |
Memory controllers | |
| Supported storage drive types | HDD SSD |
| RAID support | Yes |
| RAID levels | 10, 0, 1, 5 |
| Supported storage drive interfaces | M.2, SATA III |
| Number of supported storage drives | 7 |
| Number of HDDs supported | 4 |
Rear panel I/O ports | |
| S/PDIF out port | Yes |
| USB connection type | USB Type-C, USB Type-A |
| Ethernet LAN (RJ-45) ports | 2 |
| Number of USB 2.0 ports | 2 |
| Number of USB 3.2 Gen 2x2 Type-C ports | 1 |
| WiFi-AP antenna connector | 1 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports | 6 |
| Microphone input | Yes |
Expansion slots | |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 5.x) slots | 3 |
| PCI Express x16 (Gen 4.x) slots | 2 |
Other features | |
| Weight | 2.53 kg |
