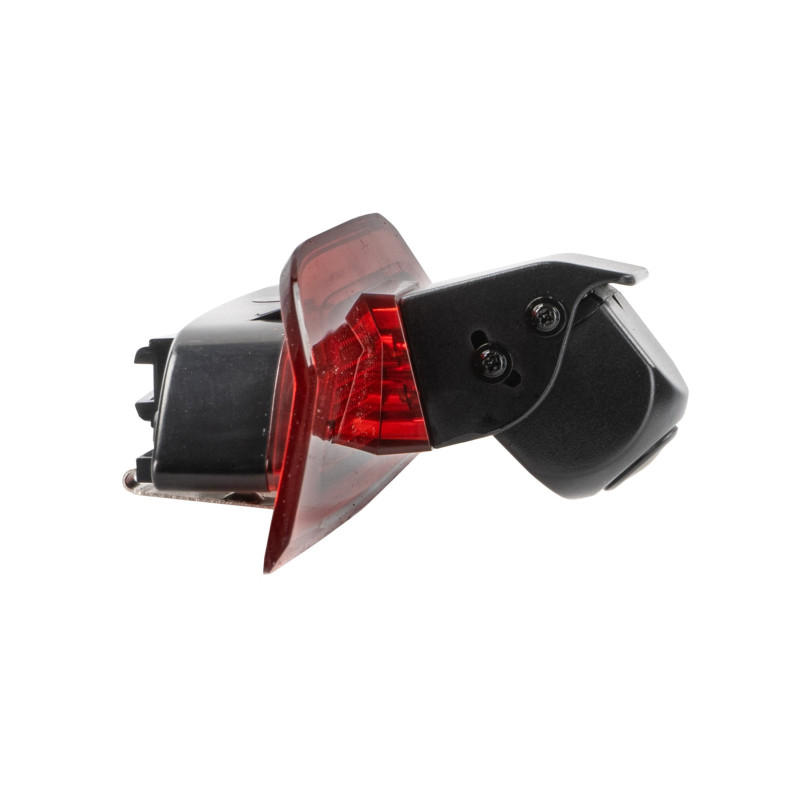

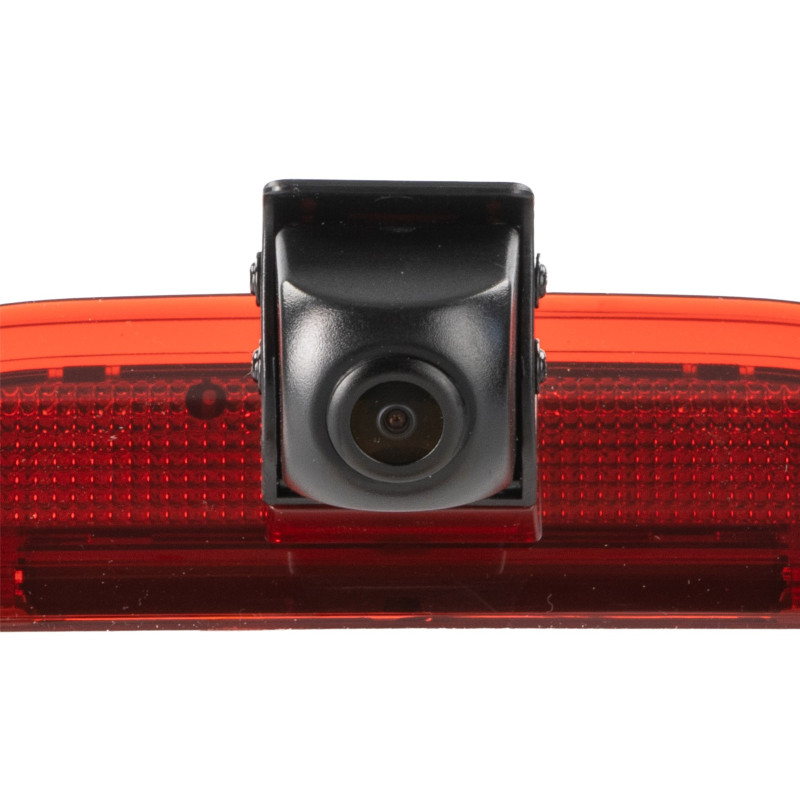

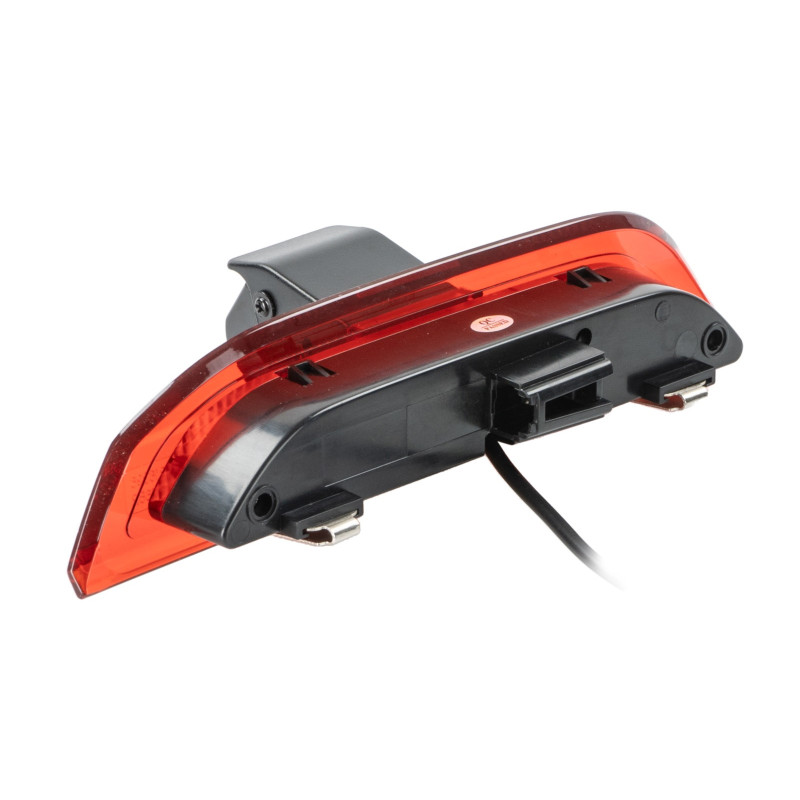

Reversing camera Ford Transit Connect / Courier 2023-2025

Application:

• Ford Transit Connect (SK) 05/2024 - 2025

• Ford Transit Courier (N3P) 10/2023 - 2025

• Ford E-Transit Courier (N3P) 03/2025 - 2025

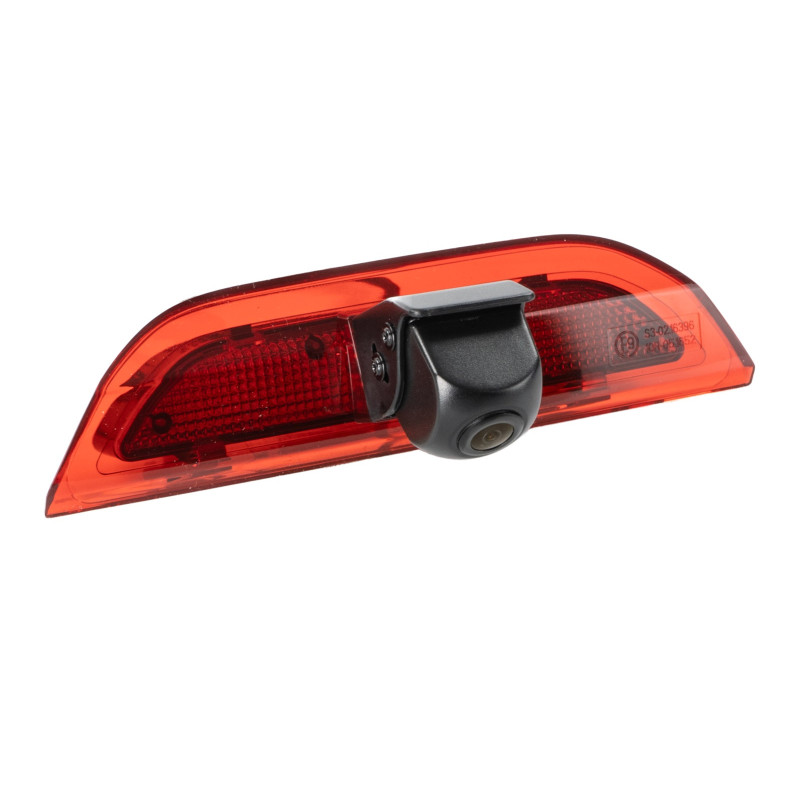

The rear view camera is designed forreplacing the original third brake light, offering an additional functionauxiliary linesandadjustable viewing angle.
Thanks to it, maneuvering the vehicle becomes safer and more comfortable - both during the day and at night.

⚠Attention:
Before installation, check the viewing angle and camera position at the mounting location using a test monitor.
Connecting without a +3V voltage converter (included) may damage the camera!

• Design:plastic

• Color:black / red

• Guide lines:activated/deactivated by jumper

• Viewing angle:horizontal 115°, vertical 75° (+5° adjustment)

• Image sensor:1/3" CMOS

• TV system:NTSC

• Effective pixels:976 × 592

• Lens:12.6 mm

• Minimum lighting:0.1 lux

• Resolution:600 TV lines

• Degree of protection:IP67

• Power supply:+12V / +24V (DC)

• Camera power supply:+3V DC (via converter)

• Power consumption:100 mA

• Operating temperature:-20°C ~ +70°C

• Storage temperature:-40°C ~ +80°C

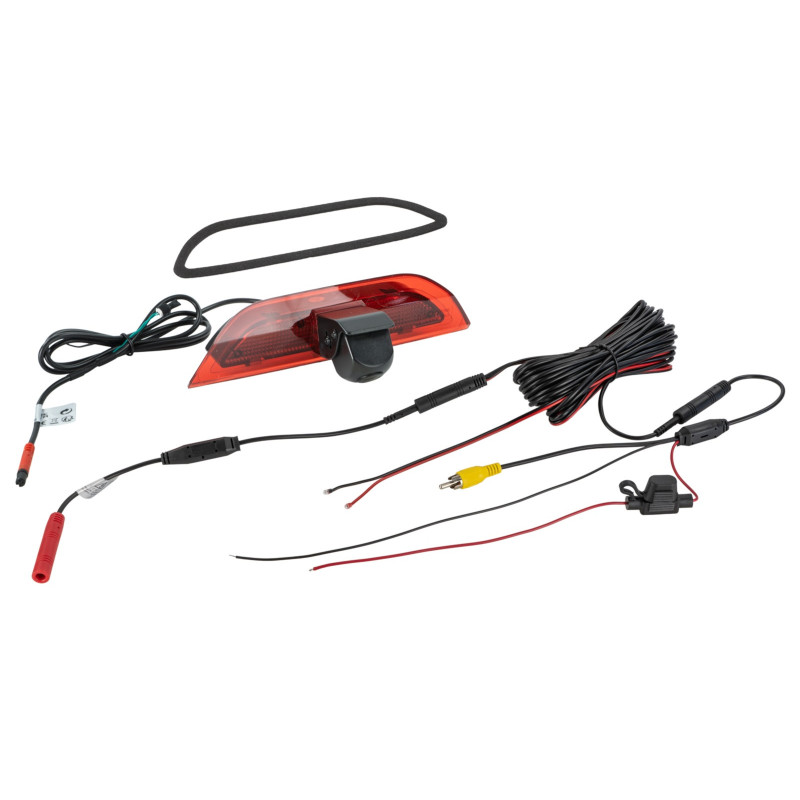

• 4-pin ACV system connector (m) Ø5.2 mm

• Camera cable:3.3 m

• +3V voltage converter:4-pin ACV connector (f) Ø10 mm / (m) Ø5.2 mm

Connecting cable (20 cm):
