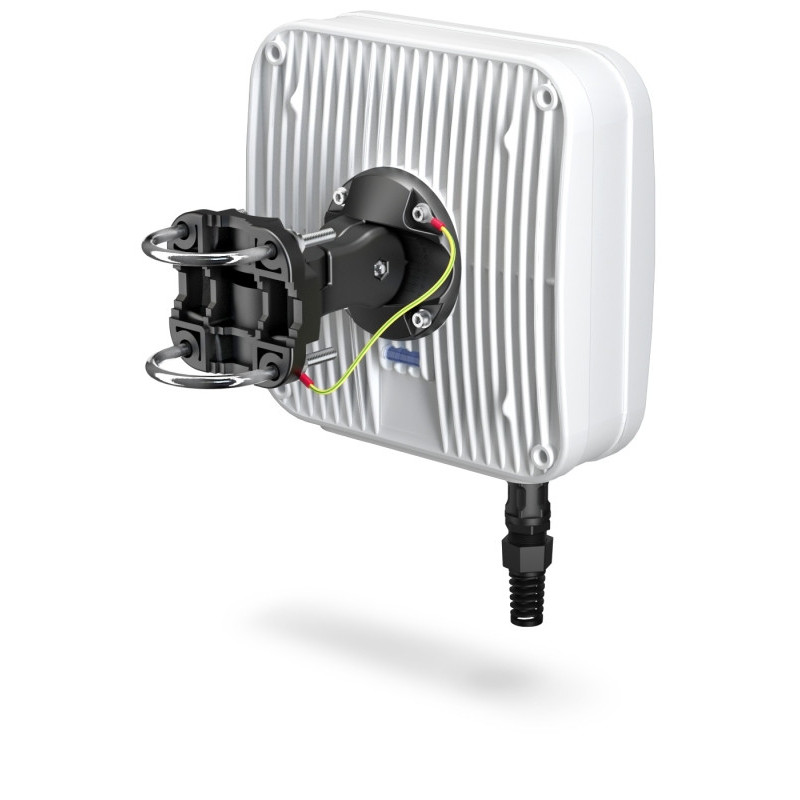

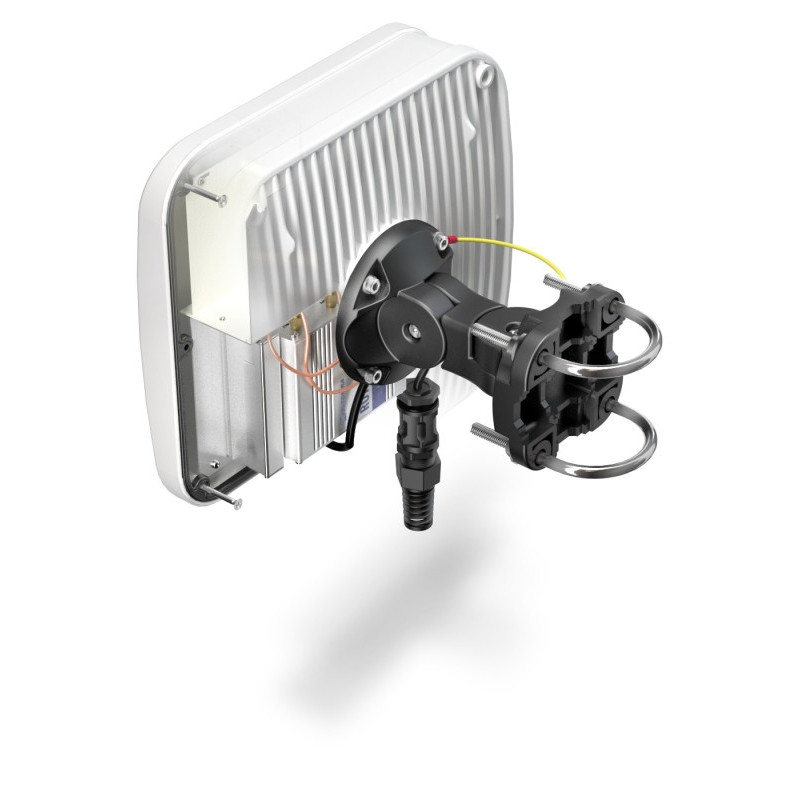

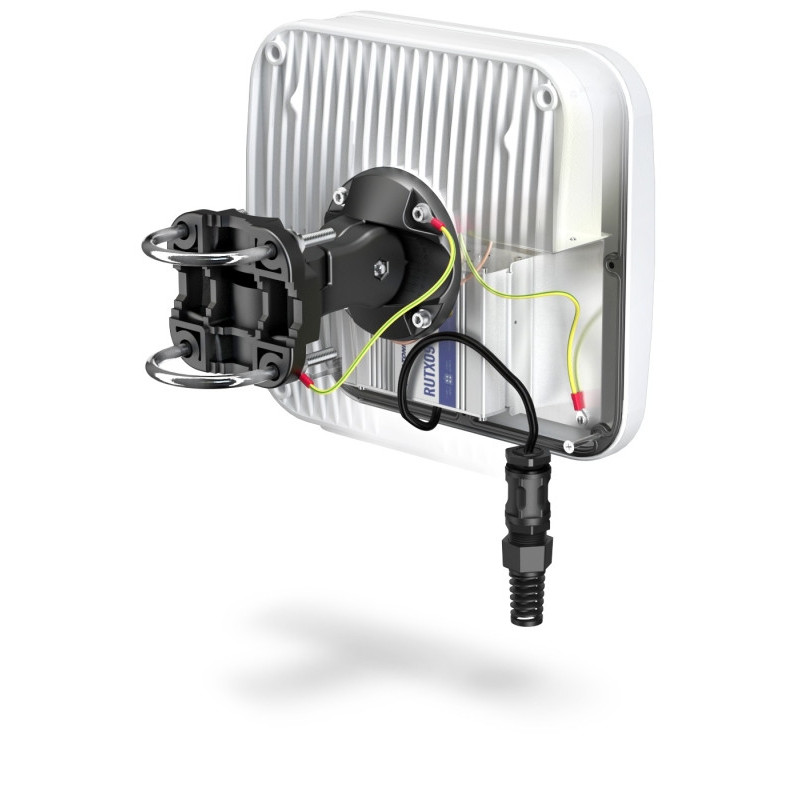

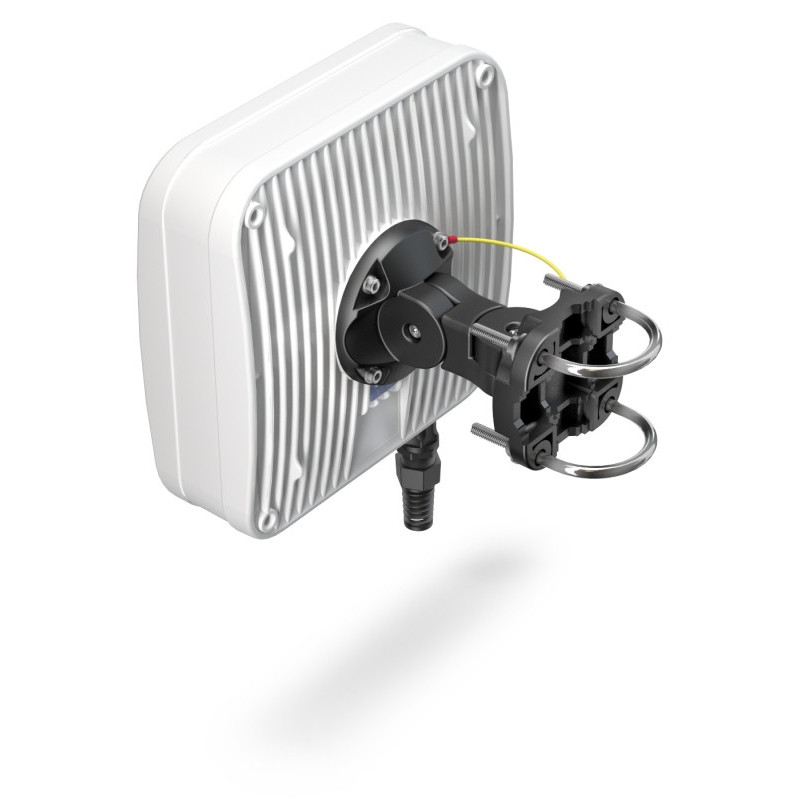

QuWireless QuMax for Teltonika rutX09

QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have TeltonikaRUTX09router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environments.It also has an embedded GPS antenna.

LTE Specifications:• Frequency: * 0.694-0.96 GHz; * 1.7 - 2.2 GHz; * 2.2 - 2.7 GHz; • Gain: * 4 dBi; * 5 dBi; * 6 dBi; • VSWR: * <1.50, max <2.00; * <1.30, max <1.60; * <1.30, max <1.60; • Beamwidth: * 90°/90° +/- 30°; * 90°/90° +/- 30°; * 90°/90° +/- 30°; • Polarization: Vertical; • Impedance: 50 Ω.

Mechanical Specification:• Materials: ABS, aluminum, PTFE, Fiberglass; • Ingress Protection: IP67; • Dimensions: 272 x 276 x 96 mm (10.71 x 10.87 x 3.78 inch); • Weight: 1.8 kg (3.97 lbs); • Operating Temperature: From -40°C to 75°C (From -40°F to 167°F).
