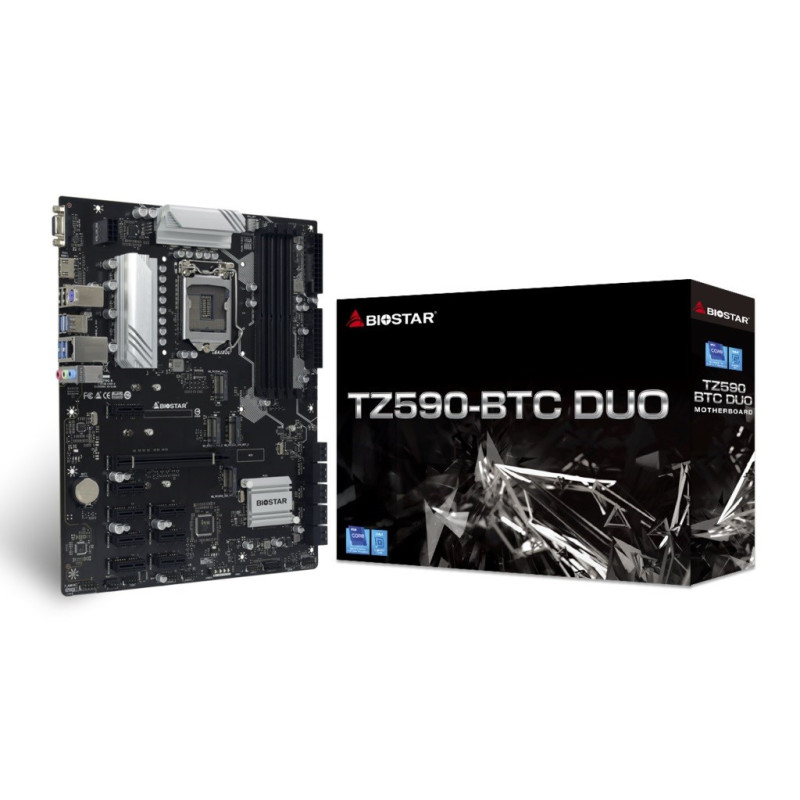

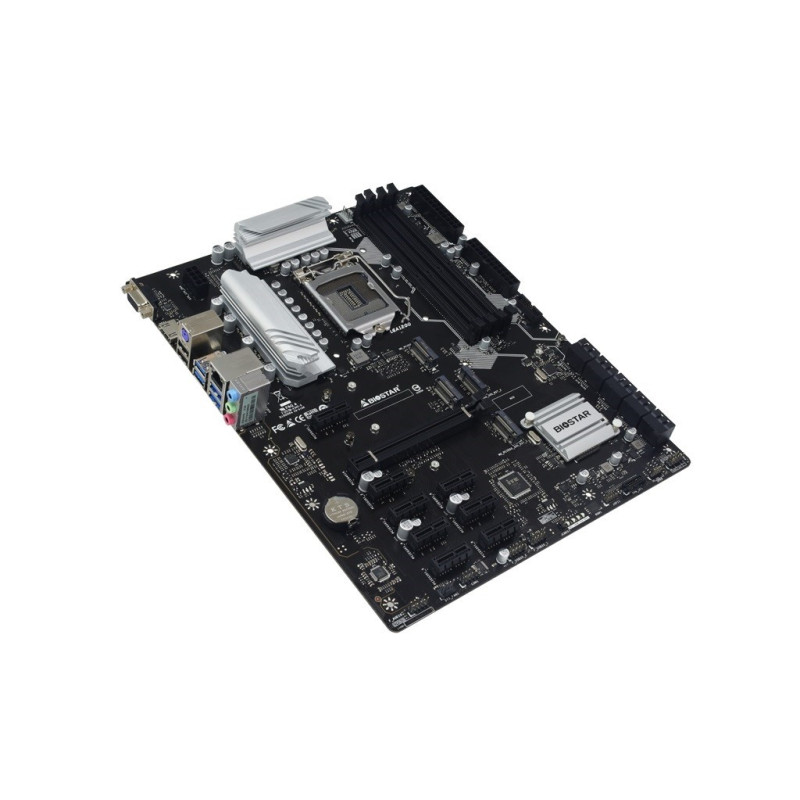

Motherboard - Biostar TZ590-BTC DUO Intel Z590 LGA 1200 128GB 4xM.2 10xSATA
Product reference:
14-4712960685550
The Biostar TZ590-BTC DUO motherboard supports Intel LGA 1200 processors, has up to 128 GB of internal memory and 4 memory slots. It features 10 SATA III connectors, 4 M.2 slots, and a variety of rear I/O ports, including USB 3.2 and HDMI.
Motherboard - Biostar TZ590-BTC DUO Intel Z590 LGA 1200 128GB 4xM.2 10xSATA
Product reference:
14-4712960685550
The Biostar TZ590-BTC DUO motherboard supports Intel LGA 1200 processors, has up to 128 GB of internal memory and 4 memory slots. It features 10 SATA III connectors, 4 M.2 slots, and a variety of rear I/O ports, including USB 3.2 and HDMI.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
Biostar TZ590-BTC DUO
Compatible with Intel LGA 1200 processors, the maximum internal memory size is 128 GB, with 4 memory slots. Equipped with 10 SATA III connectors, 4 M.2 slots and various rear I/O ports, including USB 3.2 and HDMI.
- Compatible with Intel® Core™ i7, i9, i5 and i3 processors with LGA 1200 socket.
- Equipped with the Intel Z590 chipset and 7.1 channel audio to improve performance.
- The maximum internal memory size is 128 GB, supporting DDR4-SDRAM at speeds up to 3600 MHz.
- Offers extensive connectivity options, including 10 SATA III connectors and multiple USB ports.
Processor | |
|---|---|
| Processor manufacturer | Intel |
| Composite processors | Intel® Core™ i7, i9, i5, i3 |
| Processor socket | LGA 1200 (Socket H5) |
Graphics | |
| HDCP | Yes |
Features | |
| Motherboard chipset | Intel Z590 |
| Audio chip | Realtek ALC887 |
| Motherboard format type | ATX |
| Supported Windows operating systems | Windows 10 x64, Windows 11 x64 |
| Audio output channels | 7.1 channels |
| Motherboard chipset family | Intel |
| Product color | Black |
Memory | |
| Supported memory clock speeds | 2400, 2800, 2933, 3600 MHz, 2133, 3200, 2666 |
| Memory channels | Dual channel |
| Number of memory slots | 4 |
| ECC compatibility | Non-ECC |
| Supported memory types | DDR4-SDRAM |
Weight and dimensions | |
| Width | 305mm |
| Depth | 244 mm |
Network | |
| LAN controller | Intel I219V |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet, Fast Ethernet |
Internal I/O | |
| Number of SATA III connectors | 10 |
| Number of USB 2.0 ports | 2 |
| Number of USB 3.2 Gen 1 ports | 1 |
| Number of M.2 slots | 4 |
Rear I/O ports | |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of USB 2.0 ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| USB 3.2 Gen 1 Type-A ports quantity | 4 |
| Number of HDMI ports | 1 |
Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 8 |
| PCI Express x16 (Gen 4.x) slots | 1 |
Safety warning | |
| Warnings | Do not make any changes or modifications to the device as this may void the warranty or cause damage. Be careful during installation to avoid damage to electronic components caused by electrostatic discharge. Avoid contact with liquids to avoid damage to electronic components. |
