Motherboard - ASUS TUF Gaming H770-Pro WiFi
Product reference:
14-4711387008249
The ASUS TUF GAMING H770-PRO WIFI motherboard with four M.2 slots and one PCIe x16 (Gen 5.x) slot delivers excellent performance, supporting up to eight storage devices and high-definition graphics output via DisplayPort 1.4 and HDMI 2.1 connectors.
Motherboard - ASUS TUF Gaming H770-Pro WiFi
Product reference:
14-4711387008249
The ASUS TUF GAMING H770-PRO WIFI motherboard with four M.2 slots and one PCIe x16 (Gen 5.x) slot delivers excellent performance, supporting up to eight storage devices and high-definition graphics output via DisplayPort 1.4 and HDMI 2.1 connectors.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Europe in
8 - 9
business days
Motherboard - ASUS Tuf Gaming H770 Pro WiFi
Supports up to 8 storage devices with RAID levels 0, 5, 10, and 1. Equipped with a PCIe x16 connector (Gen 5.x) in addition to Gen 4.x, and a high-speed USB Type-C port for demanding applications such as gaming or professional workstations.
Main features
- Four M.2 slots for maximum storage flexibility
- Pcie x16 connector (Gen 5.x) for high-end GPU support
- High-speed USB Type-C port with Gen 3.2 speeds
Processor | |
|---|---|
| Maximum number of SMP processors | 1 |
| Processor socket | LGA 1700 |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3 |
| Supported processor sockets | LGA 1700 |
Graphics | |
| Support for parallel processing technologies | Not supported |
Features | |
| Power supply type | ATX |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Motherboard chip | Intel H770 |
| Motherboard chipset family | Intel |
| Supported Windows operating systems | Windows 10, Windows 11 |
| Cooling type | Hidden |
Memory | |
| Unloaded memory | Yes |
| Supported memory clock speeds | 7000, 6600, 6800, 4800, 5600, 7200 MHz, 5200, 5800, 5400, 6400, 6000, 6200, 5000 |
| Maximum internal memory | 128GB |
| Memory channels | Dual channels |
| Supported memory clock speed (max) | 7200MHz |
| Supported memory types | DDR5-SDRAM |
| Memory slot type | DIMMs |
| Number of memory slots | 4 |
Weight and dimensions | |
| Depth | 244 mm |
| Width | 305mm |
Network | |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| The highest Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 4 (802.11n), 802.11g, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), 802.11b |
Internal I/O | |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| ATX power connector (24-pin) | Yes |
| USB 2.0 ports | 2 |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 4 |
| Thunderbolt connectors | 1 |
| EPS power connector (8-pin) | Yes |
| Front panel connector | Yes |
| CPU cooler connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of COM ports | 1 |
| 12V power connector | Yes |
| Number of chassis cooler connections | 4 |
| Housing break-in connector | Yes |
| RGB LED pin connector | Yes |
BIOS | |
| BIOS type | UEFI AMI |
Packaging details | |
| Package weight | 1.98 kg |
| Package depth | 75 mm |
| Package width | 340mm |
| Package height | 270mm |
Package contents | |
| Cables included | SATA |
| User manual | Yes |
Storage controls | |
| RAID support | Yes |
| Supported storage device types | HDDs and SSDs |
| Supported storage device interfaces | M.2, SATA III |
| RAID levels | 0, 5, 10, 1 |
| Number of supported storage devices | 8 |
| Number of HDDs supported | 4 |

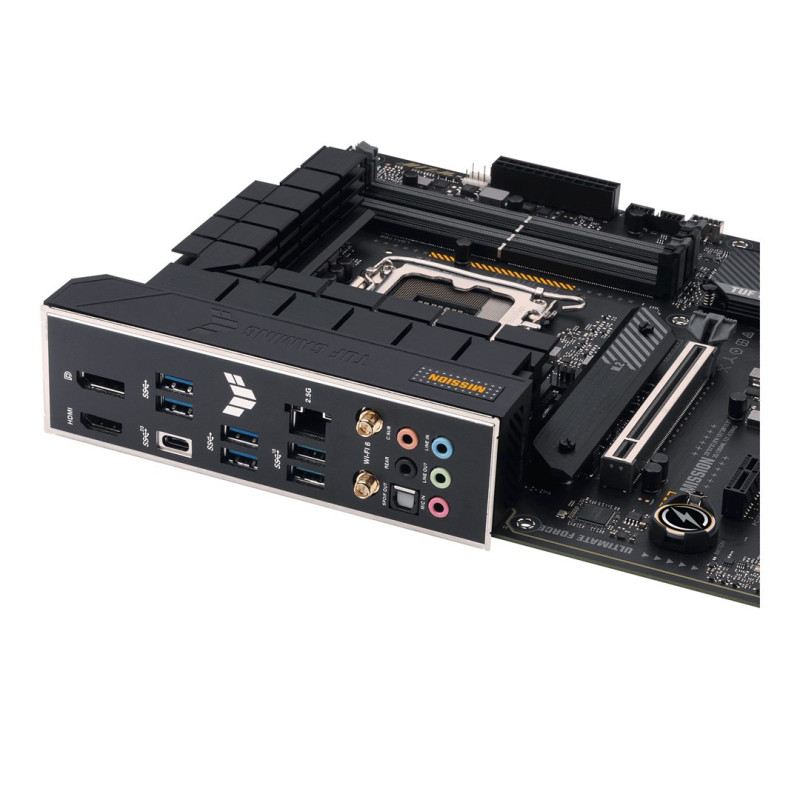

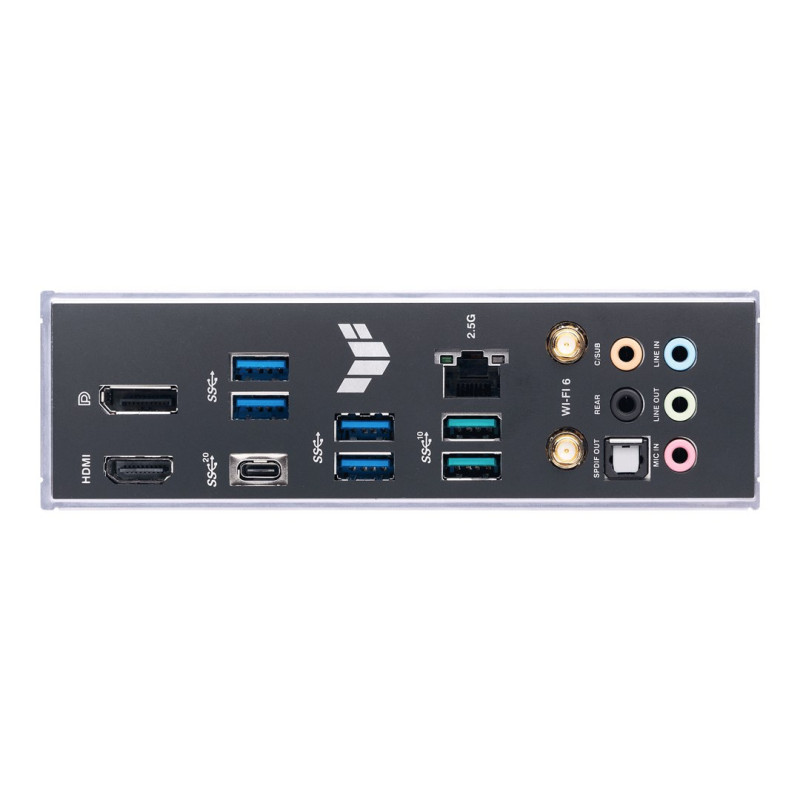

Rear panel I/O ports | |
| DisplayPort version | 1.4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of DisplayPorts | 1 |
| S/PDIF out port | Yes |
| Line-in | Yes |
| Number of USB 3.2 Gen 2x2 Type-C ports | 1 |
| HDMI version | 2.1 |
| WiFi-AP antenna connector | 2 |
| Microphone input | Yes |
| Headphone outputs | 1 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports | 2 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 4 |
| Number of HDMI ports | 1 |
Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 4 |
Safety warning:Do not dispose of the motherboard in your regular trash; the product requires special disposal.
