Motherboard - ASUS TUF GAMING B860-PLUS WIFI LGA 1851 DDR5 256GB Wi-Fi 7
Product reference:
14-4711387815144
It supports Intel Core Ultra processors with LGA 1851 socket and has DDR5 memory support, up to 256 GB. The device has Wi-Fi 7, 2.5 Gigabit Ethernet and multiple USB ports for convenient connectivity.
Motherboard - ASUS TUF GAMING B860-PLUS WIFI LGA 1851 DDR5 256GB Wi-Fi 7
Product reference:
14-4711387815144
It supports Intel Core Ultra processors with LGA 1851 socket and has DDR5 memory support, up to 256 GB. The device has Wi-Fi 7, 2.5 Gigabit Ethernet and multiple USB ports for convenient connectivity.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
ASUS TUF Gaming B860-Plus Wifi Intel B860 LGA 1851 ATX
Compatible with Intel Core Ultra processors with LGA 1851 socket and supports DDR5 memory with a maximum capacity of 256 GB. Equipped with Wi-Fi 7, 2.5 Gigabit Ethernet and multiple USB ports for connectivity.
- Supports Intel Core Ultra processors with LGA 1851 socket for high-quality gaming.
- Equipped with Wi-Fi 7 and Bluetooth 5.4 for fast and reliable wireless connectivity.
- Offers up to 256GB of DDR5 memory with dual-channel support for improved multitasking.
- Equipped with multiple USB ports and a 7.1 channel sound system to ensure an immersive gaming experience.
Processor | |
|---|---|
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (2 series) |
| Processor manufacturer | Intel |
| Supported processor sockets | LGA 1851 |
Graphics | |
| Integrated graphics card | No |
| Support for parallel processing technology | Supported |
Features | |
| Motherboard Chipset Family | Intel |
| Motherboard chip | Intel B860 |
| Supported Windows operating systems | Windows 11 |
| Audio output channels | 7.1 channels |
| Product color | Black |
| Motherboard format type | ATX |
Memory | |
| Maximum internal memory | 256GB |
| Number of memory slots | 4 |
| Memory channels | Dual channel |
| ECC compatibility | No |
| Unbuffered memory | Yes |
| Supported memory types | DDR5-SDRAM |
| Memory slot type | DIMMs |
Weight and dimensions | |
| Width | 305mm |
| Depth | 244 mm |
Network | |
| Wi-Fi | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth version | 5.4 |
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
Internal I/O | |
| 12V power connector | Yes |
| Number of chassis fan connectors | 4 |
| S/PDIF output connector | Yes |
| Chassis break-in connector | Yes |
| Number of SATA III connectors | 4 |
| Number of COM ports | 1 |
| Front panel audio connector | Yes |
| Thunderbolt headers | 1 |
| CPU fan connector | Yes |
| Front panel connector | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 2.0 ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
BIOS | |
| BIOS type | UEFI AMI |
Memory controllers | |
| RAID levels | 10, 0, 1, 5 |
| Number of supported storage devices | 7 |
| Number of HDDs supported | 4 |
| Supported storage device types | HDDs and SSDs |
| RAID support | Yes |
| Supported memory device interfaces | M.2, SATA III |

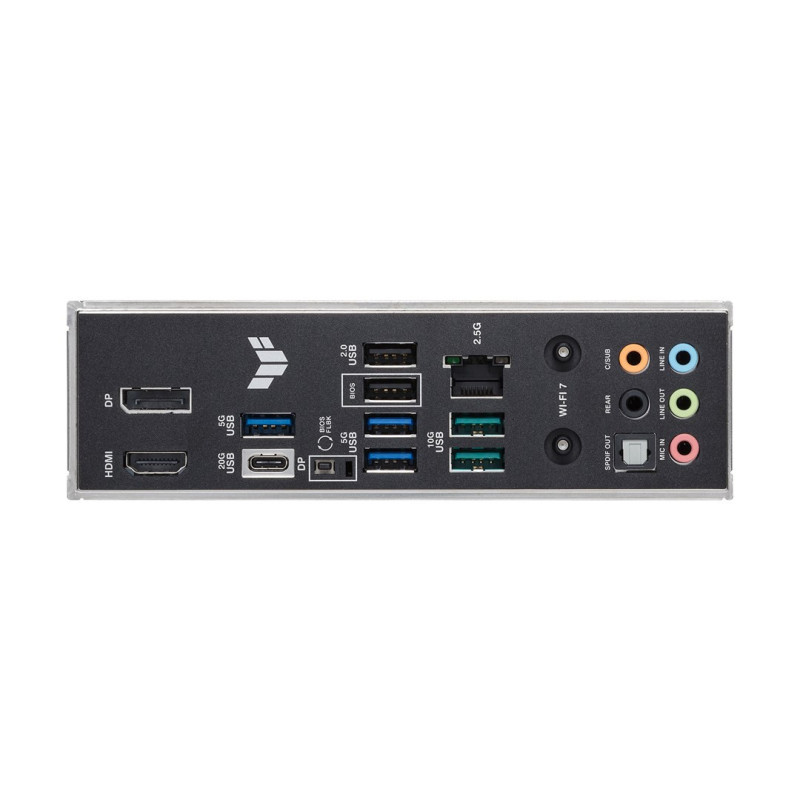

Rear panel I/O ports | |
| S/PDIF output port | Yes |
| Number of HDMI ports | 1 |
| WiFi-AP antenna connector | 1 |
| Number of USB 3.2 Gen 2x2 Type-C ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports | 2 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 3 |
| Number of DisplayPort ports | 1 |
| Number of USB 2.0 ports | 2 |
Additional sockets | |
| 1 M.2 highest PCI Express generation | 5.0 |
| 3 M.2 highest PCI Express generation | 4.0 |
| 2 M.2 maximum key size | 2280 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
| 2 M.2 highest PCI Express generation | 4.0 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| 3 M.2 maximum key size | 2280 |
| 1 M.2 maximum key size | 2280 |
| PCI Express x1 (Gen 4.x) slots | 1 |
