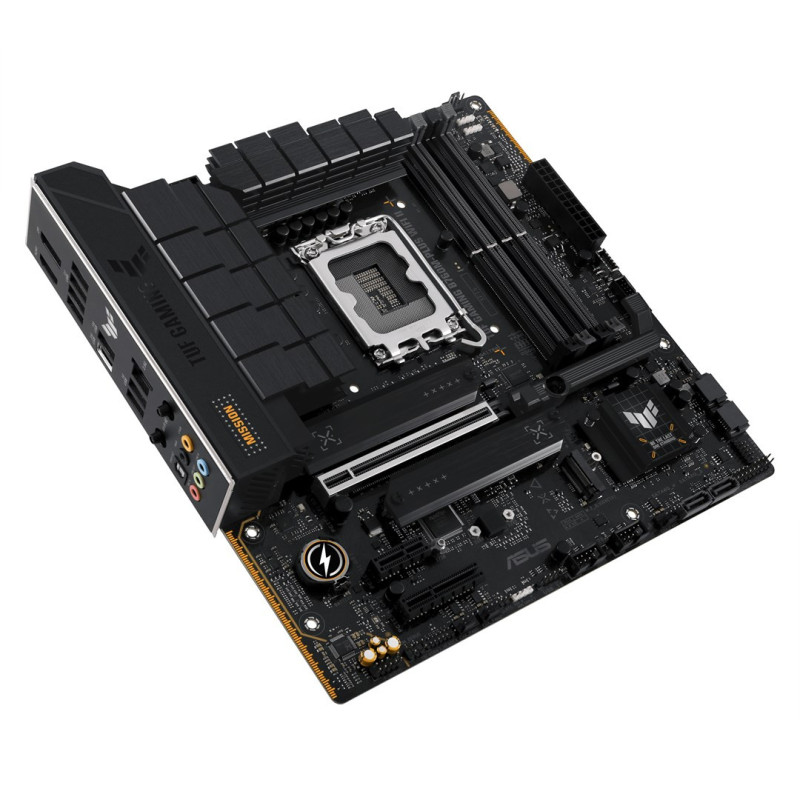

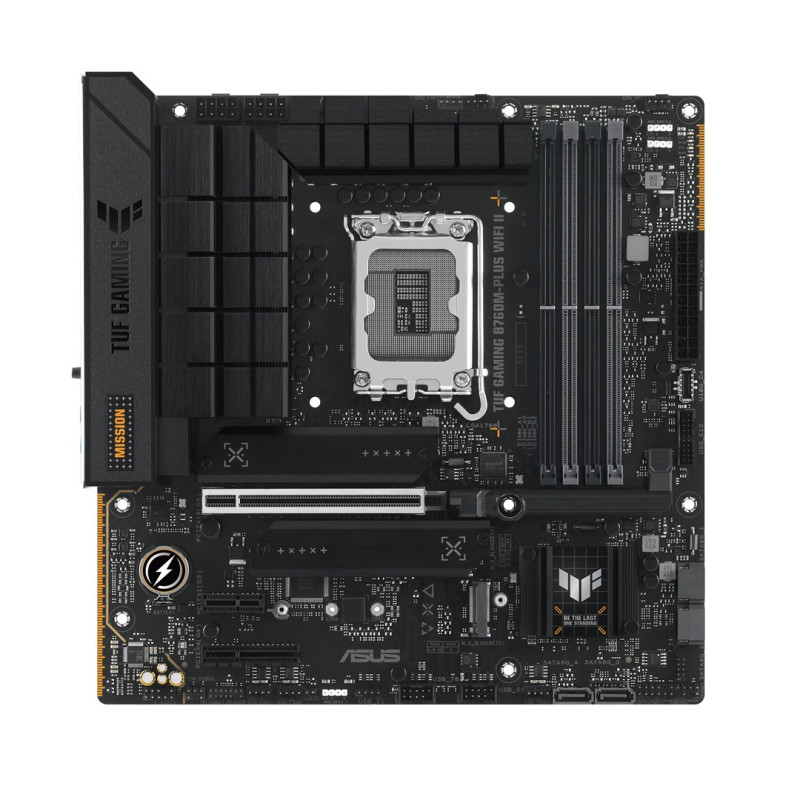

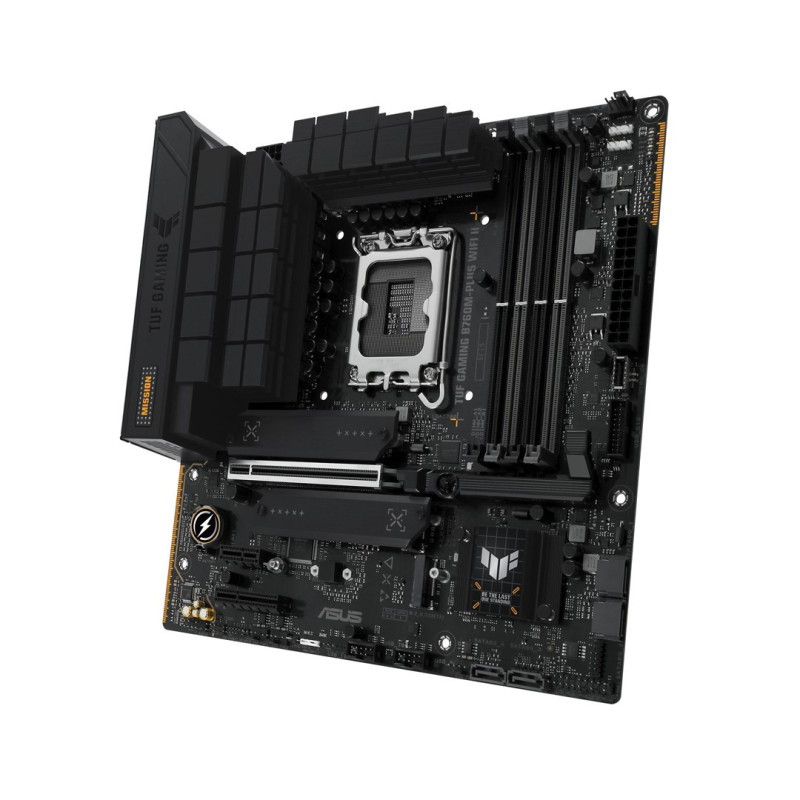

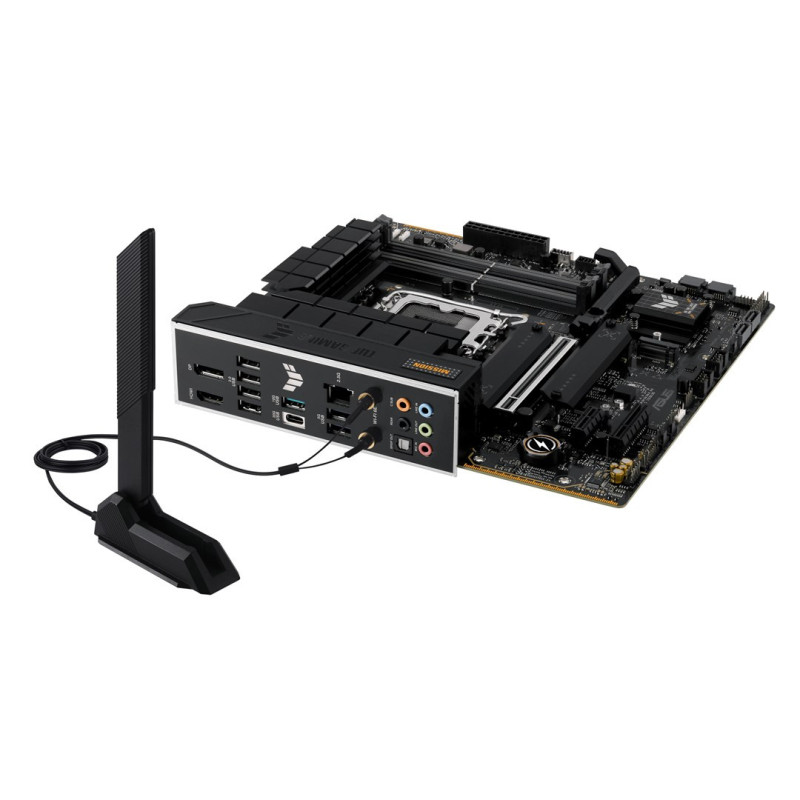

Motherboard - ASUS TUF Gaming B760M-PLUS WiFi II
Product reference:
14-4711387461365
The system delivers excellent performance with custom RGB LED lighting effects, fast M.2 and SATA III data transfers, and USB 3.2 Gen 2 ports.
Motherboard - ASUS TUF Gaming B760M-PLUS WiFi II
Product reference:
14-4711387461365
The system delivers excellent performance with custom RGB LED lighting effects, fast M.2 and SATA III data transfers, and USB 3.2 Gen 2 ports.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
Motherboard - ASUS Tuf Gaming B760m-plus WiFi II
Supports Intel Core i5, i7, i9, Pentium Gold, Celeron and i3 processors with LGA 1700 socket, up to 192GB DDR5 memory and has a 12V power connector for efficient power delivery.
Main features
- UEFI AMI BIOS for modern interface management
- M.2 and SATA III memory interfaces for fast data transfers
- USB 3.2 Gen 2 ports for high-speed data transfer
- RAID support for creating virtual disks from multiple physical disks
Processor | |
|---|---|
| Compatible processor series | Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron® |
| Processor socket | LGA 1700 |
| Processor manufacturer | Intel |
| Supported processor sockets | LGA 1700 |
Graphics | |
| Support for parallel processing technology | Not supported |
Features | |
| Audio output channels | 7.1 channels |
| Motherboard chip | Intel B760 |
| Product color | Black |
| Motherboard format type | micro ATX |
| Power supply type | ATX |
| Cooling type | Passive |
| Motherboard chipset family | Intel |
| Supported Windows operating systems | Windows 10, Windows 11 |
Memory | |
| Unbuffered memory | Yes |
| Supported memory clock speeds | 5800, 5400, 6600, 5200, 6800, 5000, 7000, 6000, 7800 MHz, 5600, 6400, 4800, 6200 |
| Maximum internal memory | 192GB |
| Memory slot type | DIMMs |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory channels | Dual channels |
| Supported memory clock speed (max) | 7800MHz |
Weight and dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
Network | |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Bluetooth version | 5.3 |
Internal I/O | |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) ports | 1 |
| Number of USB 2.0 ports | 3 |
| Housing burglary connector | Yes |
| CPU cooler connector | Yes |
| ATX power connector (24-pin) | Yes |
| Number of chassis cooler connections | 3 |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) ports | 1 |
| Thunderbolt connectors | 1 |
| Number of SATA III connectors | 4 |
| RGB LED pin connector | Yes |
| 12V power connector | Yes |
BIOS | |
| BIOS type | UEFI AMI |
Packaging details | |
| Package width | 275 mm |
| Package depth | 275 mm |
| Package height | 67.5 mm |
| Package weight | 1.65 kg |
Package contents | |
| User manual | Yes |
| Cables included | SATA |
Memory controllers | |
| Supported storage drive types | HDD SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID support | Yes |
| RAID levels | 10, 1, 0, 5 |
| Number of supported storage drives | 7 |
| Number of HDDs supported | 4 |

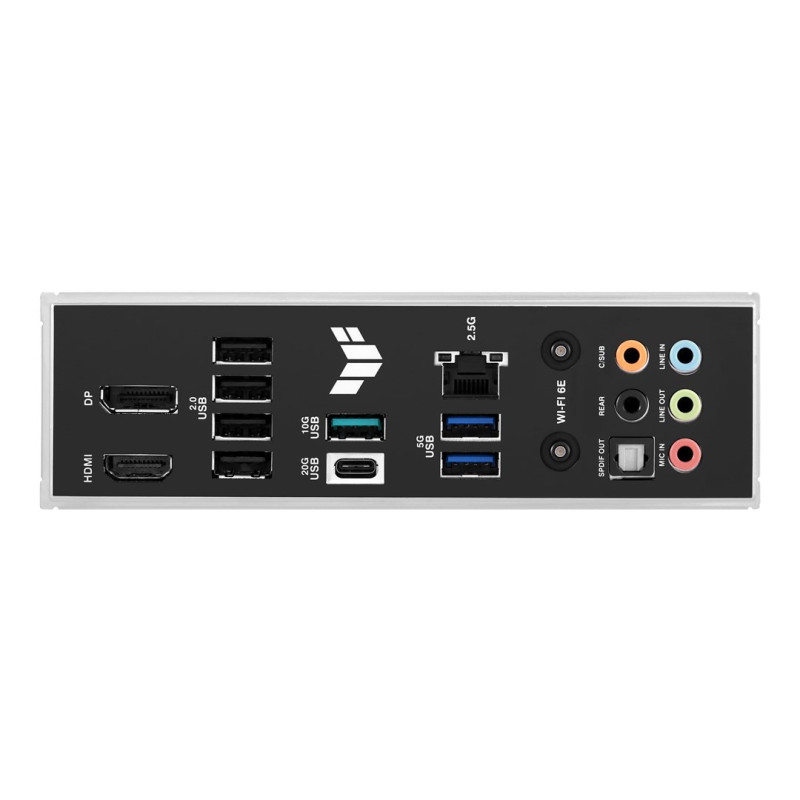

Rear panel I/O connectors | |
| S/PDIF output connector | Yes |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports | 1 |
| Number of HDMI ports | 1 |
| Number of DisplayPort connectors | 1 |
| DisplayPort version | 1.4 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 2 |
| Number of USB 2.0 ports | 4 |
| Microphone input | Yes |
| HDMI version | 2.1 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports | 1 |
| Number of Ethernet LAN (RJ-45) ports | 1 |
| Headphone output | 1 |
| Line-in | Yes |
| WiFi-AP antenna connector | 2 |
Expansion slots | |
| Number of M.2 (M) slots | 3 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x4 (Gen 4.x) slots | 1 |
Other features | |
| Weight | 982 grams |
