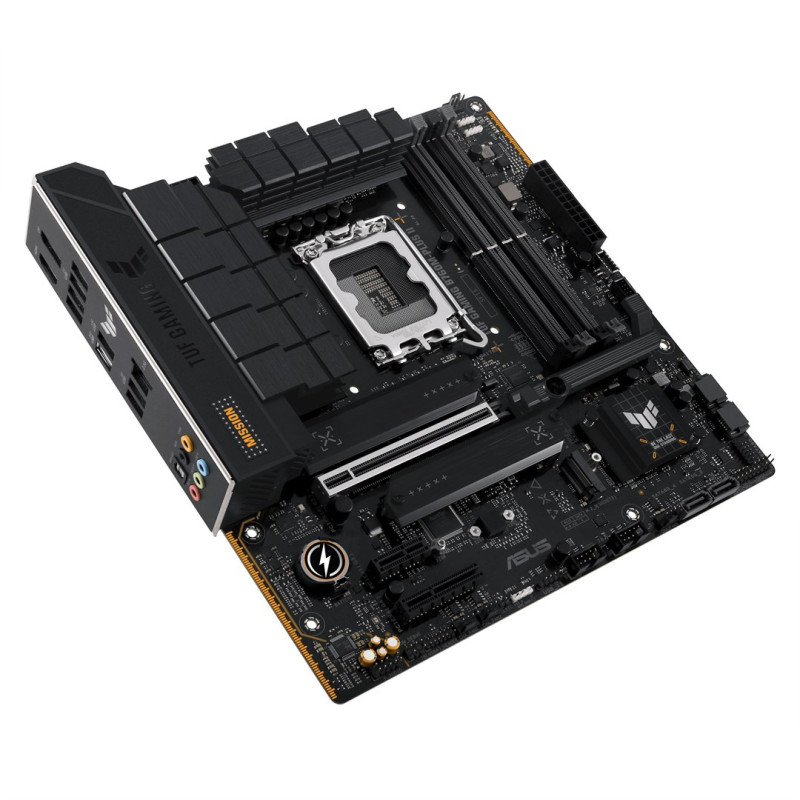

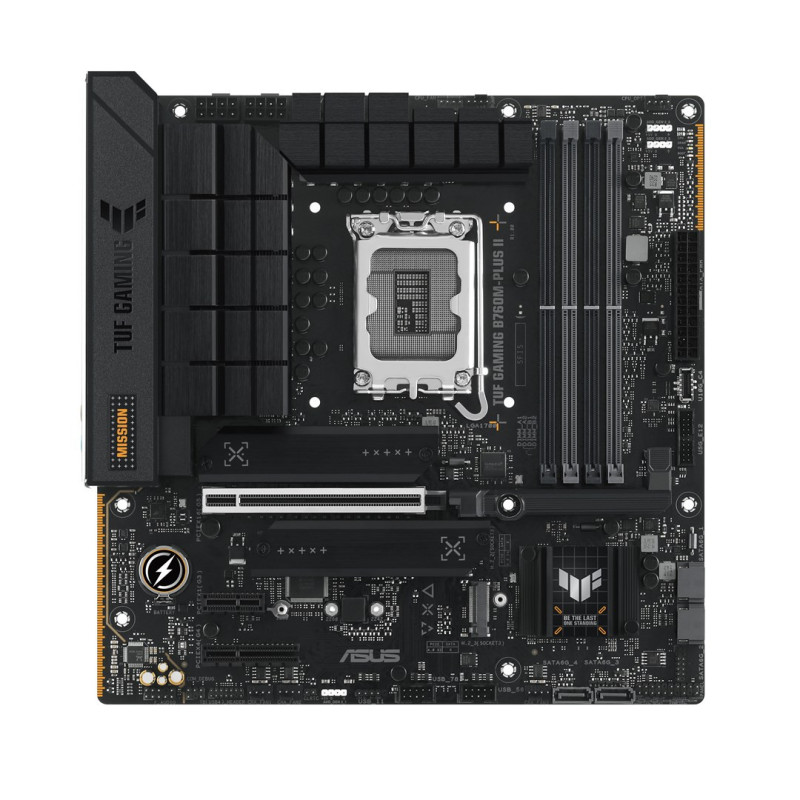

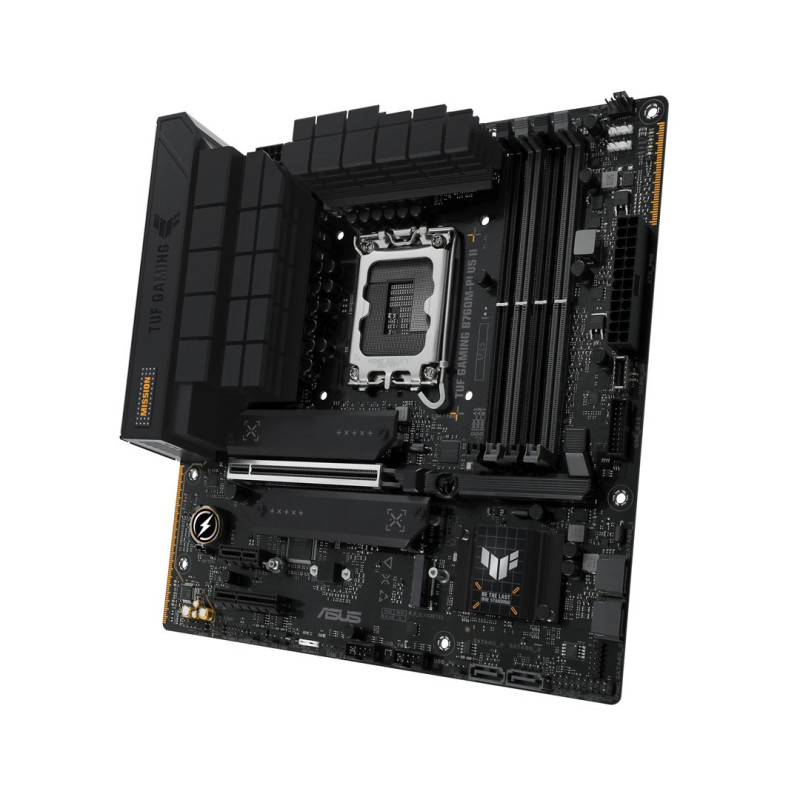

Motherboard - ASUS TUF Gaming B760M-PLUS II Intel B760 LGA 1700 Micro ATX
Product reference:
14-4711387469798
The ASUS TUF GAMING B760M-PLUS II motherboard, supporting 12th generation Intel Core processors, offers dual-channel DDR5 RAM up to 128GB and three M.2 slots for fast storage.
Motherboard - ASUS TUF Gaming B760M-PLUS II Intel B760 LGA 1700 Micro ATX
Product reference:
14-4711387469798
The ASUS TUF GAMING B760M-PLUS II motherboard, supporting 12th generation Intel Core processors, offers dual-channel DDR5 RAM up to 128GB and three M.2 slots for fast storage.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
ASUS TUF Gaming B760M-Plus II Intel B760 LGA 1700 Micro
Micro ATX motherboard supporting 12th generation Intel Core processors with Z790 chipset and up to 192 GB DDR5 RAM. It features a 24-pin ATX power connector, an EPS power connector (8-pin) and 3 case fan headers for efficient cooling.
Main features
- Supports up to 192 GB DDR5 RAM (Dual Channel)
- There are 3 M.2 (M) slots and RAID support with levels 10, 5, 0 and 1
- Includes 1 USB 3.2 Gen 2x2 Type-C port, 1 DisplayPort, 1 HDMI port, and 1 S/PDIF out port
- Supports up to 7 storage devices with UEFI AMI BIOS
Processor | |
|---|---|
| Processor socket | LGA 1700 |
| Processor manufacturer | Intel |
| Supported processor sockets | LGA 1700 |
| Compatible processor models | Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
Graphics | |
| Support for parallel processing technology | Not supported |
Features | |
| Audio output channels | 7.1 channels |
| Motherboard chip | Intel B760 |
| Motherboard format type | micro ATX |
| Motherboard chipset family | Intel |
| Supported Windows operating systems | Windows 11, Windows 10 x64 |
Memory | |
| Supported memory frequency (max) | 7800MHz |
| Supported memory frequencies | 5000, 5800, 4800, 7400, 6800, 7000, 6000, 5200, 6400, 5400, 5600, 7200, 6600, 7600, 7800 MHz, 6200 |
| Maximum internal memory | 192GB |
| Incomplete memory | Yes |
| Number of memory slots | 4 |
| Memory channels | Dual channel |
| Supported memory types | DDR5-SDRAM |
| Memory slot type | DIMMs |
Weight and dimensions | |
| Height | 50mm |
| Width | 244 mm |
| Depth | 244 mm |
Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
Internal I/O | |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Thunderbolt connectors | 1 |
| USB 2.0 ports | 3 |
| Number of SATA III connectors | 4 |
| ATX power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| 12V power connector | Yes |
| Front panel audio connector | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of chassis fan connections | 3 |
| EPS power connector (8-pin) | Yes |
BIOS | |
| BIOS type | UEFI AMI |
Packaging details | |
| Package height | 71 mm |
| Package weight | 1.65 kg |
| Package width | 280mm |
| Package depth | 265 mm |
Package contents | |
| Cables included | SATA |
| Screws included | Yes |
Storage controls | |
| Supported storage device types | HDD SSD |
| RAID support | Yes |
| Supported storage device interfaces | M.2, SATA III |
| RAID levels | 10, 5, 0, 1 |
| Number of supported storage devices | 7 |
| Number of HDDs supported | 4 |

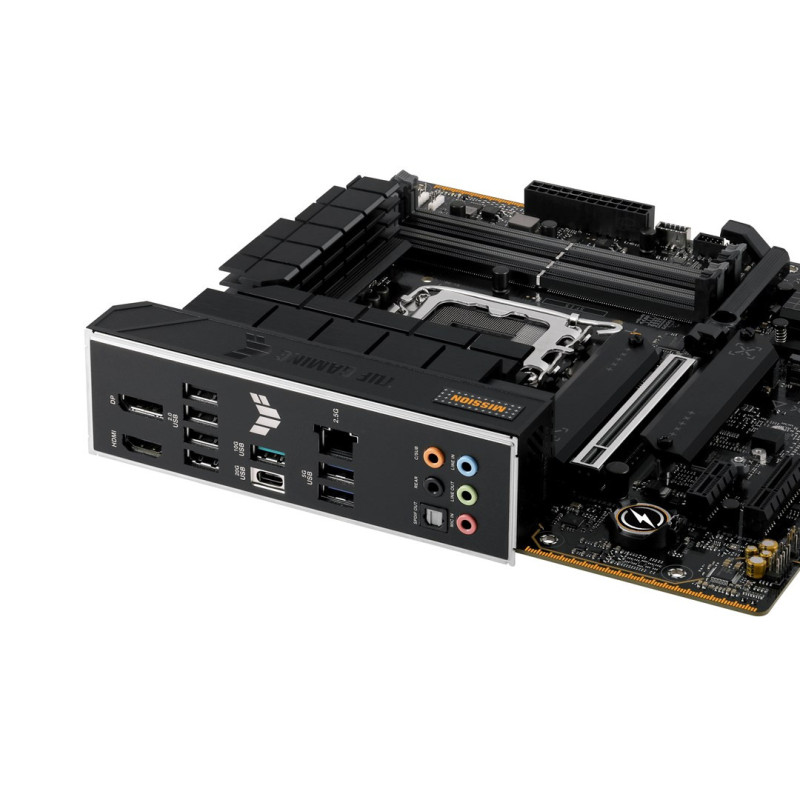

Rear panel I/O ports | |
| Number of USB 3.2 Gen 2x2 Type-C ports | 1 |
| S/PDIF out port | Yes |
| Number of DisplayPorts | 1 |
| Microphone input | Yes |
| Number of USB 2.0 ports | 4 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 2 |
| Number of HDMI ports | 1 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
Expansion slots | |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
| PCI Express x1 (Gen 3.x) slots | 1 |
Other features | |
| Weight | 982 grams |
