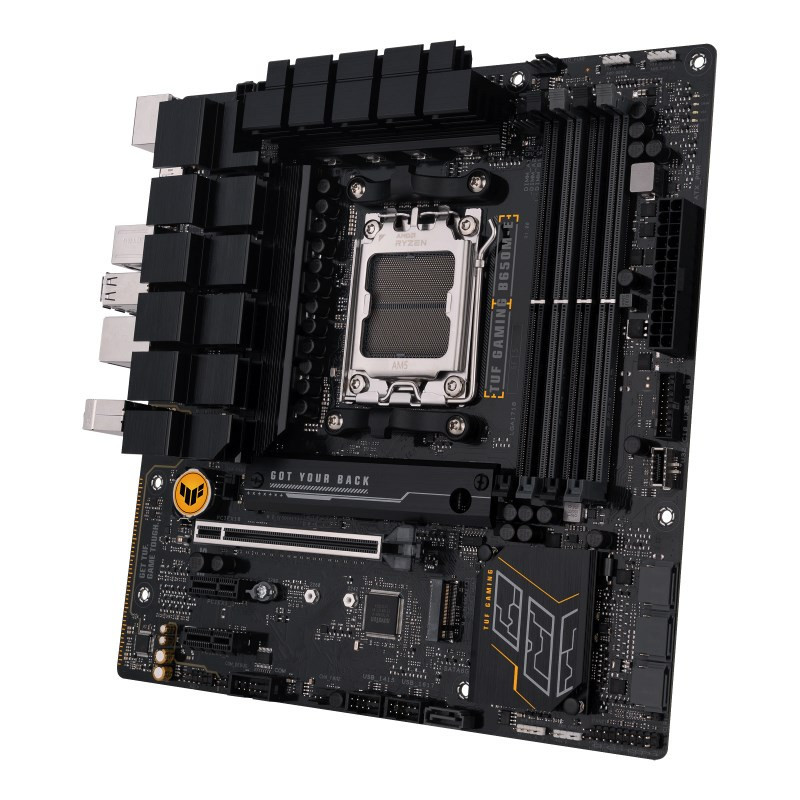

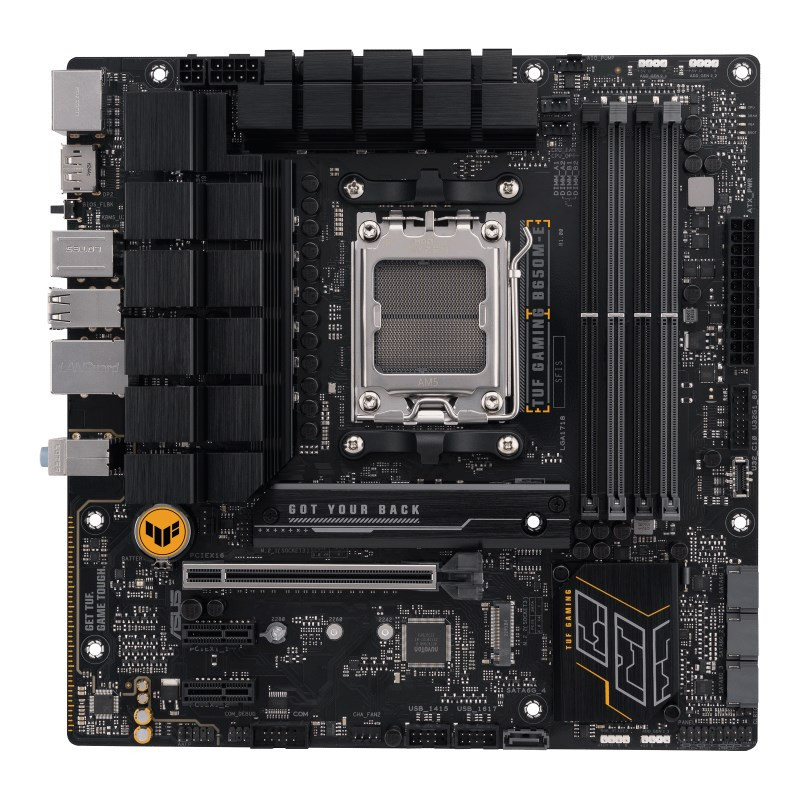

Motherboard - ASUS TUF GAMING B650M-E AMD B650 Socket AM5 micro ATX
Product reference:
14-4711387221969
It supports AMD Ryzen 7000 series processors with AM5 socket and has 4 DIMM slots allowing for up to 128GB of DDR5 memory. The device features 2.5 Gigabit Ethernet, multiple USB ports, and RAID support for storage configurations.
Motherboard - ASUS TUF GAMING B650M-E AMD B650 Socket AM5 micro ATX
Product reference:
14-4711387221969
It supports AMD Ryzen 7000 series processors with AM5 socket and has 4 DIMM slots allowing for up to 128GB of DDR5 memory. The device features 2.5 Gigabit Ethernet, multiple USB ports, and RAID support for storage configurations.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
ASUS TUF Gaming B650M-E AMD B650 Socket AM5 Micro ATX
Compatible with AMD Ryzen 7000 series processors with Socket AM5, it has 4 DIMM slots allowing for up to 128GB of DDR5 memory. The device features 2.5 Gigabit Ethernet, multiple USB ports, and RAID support for storage configurations.
- Makes AMD Ryzen 7000 series processors compatible with Socket AM5.
- Offers high-speed memory support up to 6400 MHz and a maximum capacity of 128 GB.
- Equipped with 7.1 channel audio output, ensuring an immersive gaming experience.
- Offers extensive connectivity options, including multiple USB ports and 2.5 Gigabit Ethernet.
Processor | |
|---|---|
| Processor manufacturer | AMD |
| Composite processor types | AMD Ryzen 7000 series |
| Supported processor sockets | Socket AM5 |
Features | |
| Motherboard chipset | AMD |
| Audio output channels | 7.1 channel |
| Motherboard shape | micro ATX |
| Motherboard chip | AMD B650 |
| Supported Windows operating systems | Windows 11, Windows 10 x64 |
Memory | |
| Unsecured memory | Yes |
| Supported memory clock speeds | 5000, 6400, 5800, 5600, 4800, 6200, 6000, 5200, 5400 |
| ECC compatibility | ECC and Non-ECC |
| Supported memory types | DDR5-SDRAM |
| Memory slot type | DIMMs |
| Number of memory slots | 4 |
| Memory channels | Dual channel |
Weight and dimensions | |
| Depth | 244 mm |
| Width | 244 mm |
Network | |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
Internal I/O | |
| ATX power connector (24-pin) | Yes |
| CPU cooler connector | Yes |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 8 |
| Number of USB 2.0 ports | 2 |
| Number of peripheral (Molex) power connectors (4-pin) | 1 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) ports | 2 |
| Number of chassis cooler connections | 2 |
| Number of COM ports | 1 |
| 12V power connector | Yes |
| RGB LED pin connector | Yes |
| EPS power connector (8-pin) | Yes |
BIOS | |
| BIOS type | UEFI AMI |
Storage controls | |
| RAID support | Yes |
| Supported storage device types | HDDs and SSDs |
| Supported storage device interfaces | M.2, SATA III |
| RAID levels | 1, 10, 0 |
| Number of supported storage devices | 6 |
| Number of HDDs supported | 4 |

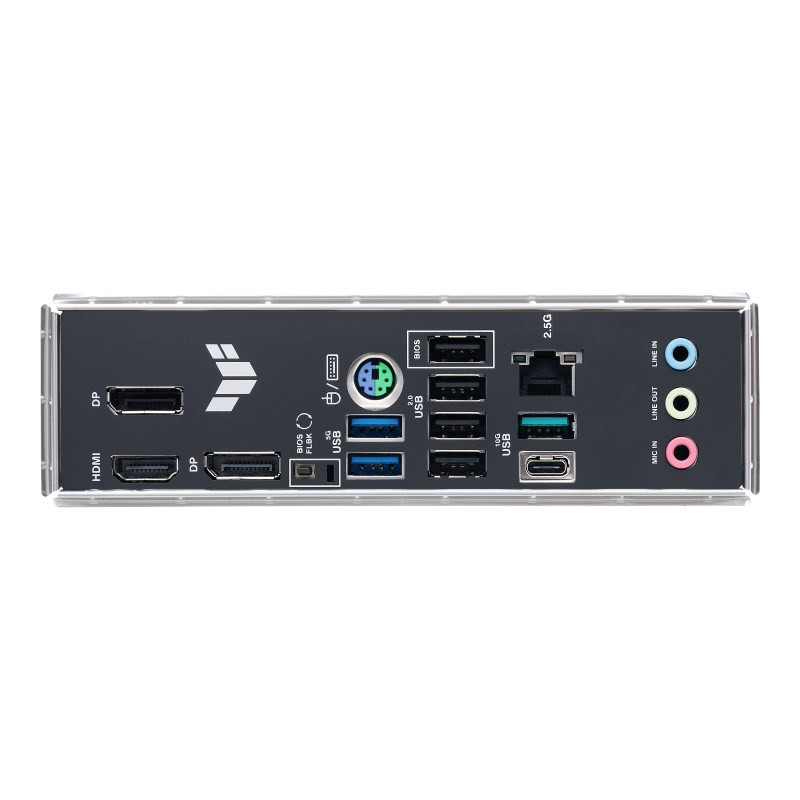

Rear panel I/O ports | |
| Number of DisplayPorts | 2 |
| Number of USB 2.0 ports | 4 |
| Ethernet LAN (RJ-45) port | 1 |
| Headphone output | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A port | 1 |
| Line-in | Yes |
| Number of PS/2 ports | 1 |
| Microphone input | Yes |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 2 |
| Number of HDMI ports | 1 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports | 1 |
Expansion slots | |
| Number of M.2 (M) slots | 2 |
| Number of PCI Express x16 (Gen 4.x) slots | 1 |
| Number of PCI Express x1 (Gen 4.x) slots | 2 |
