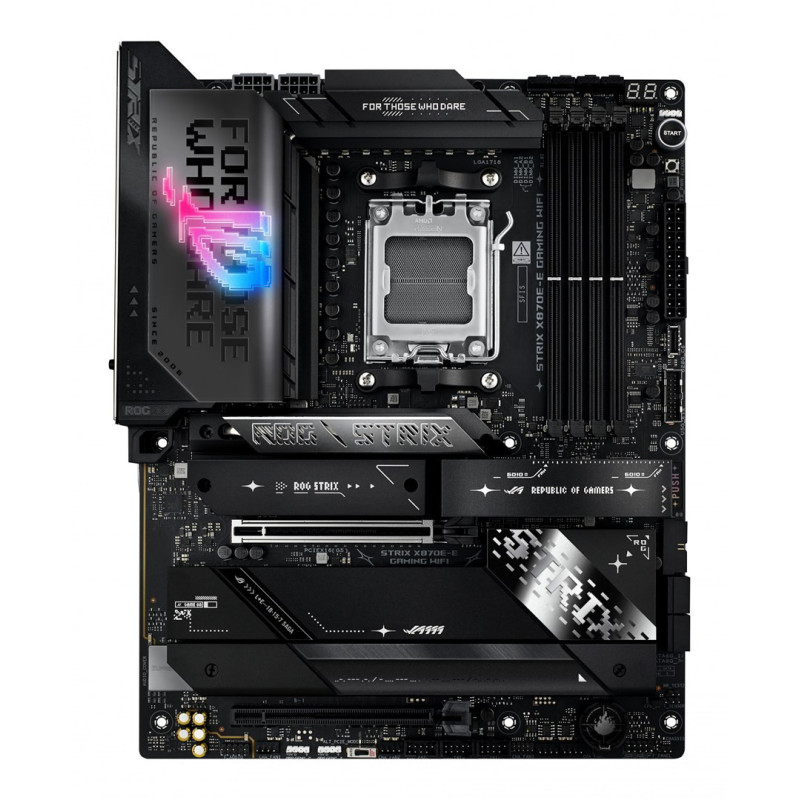

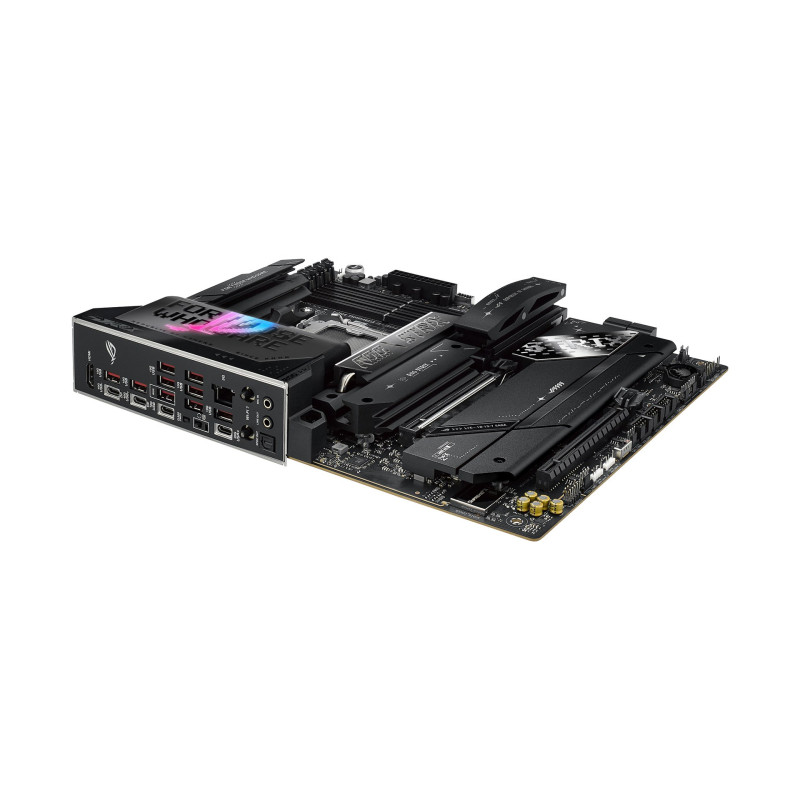

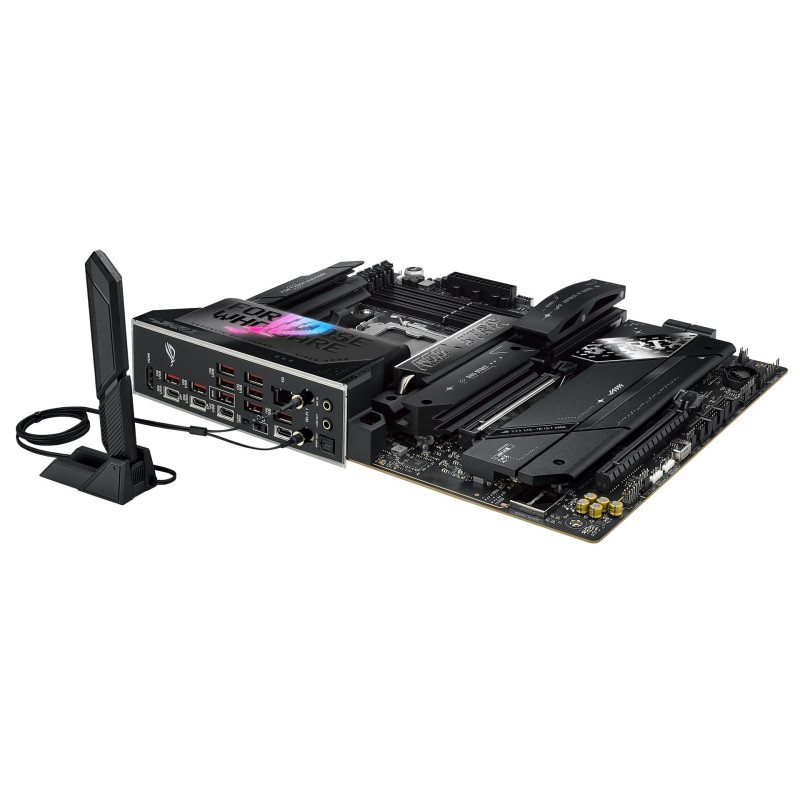

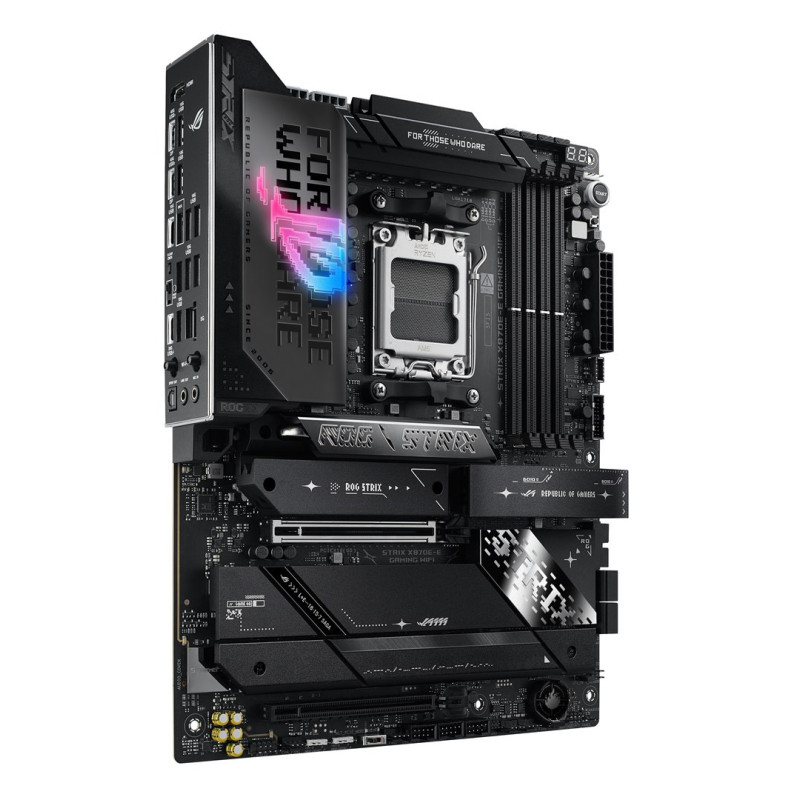

ASUS ROG STRIX X870E-E GAMING WIFI AMD X870E Socket AM5 ATX
Compatible with AMD Socket AM5 processors and up to 192GB of DDR5 memory. Equipped with Wi-Fi 7, 5 M.2 slots and a wide range of USB ports, including USB4 Gen 2x2.
- Compatible with AMD Socket AM5 processors for the highest performance.
- Equipped with Wi-Fi 7 and Bluetooth 5.4, ensuring ultra-fast wireless connectivity.
- 7.1 channel sound system that delivers impressive sound quality.
- Up to 192 GB of DDR5 memory can be used for high-performance computing.
- Supports ECC and Non-ECC memory.
Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor sockets | Socket AM5 |
Graphics | |
| Integrated graphics card | No |
| Support for parallel processing technology | Not supported |
Features | |
| Audio output channels | 7.1 channels |
| Supported Windows operating systems | Windows 11 x64 |
| Motherboard form factor | ATX |
| Product color | Black |
| Motherboard chip | AMD X870E |
| Motherboard chipset family | AMD |
| Audio chip | Realtek ALC4080 |
Memory | |
| Memory channels | Dual channel |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slot type | DIMMs |
| ECC compatibility | ECC and Non-ECC |
| Memory not full | Yes |
| Maximum internal memory | 192GB |
Weight and dimensions | |
| Depth | 244 mm |
| Height | 50mm |
| Width | 305mm |
Network | |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Ethernet interface type | 5 Gigabit Ethernet |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
Internal I/O | |
| 12V power connector | Yes |
| Number of USB 3.2 Gen 2x2 ports | 1 |
| ATX power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| Number of USB 2.0 ports | 3 |
| CPU cooler connector | Yes |
| Number of chassis cooler connections | 5 |
| Number of SATA III connectors | 4 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) ports | 2 |
BIOS | |
| BIOS type | UEFI AMI |
| Clear CMOS button | Yes |
Packaging details | |
| Package weight | 3.02 kg |
| Package depth | 281 mm |
| Package width | 365 mm |
| Package height | 87 mm |

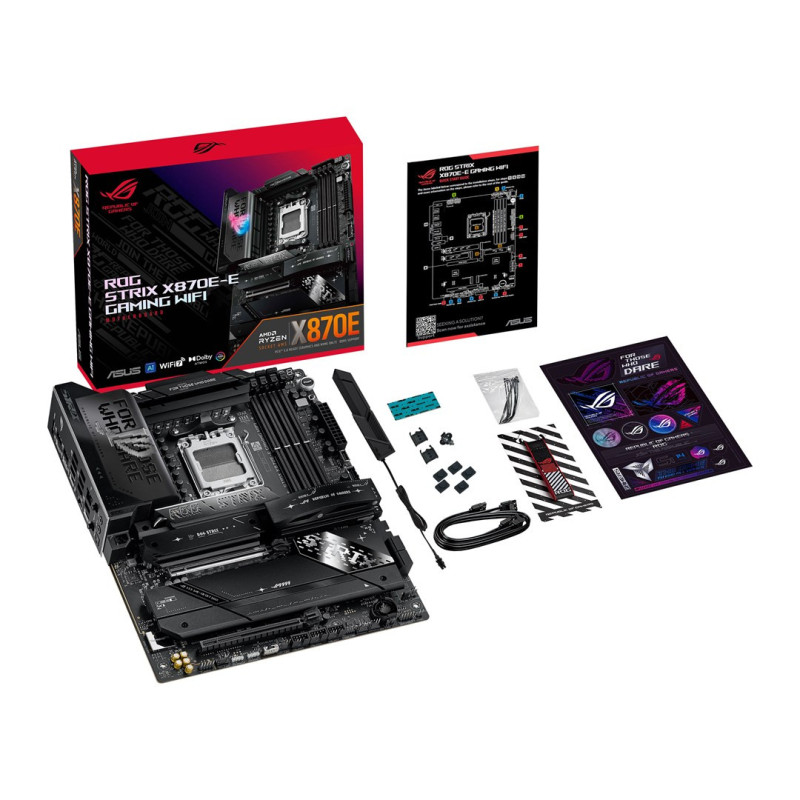

Package contents | |
| Cables included | SATA |
Memory controllers | |
| Number of supported storage drives | 9 |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDDs and SSDs |
| RAID levels | 1, 10, 0, 5 |
| Supported storage drive interfaces | M.2, SATA III |
| RAID support | Yes |
Rear panel I/O ports | |
| Number of USB 3.2 Gen 2x2 Type-C ports | 1 |
| Number of USB4 Gen 2x2 ports | 2 |
| Number of HDMI ports | 1 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports | 1 |
| Microphone input | Yes |
| WiFi-AP antenna connector | 1 |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| S/PDIF out port | Yes |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports | 9 |
Expansion slots | |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 5 |
Other features | |
| Weight | 2.06 kg |
