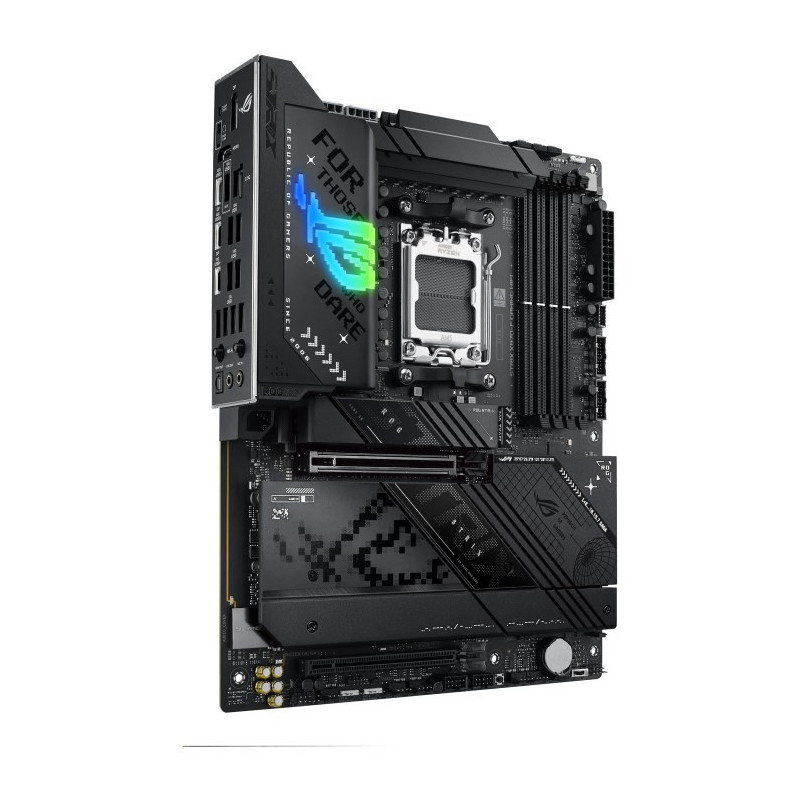

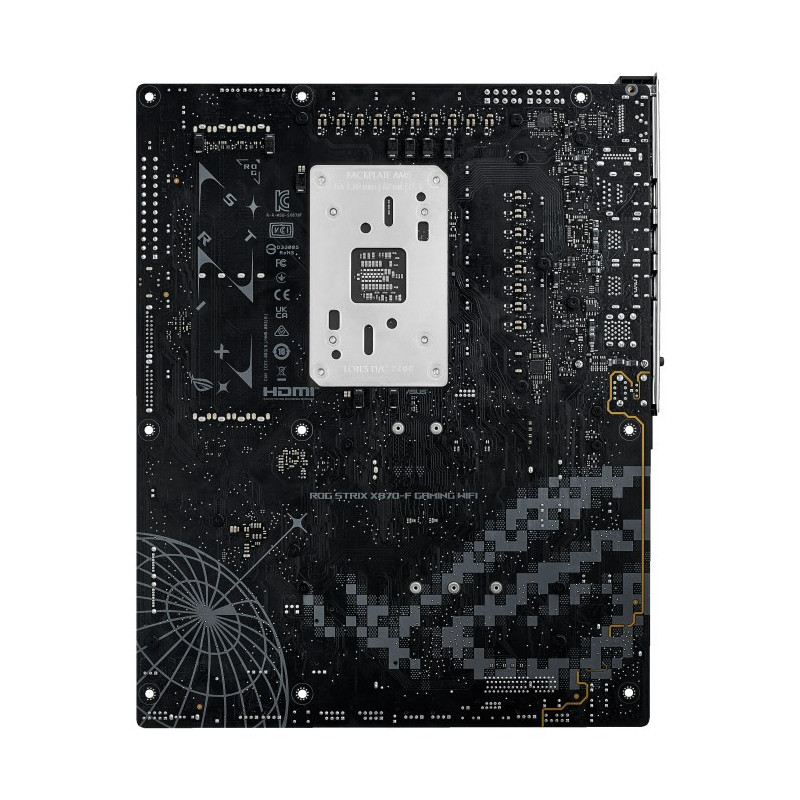

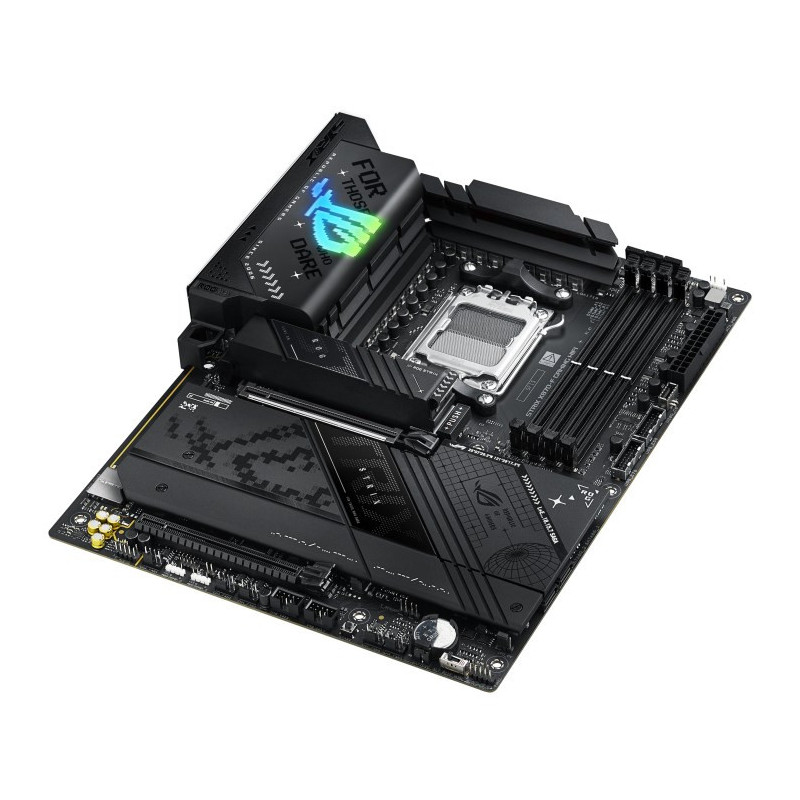

Motherboard - ASUS ROG STRIX X870-F Gaming WiFi AMD X870 Socket AM5 ATX
Product reference:
14-4711387732045
The AMD X870 chipset with AM5 socket supports up to 192GB of DDR5 memory and offers Wi-Fi 7 connectivity. The board has multiple expansion slots, including 4 M.2 slots and 1 PCIe x16 slot, as well as 7.1 channel audio output.
Motherboard - ASUS ROG STRIX X870-F Gaming WiFi AMD X870 Socket AM5 ATX
Product reference:
14-4711387732045
The AMD X870 chipset with AM5 socket supports up to 192GB of DDR5 memory and offers Wi-Fi 7 connectivity. The board has multiple expansion slots, including 4 M.2 slots and 1 PCIe x16 slot, as well as 7.1 channel audio output.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
ASUS ROG STRIX X870-F GAMING WIFI AMD X870 Socket AM5 ATX
The AMD X870 chipset, featuring Socket AM5, supports up to 192GB of DDR5 memory and offers Wi-Fi 7 connectivity. It has multiple expansion slots, including 4 M.2 slots and 1 PCIe x16 slot, as well as 7.1 channel audio output.
- Supports AMD Ryzen 7000, 8000, and 9000 series processors with Socket AM5 for high-quality gaming.
- Equipped with Wi-Fi 7 and Bluetooth 5.4, ensuring ultra-fast wireless connectivity.
- The maximum amount of internal memory is 192 GB with dual-channel DDR5 support, ensuring excellent multitasking.
- Comprehensive I/O options, including multiple USB ports and HDMI, ensure versatile connectivity.
Processor | |
|---|---|
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000, AMD Ryzen 8000, AMD Ryzen 9000 |
| Processor socket | Socket AM5 |
Graphics | |
| Integrated graphics card | No |
Features | |
| Chipset | AMD X870 |
| Product color | Black |
| Microplate format | ATX |
| Chipset family | AMD |
| Supported Windows operating systems | Windows 11 |
| Audio output channels | 7.1 channels |
Memory | |
| Maximum internal memory | 192GB |
| Memory channels | Dual channel |
| Unbuffered memory | Yes |
| Supported memory frequency (max) | 8000MHz |
| Number of memory slots | 4 |
| Memory slot type | DIMMs |
| Supported memory types | DDR5-SDRAM |
| ECC compatibility | ECC Non-ECC |
Weight and dimensions | |
| Width | 305mm |
| Depth | 244 mm |
Network | |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet, 2.5 Gigabit Ethernet, Fast Ethernet |
| Bluetooth version | 5.4 |
| Wi-Fi | Yes |
Internal I/O | |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) ports | 2 |
| Number of SATA III connectors | 2 |
| ATX power connector (24-pin) | Yes |
| CPU cooler connector | Yes |
| Number of chassis cooler connections | 5 |
| Chassis penetration connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| USB 2.0 ports | 2 |
| USB 3.2 Gen 2x2 ports | 1 |
BIOS | |
| Clear CMOS button | Yes |
| BIOS type | UEFI AMI |
Memory controllers | |
| Supported memory media interfaces | M.2, SATA III |
| RAID support | Yes |
| RAID levels | 1, 0, 5, 10 |
| Supported memory media types | HDD SSD |
| Number of supported memory media | 6 |
| Number of HDDs supported | 2 |

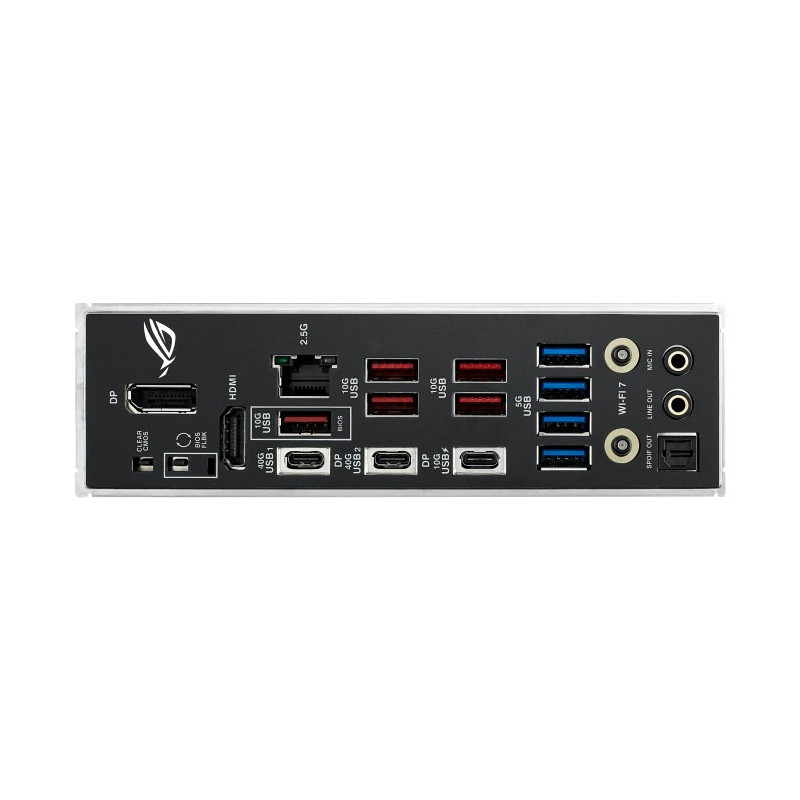

Rear panel I/O ports | |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports | 5 |
| Number of DisplayPort ports | 1 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| S/PDIF out port | Yes |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports | 1 |
| Number of HDMI ports | 1 |
| Number of USB4 Gen 3x2 ports | 2 |
| Microphone input | Yes |
Expansion slots | |
| Number of M.2 (M) slots | 4 |
| Number of PCI Express x16 (Gen 4.x) slots | 1 |
