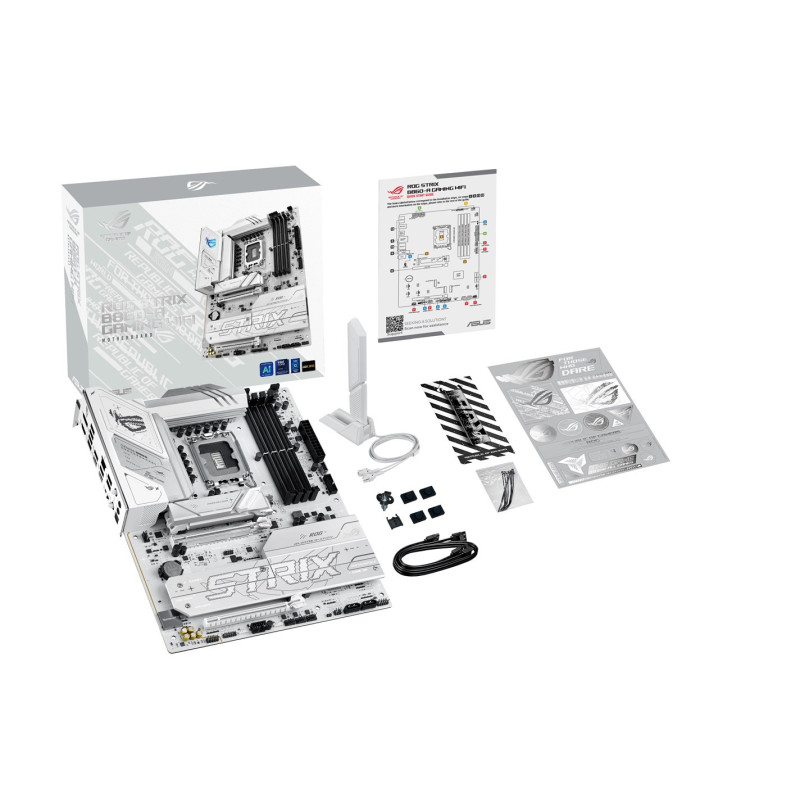

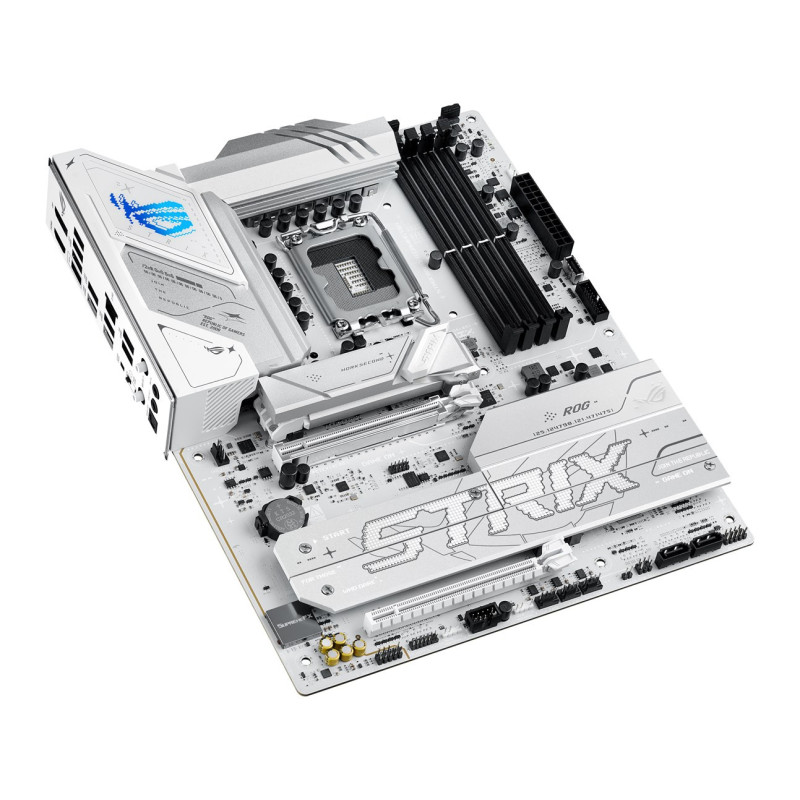

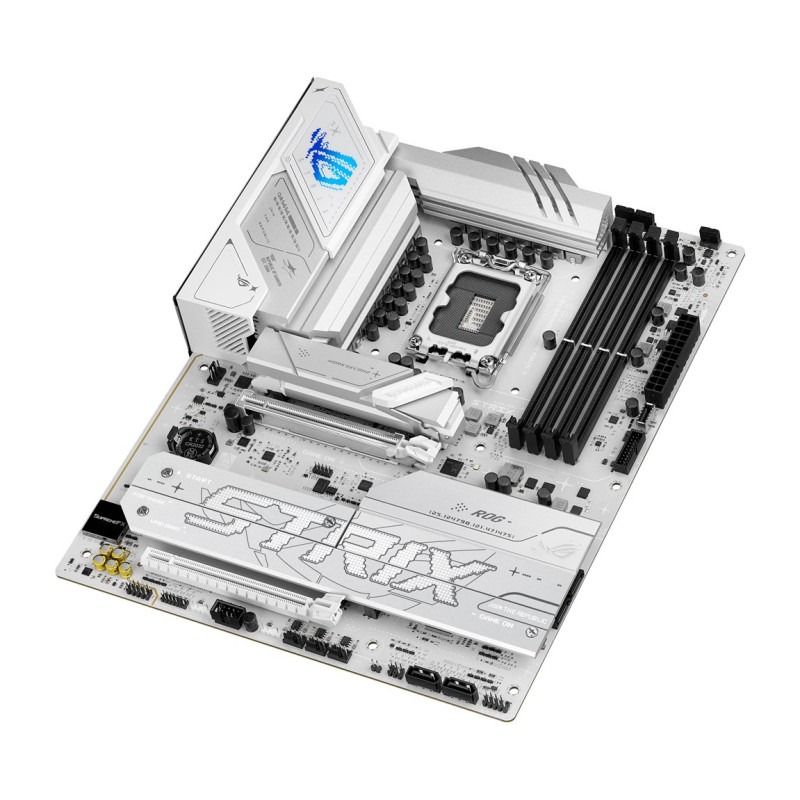

Motherboard - ASUS ROG STRIX B860-A GAMING WIFI Intel B860 LGA 1851 ATX
Product reference:
14-4711387788424
Supports Intel Core Ultra processors with LGA 1851 socket and features the Intel B860 chipset. Offers 4 DIMM slots for DDR5 memory, 2.5 Gigabit Ethernet, Wi-Fi 7, and multiple USB ports.
Motherboard - ASUS ROG STRIX B860-A GAMING WIFI Intel B860 LGA 1851 ATX
Product reference:
14-4711387788424
Supports Intel Core Ultra processors with LGA 1851 socket and features the Intel B860 chipset. Offers 4 DIMM slots for DDR5 memory, 2.5 Gigabit Ethernet, Wi-Fi 7, and multiple USB ports.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Europe in
8 - 9
business days
ASUS ROG STRIX B860-A GAMING WIFI
Compatible with Intel Core Ultra processors with LGA 1851 socket and features the Intel B860 chipset. Features 4 DIMM slots for DDR5 memory, 2.5 Gigabit Ethernet, Wi-Fi 7, and multiple USB ports.
- Enables the use of Intel Core Ultra processors with the LGA 1851 socket, ensuring high-performance computing.
- Equipped with advanced Wi-Fi 7 and 2.5 Gigabit Ethernet, guaranteeing ultra-fast network connectivity.
- With 4 DIMM slots, it supports up to 256GB of DDR5 memory, allowing for improved multitasking.
- Includes comprehensive I/O solutions with multiple USB ports and 7.1 channel audio support.
Processor | |
|---|---|
| Compatible processor series | Intel Core Ultra (2 series) |
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
Features | |
| Motherboard chipset | Intel B860 |
| Component | PC |
| Motherboard format type | ATX |
| Product color | White |
| Sound chip | Realtek ALC1220P |
| Motherboard chipset family | Intel |
| Supported Windows operating systems | Windows 11 |
| Audio output channels | 7.1 channels |
Memory | |
| Number of memory slots | 4 |
| Memory slot type | DIMMs |
| Supported memory types | DDR5-SDRAM |
| Supported memory frequency (max.) | 8600MHz |
| ECC compatibility | Non-ECC |
| Unbuffered memory | Yes |
| Maximum internal memory | 256GB |
Weight and dimensions | |
| Depth | 244 mm |
| Width | 305mm |
| Height | 50mm |
Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth version | 5.4 |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
Internal I/O | |
| 12V power connector | Yes |
| Number of CPU fan connectors | 1 |
| CPU fan connector | Yes |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) ports | 1 |
| Number of USB 2.0 ports | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connections | 4 |
| ATX power connector (24-pin) | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) ports | 1 |
| Thunderbolt connectors | 1 |
BIOS | |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS button | Yes |
Packaging details | |
| Package width | 355mm |
| Package height | 70mm |
| Package depth | 273 mm |
| Package weight | 1.68 kg |
Memory controllers | |
| Number of supported storage drives | 8 |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 10, 1, 5 |
| RAID support | Yes |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDDs and SSDs |

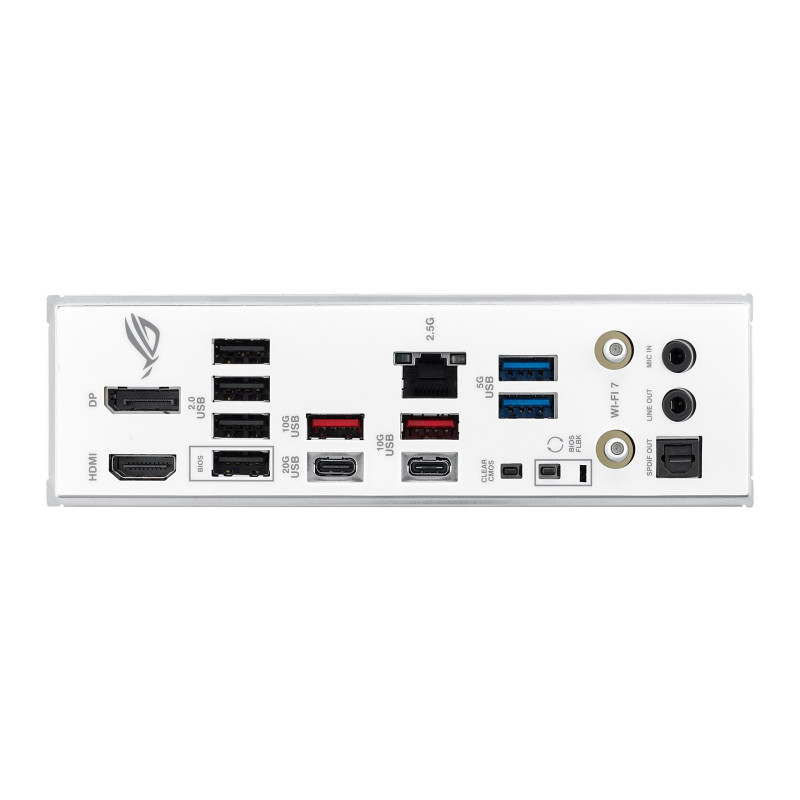

Rear panel I/O ports | |
| Number of USB4 Gen 2x2 ports | 1 |
| Microphone input | Yes |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports | 2 |
| Number of DisplayPort ports | 1 |
| Number of USB 2.0 ports | 4 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports | 1 |
| Number of HDMI ports | 1 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 2 |
| S/PDIF output port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 1 |
Other features | |
| Weight | 1.4 kg |
