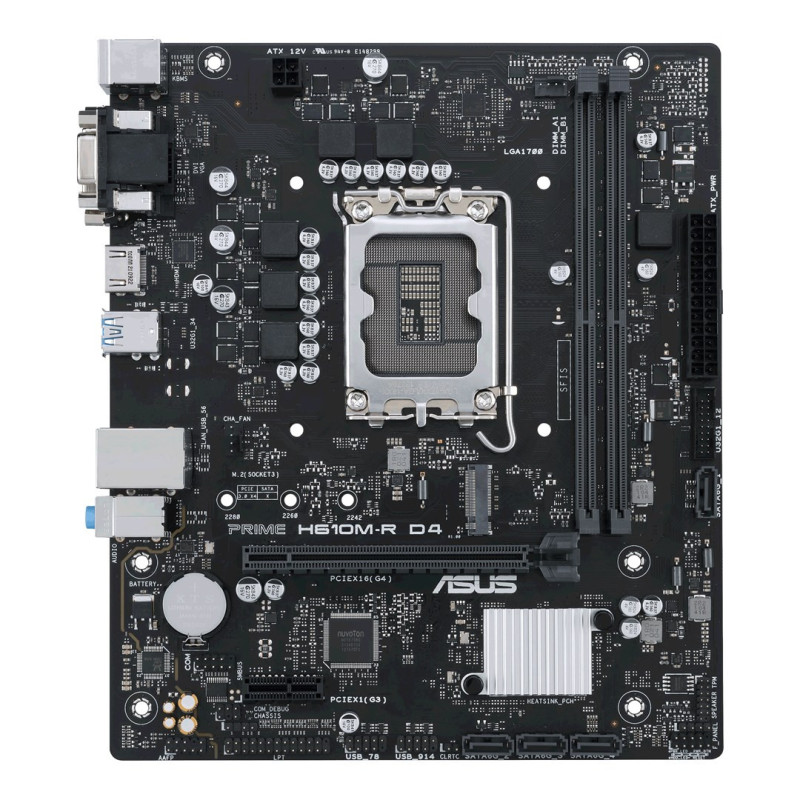

ASUS Prime H610M-R D4 LGA 1700 Micro ATX
The ASUS PRIME H610M-R D4 is a micro ATX motherboard for Intel LGA 1700 processors, supporting up to 16 cores and 64 GB of DDR4 RAM. It features the Intel H610 chipset with integrated GPU and M.2/SATA III storage interfaces.
Main features
- Supports up to 16 processor cores and 64 GB DDR4 RAM
- Integrated Intel H610 chipset with M.2/SATA III storage
- 1 x Ethernet LAN (RJ-45), 2 x USB 2.0 and 2 x USB 3.2 Gen 1 Type-A ports
- Supports up to 5 storage devices
Processor | |
|---|---|
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Core™ i5, Intel® Core™ i3, Intel Pentium G, Intel® Core™ i7, Intel® Core™ i9, Intel® Celeron® |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
Graphics | |
| Support for parallel processing technology | Not supported |
| Maximum resolution | 3840 x 2160 pixels |
Features | |
| Audio output channels | 7.1 channels |
| Motherboard chipset | Intel H610 |
| Motherboard format type | micro ATX |
| Motherboard chipset family | Intel |
| Supported Windows operating systems | Windows 11 x64, Windows 10 x64 |
Memory | |
| Unbuffered memory | Yes |
| Supported memory clock speeds | 2133, 2400, 2666, 2800, 2933, 3000, 3200 MHz |
| Maximum internal memory | 64GB |
| Memory slot type | DIMMs |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual channels |
| Number of memory slots | 2 |
Weight and dimensions | |
| Height | 51 mm |
| Depth | 193 mm |
| Width | 226 mm |
Network | |
| Wake-on-LAN ready | Yes |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
Internal I/O | |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 4 |
| Number of USB 2.0 ports | 2 |
| ATX power connector (24-pin) | Yes |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) ports | 1 |
| CPU cooler connector | Yes |
| Number of chassis cooler connections | 1 |
| Number of COM ports | 1 |
| Housing break-in connector | Yes |
| TPM connector | Yes |
| 12V power connector | Yes |
| Audio connector | Yes |
BIOS | |
| Clear CMOS switch | Yes |
| BIOS type | UEFI AMI |
Package contents | |
| Cables included | SATA |
| Add drivers | Yes |
Memory controllers | |
| Supported storage device types | HDD SSD |
| Supported memory device interfaces | M.2, SATA III |
| Number of supported storage devices | 5 |
Rear panel I/O ports | |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of USB 2.0 ports | 2 |
| USB connection type | USB Type-A |
| Microphone input | Yes |
| Number of PS/2 ports | 2 |
| Number of DVI-D ports | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 3 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 2 |
| Number of HDMI ports | 1 |
| Number of VGA (D-Sub) ports | 1 |
Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
Other features | |
| Weight | 842 grams |
Logistics data | |
| Harmonized System (HS) code | 84733020 |
| | |
